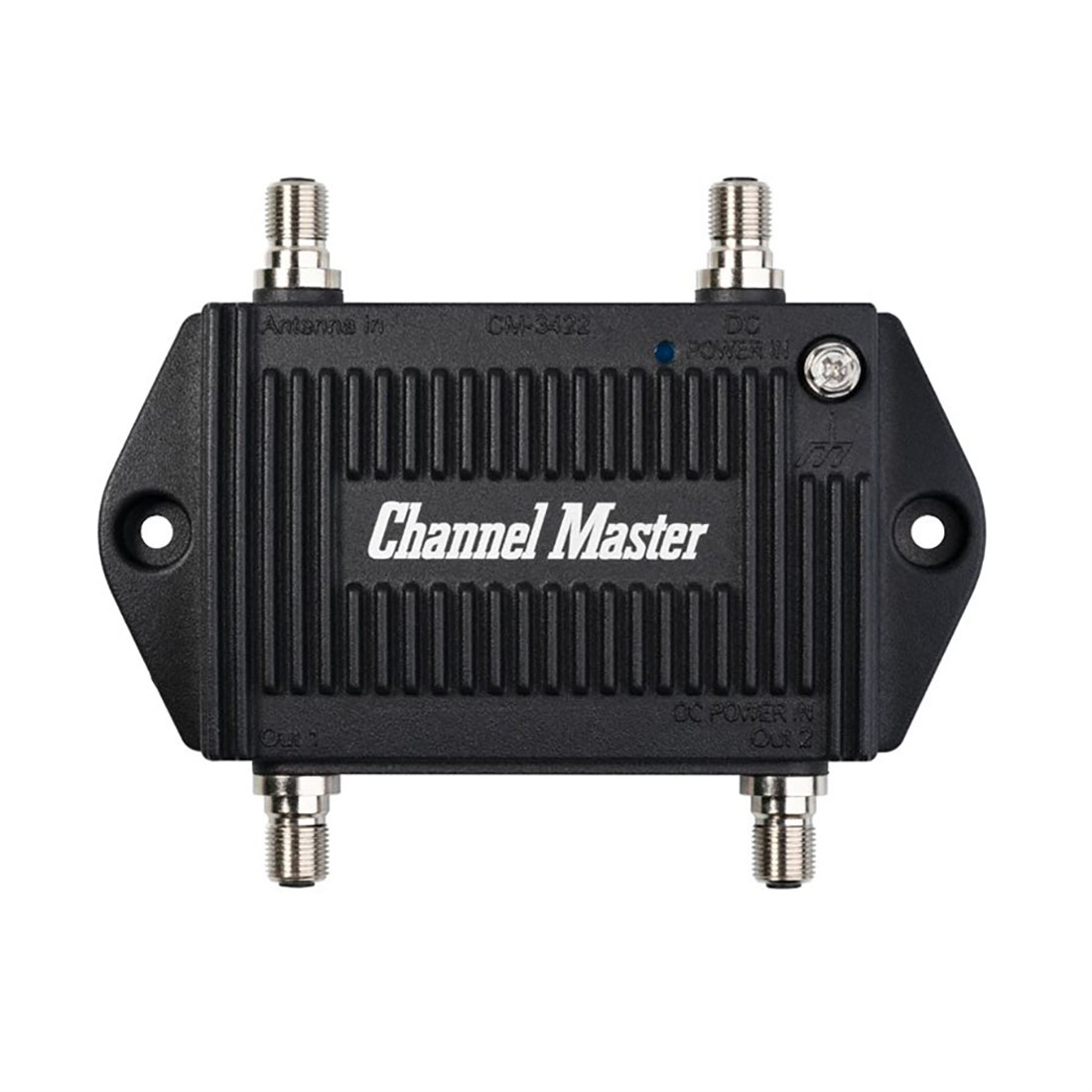

Channel Master TV Antenna Booster 2, 2 port output for off air, 11.5dB per output, 54mhz to 608mhz

Channel Master TV Antenna Booster 2, 2 port output for off air, 11.5dB per output, 54mhz to 608mhz
MSRP: $59.00
Manufacturer: Channel Master
SKU: CM-3422

Features

  • Two amplified output ports
  • Splits TV antenna to two rooms while boosting signals
  • Designed and optimized exclusively for TV antennas
  • Built-in out-of-band filters including FM and 4G/5G signals (600 Mhz)
  • Passive signal backup-passes signal without amplification during loss of power
  • Heavy duty all-metal housing
  • Powder coated and weather sealed housing for superior corrosion protection
  • Excellent surge withstand capability
  • Compatible with all TV antennas
  • Supports digital broadcast and HD signals
  • Supports ATSC 3.0, NextGen TV and 4K broadcast when available

What's in the Box

  • TV antenna booster 2 distribution amplifier
  • Power adapter
  • Coaxial cable
  • User guide
  • 1-year limited warranty

Specs

Power Supply Input Voltage110-240v, AC ~ 50/60Hz, 200mA (Max)
Power Supply Output Voltage+13.2v DC, 500mA, 6.6W (Max)
Frequency Bandpass54-88MHz, 174-216MHz, 470-608MHz
Gain+11.5dB per output
Noise FigureTypically less than 2dB
Max Input Level10dBmv
Max Output Level21.5dBmv



Dimensions

Size4.25” x 5.25” x 1.0”
Shipping Size8.0” x 4.5” x 2.5”
Weight9.5 oz.
Shipping Weight1.25 lbs.



Features

  • Two amplified output ports
  • Splits TV antenna to two rooms while boosting signals
  • Designed and optimized exclusively for TV antennas
  • Built-in out-of-band filters including FM and 4G/5G signals (600 Mhz)
  • Passive signal backup-passes signal without amplification during loss of power
  • Heavy duty all-metal housing
  • Powder coated and weather sealed housing for superior corrosion protection
  • Excellent surge withstand capability
  • Compatible with all TV antennas
  • Supports digital broadcast and HD signals
  • Supports ATSC 3.0, NextGen TV and 4K broadcast when available

What's in the Box

  • TV antenna booster 2 distribution amplifier
  • Power adapter
  • Coaxial cable
  • User guide
  • 1-year limited warranty

Customers who bought this item also bought
Picture of PAC Ground Loop Noise Isolator

PAC Ground Loop Noise Isolator

SNI-1
PAC Ground Loop Noise Isolator
MSRP: $19.00
Picture of Audiovox SiriusXM Connect Vehicle Tuner Kit

Audiovox SiriusXM Connect Vehicle Tuner Kit

SXV300V1
Audiovox SiriusXM Connect Vehicle Tuner Kit
MSRP: $79.99
Picture of PAC 12" USB Dash Mount Adapter for USB Cable

PAC 12" USB Dash Mount Adapter for USB Cable

USBDMA1
PAC 12" USB Dash Mount Adapter for USB Cable
MSRP: $29.00
Picture of Sony 6.95” Apple CarPlay/Android Auto Digital Media Receiver

Sony 6.95” Apple CarPlay/Android Auto Digital Media Receiver

XAVAX3200
MSRP: $399.99

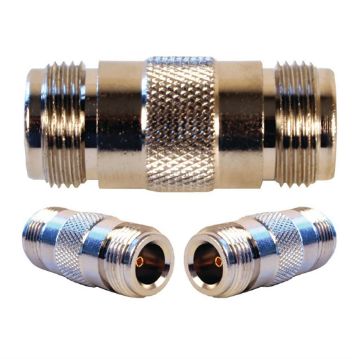

Picture of weBoost N-Female to N-Female Barrell Connector
