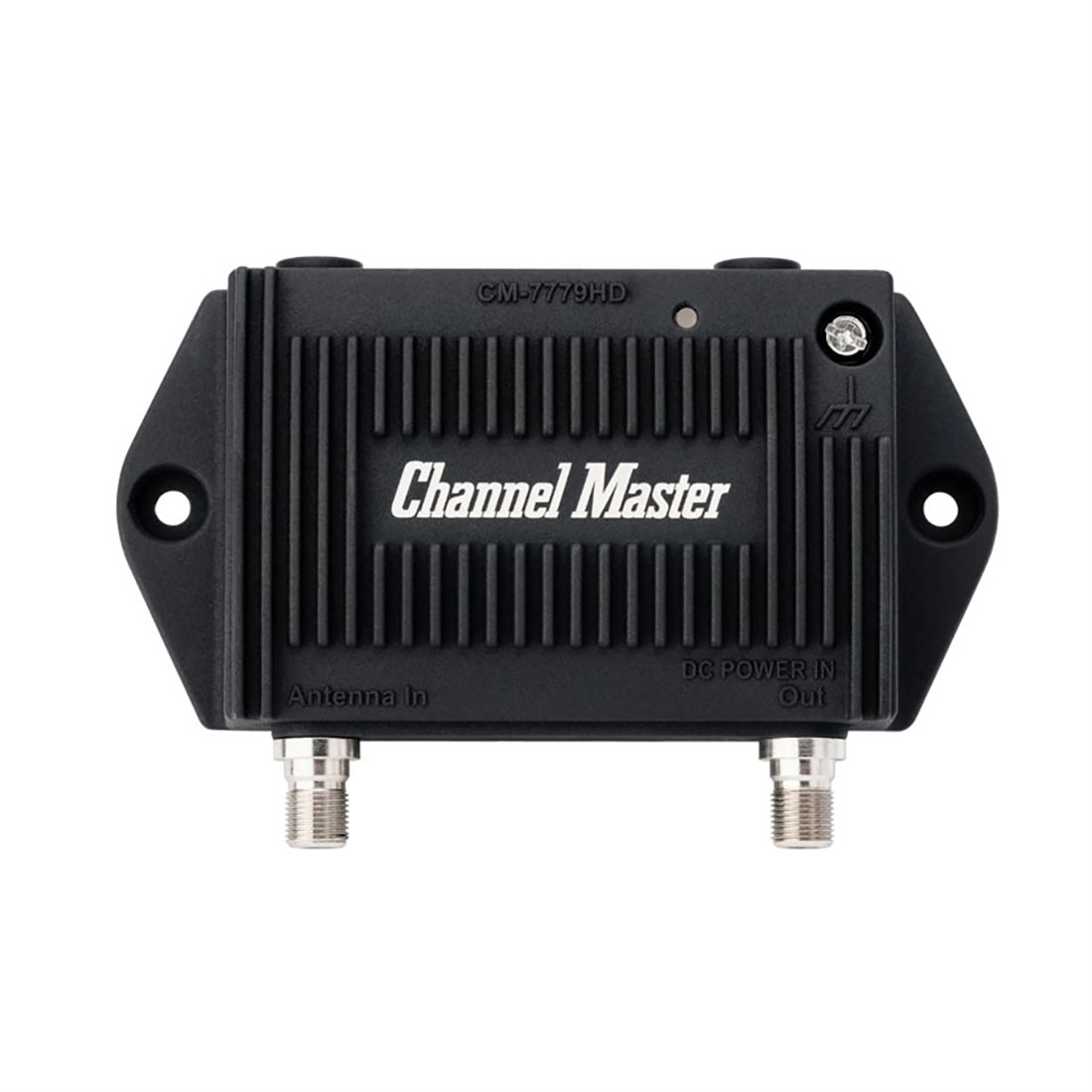

Channel Master Titan 2 Adjustable Gain (17 dB/30 dB) Preamplifier w/ LTE Filter

Channel Master Titan 2 Adjustable Gain (17 dB/30 dB) Preamplifier w/ LTE Filter
MSRP: $89.00
Manufacturer: Channel Master
SKU: 7779HD

Features

  • Improves Signal Quality
  • Decreases Pixelation
  • May Increase Number of Channels
  • Ultra-Low Noise
  • Adjustable Gain (17 dB/30 dB)
  • Blocks LTE Interference from 3G/4G/5G Smartphones and Transmitters
  • EMI & FM Out of Band Filtering (Does Not Pass FM Signals)
  • Will Support ATSC 3.0, NextGen TV, and 4K Broadcast when Available
  • Housing Offers RF Shielding for Reducing Interference
  • Heavy-Duty Rated for Indoor or Outdoor Use
  • Mast Mounted for Close Proximity to Antenna

Specs

Impedance (Input and Output)75 Ohm
ConnectorF-type
Frequency Range54MHz~88MHz,174MHz-260MHz,470MHz~608MHz
Gain+30dB (High) / +17dB (Low)
Noise FigureTypically Less than 2dB
UL ListedYes
RoHS CompliantYes
Input Return Loss<-12
Output Return Loss<-12
Max Input Level 18 (High) 10 (Low) dBmV
Max Output Level34 dBmV
FM Trap88MHz; >2dB, 95-108 MHz; >14dB
Power Consumption<3W
Operating Temperature-40 C to +60 C



Dimensions

Size4.25” x 5.25” x 1”
Weight9.5 oz
Shipping Size8” x 4.5” x 2.5”
Shipping Weight1.75 lb.



Features

  • Improves Signal Quality
  • Decreases Pixelation
  • May Increase Number of Channels
  • Ultra-Low Noise
  • Adjustable Gain (17 dB/30 dB)
  • Blocks LTE Interference from 3G/4G/5G Smartphones and Transmitters
  • EMI & FM Out of Band Filtering (Does Not Pass FM Signals)
  • Will Support ATSC 3.0, NextGen TV, and 4K Broadcast when Available
  • Housing Offers RF Shielding for Reducing Interference
  • Heavy-Duty Rated for Indoor or Outdoor Use
  • Mast Mounted for Close Proximity to Antenna
