Axxess GM Ethernet DSPX Package 19-Up

Name: Axxess GM Ethernet DSPX Package 19-Up
SKU: AXDSPX-ETH1
Availability: InStock

Overcome the factory radio’s built-in “audio processing” with Axxess's patented digital signal processor, or “DSP”, vehicle-specific packages. Factory radios have built-in sound processing designed to make your mass-produced factory speakers sound as good as they can without breaking. This means that if you upgrade to aftermarket speakers, your factory radio will process the sound according to the factory settings and your system just won’t sound as great as you hoped it would.

MSRP: $613.99

Manufacturer: Axxess

SKU: AXDSPX-ETH1

Overview
Specifications
Attachments

Features

Digital Signal Processor and T-harness
ETH1 harness is compatible with select GM vehicles with Bose factory amplifier years 2019 and up
Provides the ability to add aftermarket amplifiers then tune your system
Includes 6 inputs, 10 individually assignable output channels
Adjustable settings through a tablet or smartphone using the AXDSP-X app
Channel features include: 31 band graphic EQ, high pass, low pass, and bandpass filters, time delay up to 10ms
Includes a bass knob
Retains chime control, plus Sync® and OnStar® features
One year warranty

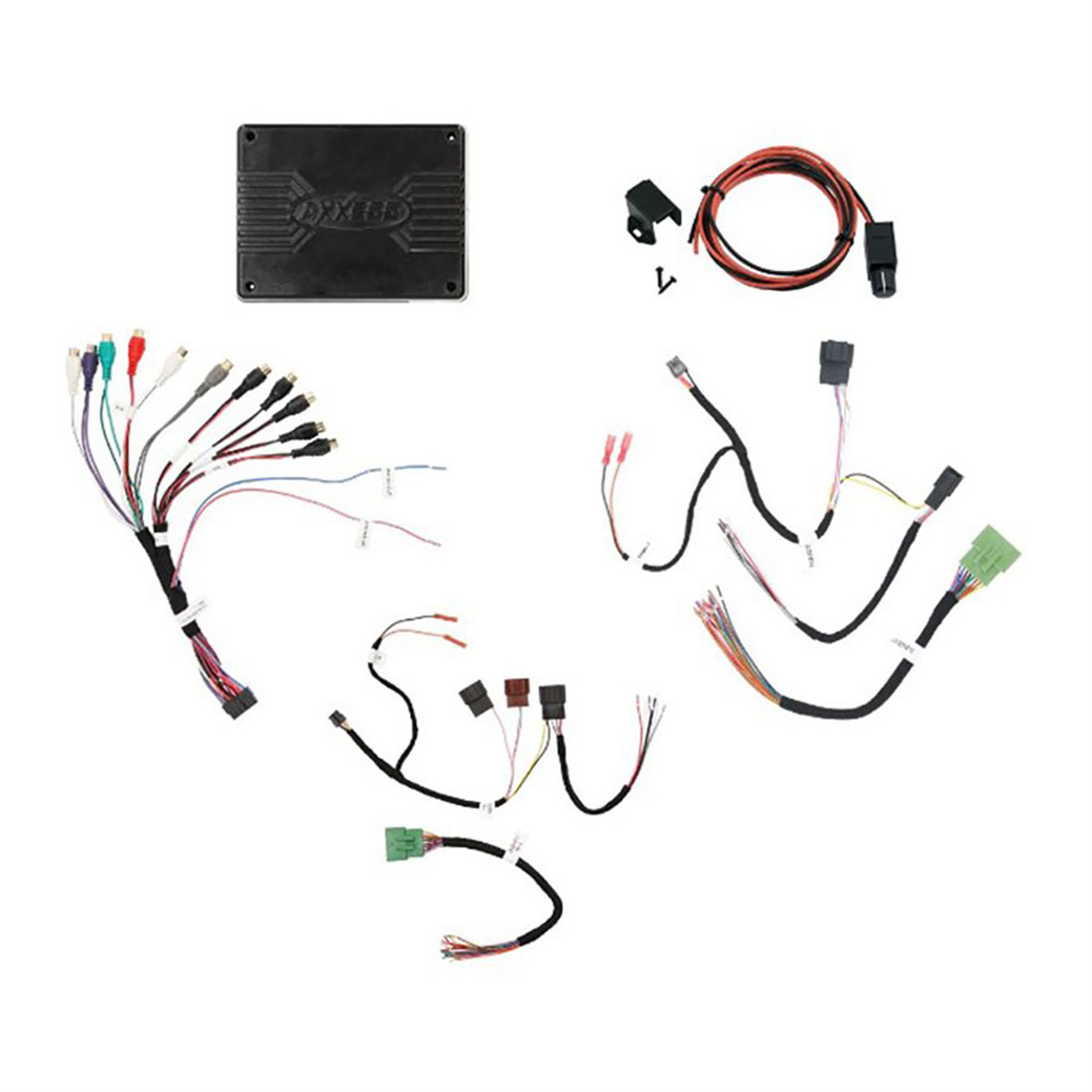

What’s in the Box

DSP Interface module
LD-DSP-ETH1 16-Pin harness
LD-DSP-ETH1 8-Pin harness
LD-DSP-ETH2 16-Pin harness
LD-DSP-ETH2 8-Pin harness
16-Pin Output harness (11 female RCAs / 2 bare-ended wires)
Remote bass control (attached 5' bare-ended red/black wires)
Bass control mounting bracket
Two 8mm screws
Instruction manual

Specs

Input Channels	6
Input Impedance	1MΩ
Input Level	high or low
Input Type	differential balanced
Input Voltage High Level	0-28V (peak-to-peak)
Input Voltage Low Level	0.4.9V (peak-to-peak)
Output Channels	10
Output Voltage	Up to 5V RMS
Output Impedance	50Ω
Equalizer Type	31 band graphic, ±10dB
THD	<0.03%
Frequency Response	20-20k Hz
Crossover	LPF, BPF, or HPF per channel
Crossover Type	Linkwitz-Riley 24dB/oct. slope
Sampling	48k Hz
S/N Ratio	105dB @ 5V RMS
Operating Voltage	10-16VDC
Operation Current Draw	150mA
Standby Current Draw	7mA

Dimensions

Module Dimensions (H x W x D)

1” x 2.1875” x 2.1875”

Product Files

MANUALS

AXDSPX-ETH1 Manual

Features

Digital Signal Processor and T-harness
ETH1 harness is compatible with select GM vehicles with Bose factory amplifier years 2019 and up
Provides the ability to add aftermarket amplifiers then tune your system
Includes 6 inputs, 10 individually assignable output channels
Adjustable settings through a tablet or smartphone using the AXDSP-X app
Channel features include: 31 band graphic EQ, high pass, low pass, and bandpass filters, time delay up to 10ms
Includes a bass knob
Retains chime control, plus Sync® and OnStar® features
One year warranty

What’s in the Box

DSP Interface module
LD-DSP-ETH1 16-Pin harness
LD-DSP-ETH1 8-Pin harness
LD-DSP-ETH2 16-Pin harness
LD-DSP-ETH2 8-Pin harness
16-Pin Output harness (11 female RCAs / 2 bare-ended wires)
Remote bass control (attached 5' bare-ended red/black wires)
Bass control mounting bracket
Two 8mm screws
Instruction manual
