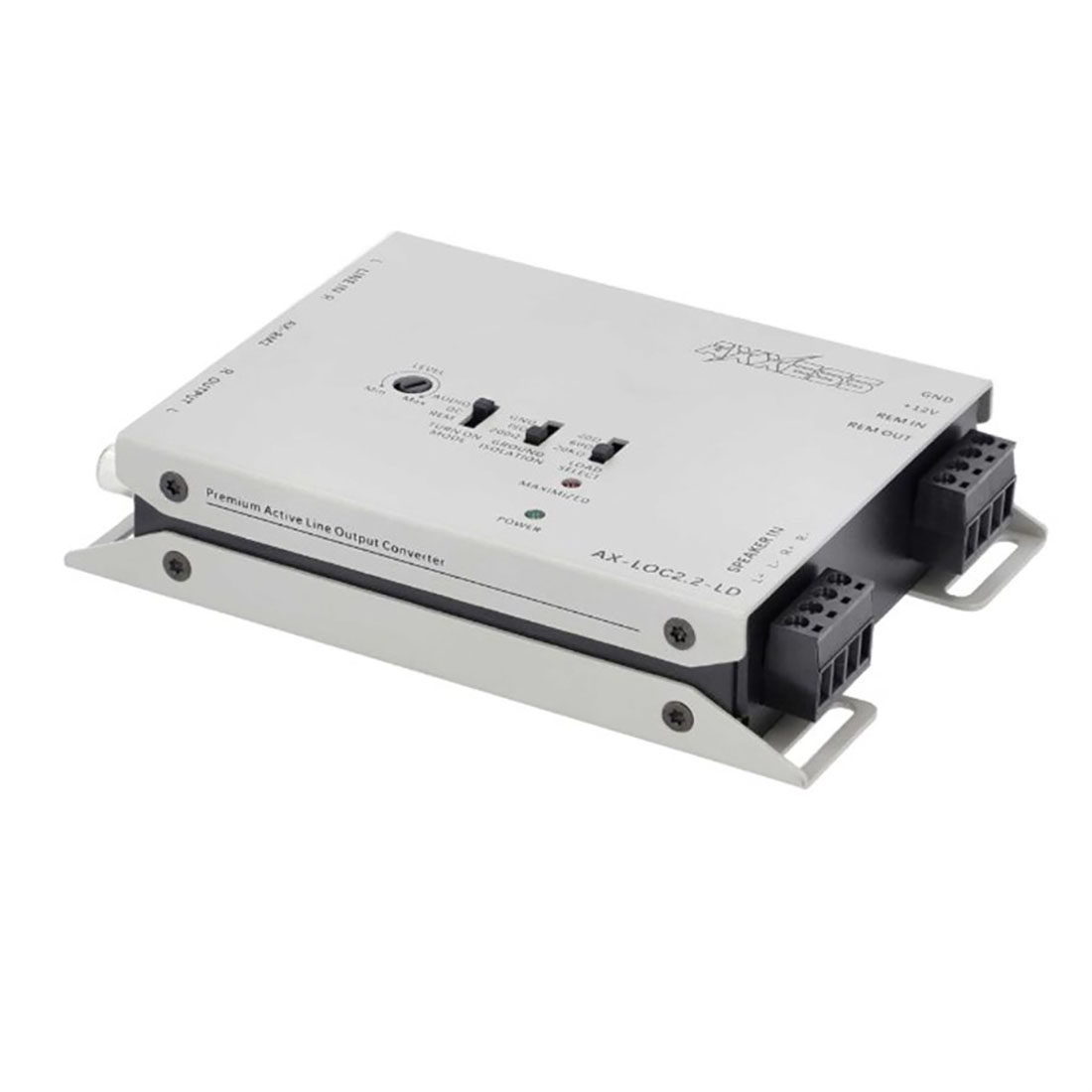

Axxess Active Line Output Converter with Line Driver

The AX-LOC2.2-LD is a line output converter and line driver all-in-one package. This unit has universal applications and enables installers to add aftermarket amplifiers to OEM source units easily and flawlessly.
MSRP: $119.99
Manufacturer: Axxess
SKU: AX-LOC2.2-LD
Features
  • 2-channel: 2 in, 2 out
  • Line driver with low level input
  • Max input level: 40V / 400W @ 20k Ohm
  • Operating Voltage: 9V-16V
  • Trigger Selection: REM / DC / AUDIO
  • Turn on Trigger (DC): 3V-7V
  • Output max @13.8V: 9.5V RMS
  • Input impedance selection: 20 / 60 / 20k Ohm
  • Ground Selection: GND / ISO / 200 Ohm
  • Gain adjustment: -28dB to +1dB
  • Input Sensitivity: 0.5V-20V
  • Signal to Noise: >110dB @ 6.4 output
  • THD+N (Total Harmonic Distortion): <0.01%
  • Frequency Response: 20Hz-20kHz
