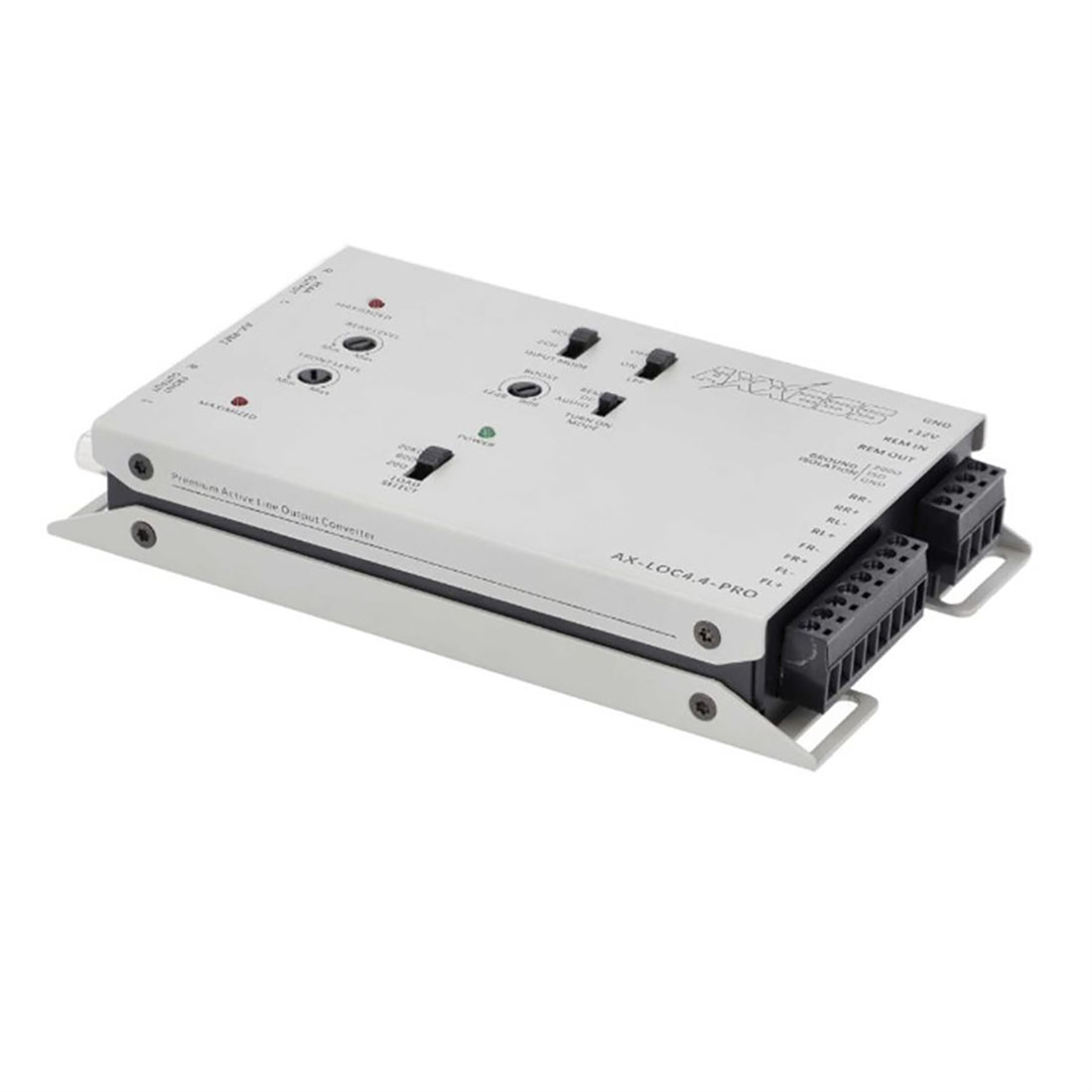

Axxess 4CH Active Line Output Converter with Bass Boost

This 4-channel Active LOC with Bass Boost from Axxess has universal applications and enables installers to add aftermarket amplifiers to OEM source units for enhanced sound quality.
MSRP: $147.99
Manufacturer: Axxess
SKU: AX-LOC4.4-PRO
Features
  • 4 channel: 4 in, 4 out
  • Line driver
  • Max input level: 40V / 400W @20k Ohm
  • Operating Voltage: 9V-16V
  • Trigger Selection: REM / DC / AUDIO
  • Turn on Trigger (DC): 3V-7V
  • Output Max @13.8V: 9.5V RMS
  • Input impedance selection: 20 / 60 / 20k Ohm
  • Ground selection: GND / ISO / 200 Ohm
  • Gain adjustment: -28dB to +1dB
  • Input sensitivity: 0.5V-20V
  • Signal to Noise: >110dB @6.4V output
  • THD+N (Total Harmonic Distortion): <0.01%
  • Frequency Response: 20Hz-20kHz
  • Low pass filter: <250Hz (rear channels)
  • Bass Boost: 0dB + 12dB (rear channels)
