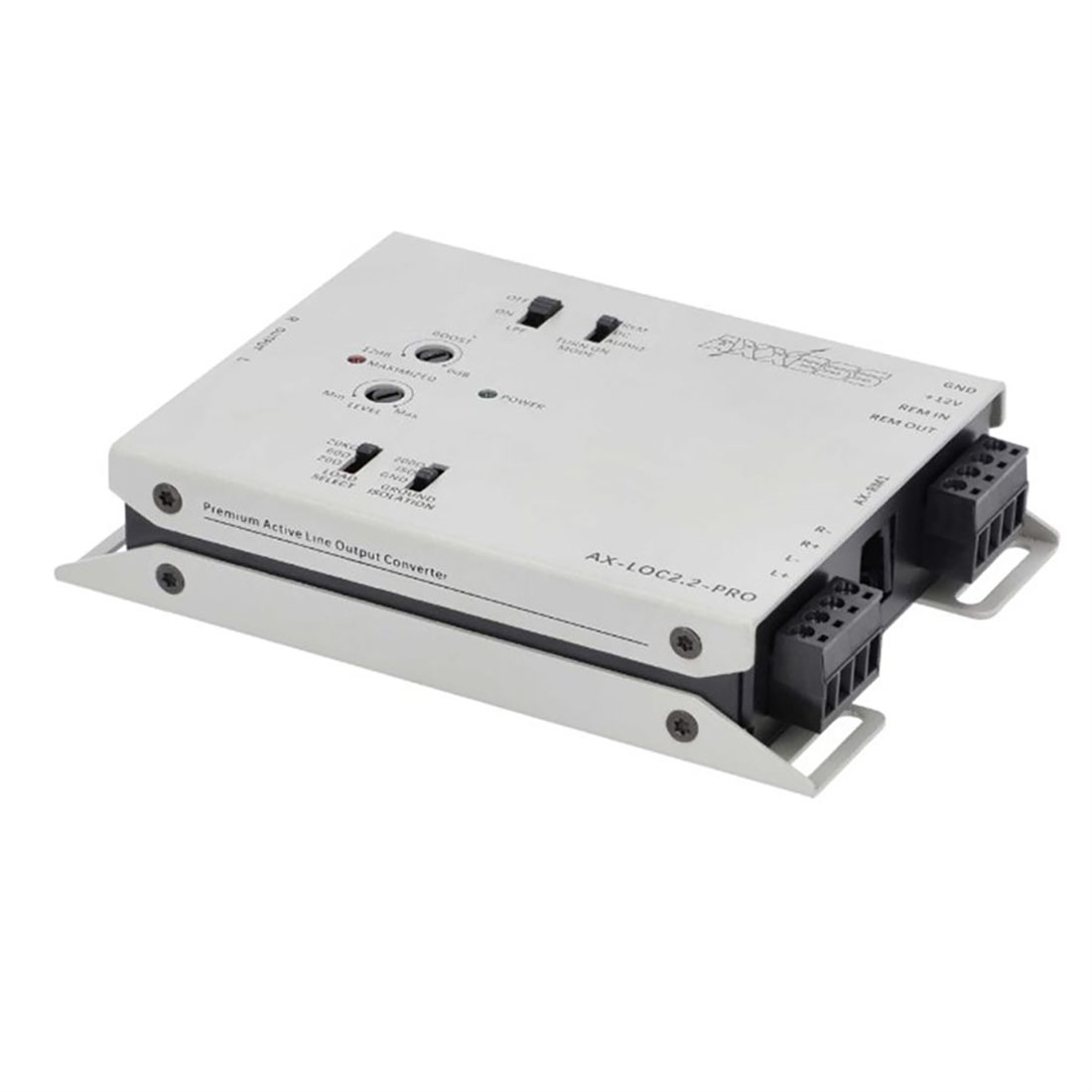

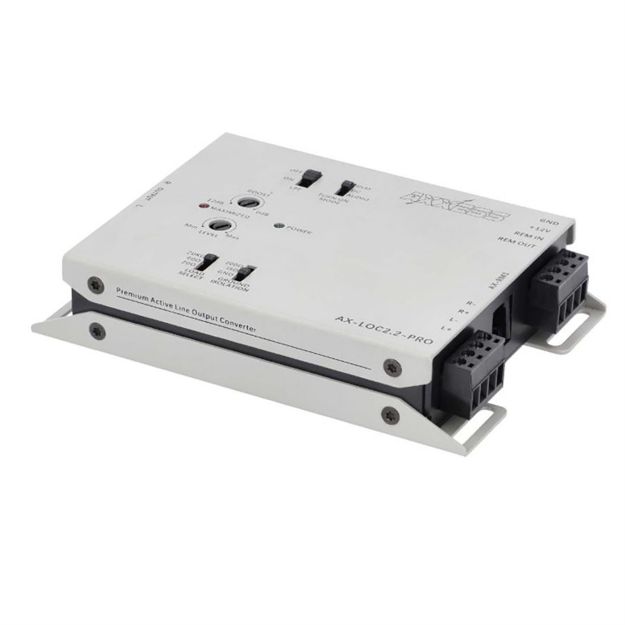

Axxess 2CH Active Line Output Converter with Bass Boost

Axxess AX-LOC2.2-PRO 2CH Active Line Output Converter with Bass Boost This 2-channel Active LOC with Bass Boost from Axxess has universal applications and enables installers to add aftermarket amplifiers to OEM source units for enhanced sound quality.
MSRP: $103.99
Manufacturer: Axxess
SKU: AX-LOC2.2-PRO
Features
  • 2-channel: 2 in, 2 out
  • Max input level: 40V / 400W @ 20k Ohm
  • Operating Voltage: 9V-16V
  • 0dB + 12dB (rear channels)
  • Optional PR-RM-1
  • Trigger Selection: REM / DC / AUDIO
  • Turn on Trigger (DC): 3V-7V
  • Output Max @13.8V: 9.5V RMS
  • Input Impedance Selection: 20 / 60 / 20k Ohm
  • Ground Selection: GND / ISO / 200 Ohm
  • Gain Adjustment: -28dB to +1dB
  • Input Sensitivity: 0.5V-20V
  • Signal to Noise: >110dB @6.4V output
  • THD+N (Total Harmonic Distortion): <0.01%
  • Frequency Response: 20Hz-20kHz
  • Low Pass Filter: <250Hz (rear channels)
  • Bass Boost: 0dB + 12dB (rear channels)
