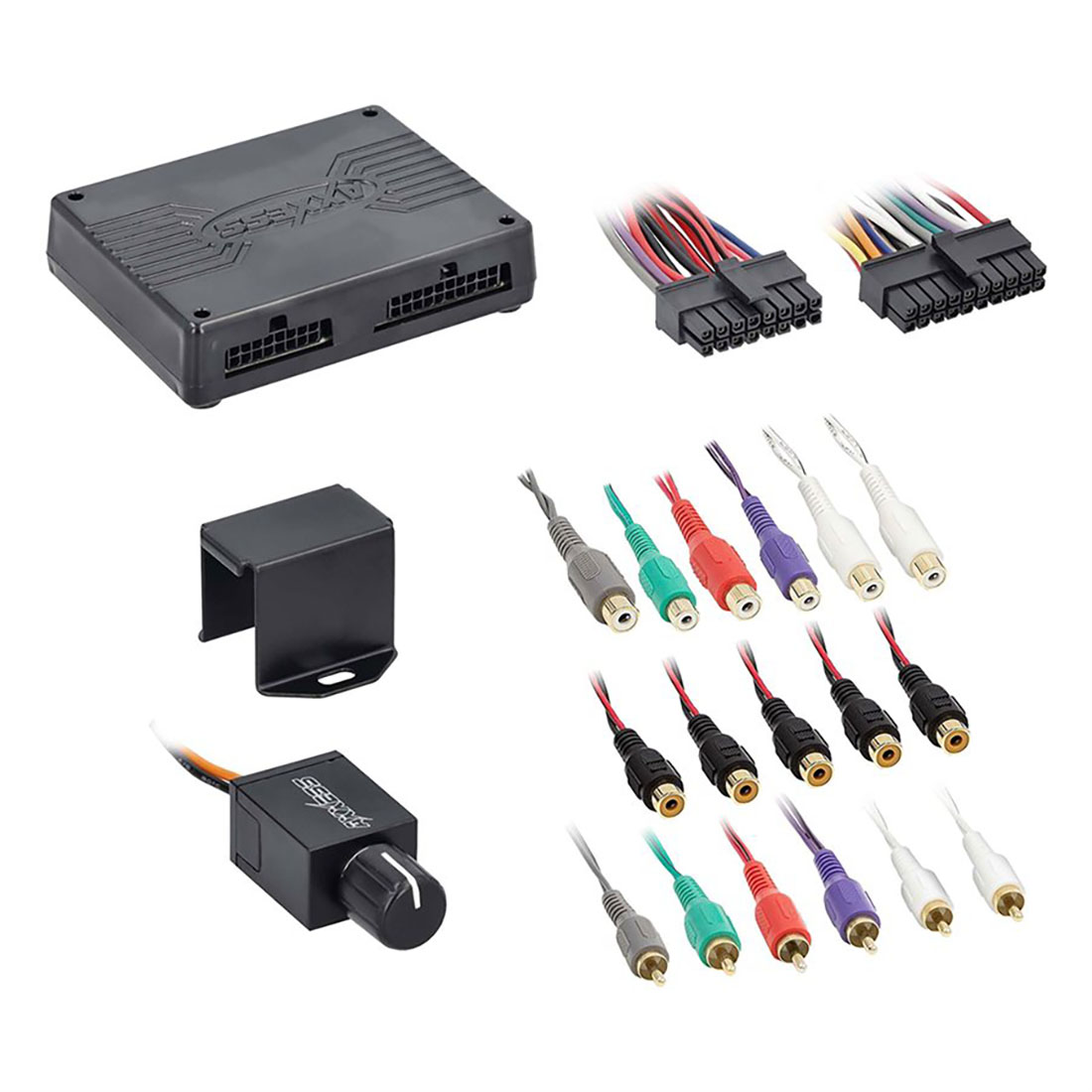

Axxess 10-Channel Digital Signal Processor

Axxess 10-Channel Digital Signal Processor
MSRP: $532.99
Manufacturer: Axxess
SKU: AXDSP-X

Features

  • 31 Band graphics EQ
  • 6 Inputs, 10 individually assignable outputs
  • Independent equalization on each of the 10 outputs
  • Independent high pass, low pass, and bandpass filters
  • Each channel can be delayed independently up to 10ms
  • Easy behind the radio installation in most applications
  • Can be used with OE and after-market radios
  • Chime control for GM/Chrysler vehicles
  • Clipping detection and limiting circuits
  • Bass knob included
  • Retains OE voice prompts (SYNC® & OnStar®)
  • Retains factory chimes including parking sensor and cross path detection alerts
  • Settings adjustable via Bluetooth® in a smart device app (Android & Apple compatible)
  • Read write, and store configurations for future recall
  • Password protect feature available in the mobile app
  • Micro-B USB updateable

Specs

  • Operating Voltage: 10-16VDC
  • Standby Current Draw: ~7mA
  • Operation Current Draw: ~150mA
  • Input Impedance: 1M ohm
  • Input Channels: 6 High/Low level Selectable
  • Input Options: High Level or Low Level
  • Input Type: Differential-Balanced
  • Input Voltage:
    • High Level Range: 0 - 28v Peak to Peak
    • Low Level Range: 0 - 4.9v Peak to Peak
  • Output Voltage: Up to 5v RMS
  • Output Impedance: 50 Ohms
  • Output Channels: 10
  • Equalizer Type: 31 Band Graphic EQ, +/- 10dB
  • THD: <0.03%
  • Frequency Response: 20Hz-20kHz
  • Crossover: 3-way LPF, BPF, HPF THP per channel
  • Crossover Type: Linkwitz-Riely 24DB Slope, Fixed
  • Sampling: 48kHz
  • S/N Radio: 105dB @ 5V RMS
