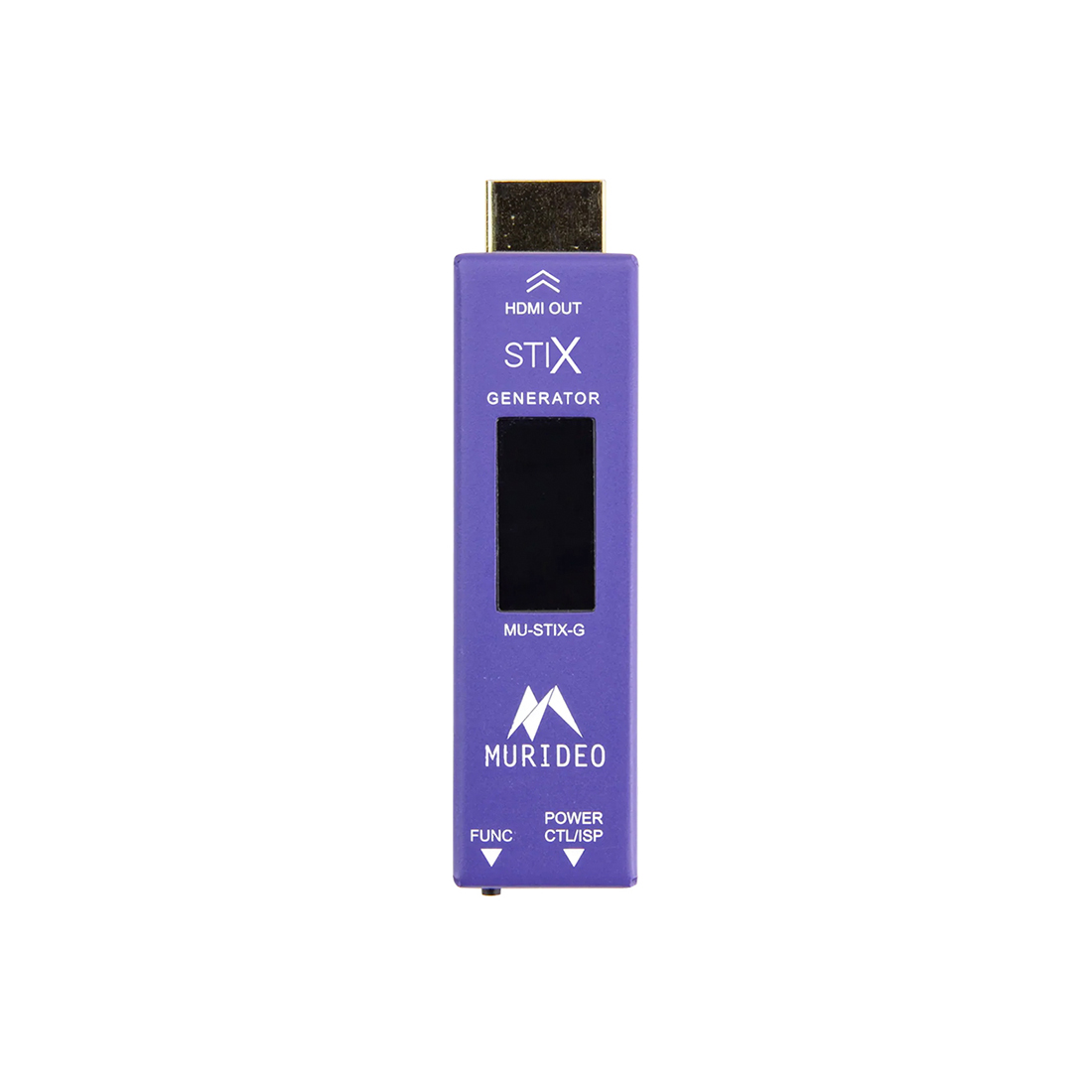

AVPro STIX Generator - Single

Initially developed as a resource for AVPro Edge internal quality control, STIX was conceived as an asymmetric testing methodology for dynamically transmitting, receiving, and logging test sources through 1,152 MXnet endpoint transmitters and receivers. Imagine pursuing this process with hundreds of Blu-ray machines or streaming devices, or the number of video displays… it is simply impossible.
MSRP: $257.00
Manufacturer: AVPro Edge
SKU: MU-STIX-G

Features

  • Low-cost, flexible output source: Cost-effective HDMI 2.1b, 8K 48 Gbps (FRL) compliant generator.
  • Analyze signals up to 8K: Generates 720p, 1080p, 4K and 8K signal timings at 8-, 10-, and 12-bit color depths, in RGB, 4:2:2, and 4:4:4 color spaces.
  • Configurable HDCP: With options for versions 1.4, and 2.3 (1.4 is TDMS only) or Off.Built-in test patterns: 13 built-in test patterns and 6 preset timing options, including pseudo-random binary sequence, a diagnostic tool to identify transmission-related issues such as bit errors, signal attenuation, or timing problems.
  • Low power draw: Allows device to be powered over USB-A (from AVR or display) or via USB Type-C from mobile device.
  • OLED color screen: An intuitive navigation menu displays incoming video thumbnail, source timing, FRL or TDMS presence, color space, color depth, and HDCP 1.4/2.X versions.
  • Ultra-compact form factor: The HDMI headshell-sized footprint enables easy connectivity in tight spaces after racks are built. It can also be conveniently stored with tools or in a computer bag for any time troubleshooting.

Specs

HDMI Version HDMI 2.1
HDCP Version 1.4 and 2.3
HDCP ON/OFF Yes
Resolution Timings 4K & 8K/30 Hz
720p, 1080p, 4K/60Hz
4K/120 Hz
Video Encoding RGB (Limited), YCbCr
Video Sampling Models RGB 4:4:4, YUV 4:4:4, YUV 4:2:2
Color Bit Depth 8-, 10-, 12-bit
Patterns Black, Checkbox, Stripes, Red, Green, Blue, White, White Ramp, Red Ramp, Green Ramp, Blue Ramp, PRBS, Color Bars
Audio Output Not Supported
Power 5 VDC, 270 mA
Power Consumption 1.35 W Max
Ports HDMI: Male Type-A
Firmware/Control: USB Type-C
Environmental Operating Temperature: 23 to 125°F (-5 to 51°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity Range: 5-90% RH (No Condensation)



Dimensions

HxDxW 0.47" x 0.83" x 3.19"
Weight 0.06 lbs
