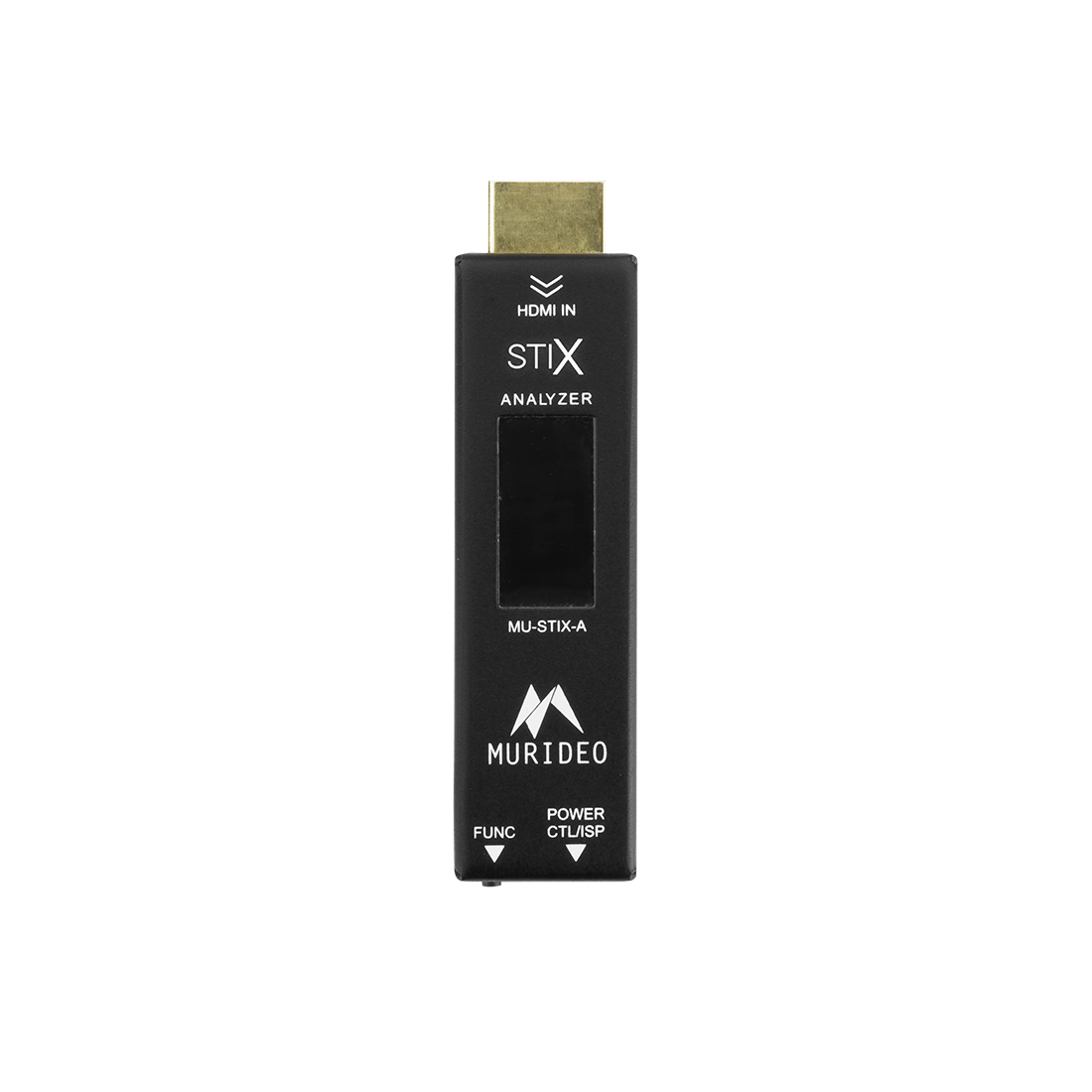

AVPro STIX Analyzer - Single

Initially developed as a resource for AVPro Edge internal quality control, STIX was conceived as an asymmetric testing methodology for dynamically transmitting, receiving, and logging test sources through 1,152 MXnet endpoint transmitters and receivers. Imagine pursuing this process with hundreds of Blu-ray machines or streaming devices, or the number of video displays… it is simply impossible.
MSRP: $257.00
Manufacturer: AVPro Edge
SKU: MU-STIX-A

Features

  • Low-cost, flexible analyzer: Cost-effective HDMI 2.1b, 8K 48 Gbps (FRL) compliant signal analyzer.
  • Analyze signals up to 8K: Resolution timings at 8-, 10-, and 12-bit color depths, in RGB 4:2:0, 4:2:2, and 4:4:4 color spaces.
  • Signal detection: Automatically detects and logs signal changes, sync losses and signal loss time.OLED color screen: An intuitive navigation menu displays incoming video thumbnail, source timing, FRL or TDMS presence, color space, color depth, and HDCP 1.4/2.X versions.
  • Detailed display information: Displays audio information, including audio type, sampling rate and number of channels.
  • Low power draw: Allows device to be powered over USB-A (from AVR or display) or via USB Type-C from mobile device.Ultra-compact form factor: The HDMI headshell-sized footprint enables easy connectivity in tight spaces after racks are built. It can also be conveniently stored with tools or in a computer bag for any time troubleshooting.

Specs

HDMI Version HDMI 2.1
HDCP Version 1.4 and 2.3
HDCP ON/OFF No
Maximum Clock Rate 600 mscs (1188 MHz)
Maximum Throughput Per Channel 12 Gbps (48 Gbps Total)
Resolution Timings HDMI VICs up to 8K/ 60 Hz
DCI up to 4096x2160 /60 Hz
VESA DMT
VESA CVT-RB up to 600 MHz
Video Encoding RGB, YCbCr
Video Sampling Models RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
Color Bit Depth 8-, 10-, 12-bit
Audio Type L-PCM
Audio Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176, 192
Audio Channels Up to 8
Power 5 VDC, 540 mA
Power Consumption 2.7 W Max
Ports HDMI: Male Type-A
Firmware/Control: USB Type-C
Environmental Operating Temperature: 23° to 125° F (-55° to 1° C)
Storage Temperature: -4° to 140° F (-20° to 60° C)
Humidity Range: 5% to 90% RH (No condensation)



Dimensions

HxDxW 0.47" x 0.83" x 3.19"
Weight 0.06 lbs
