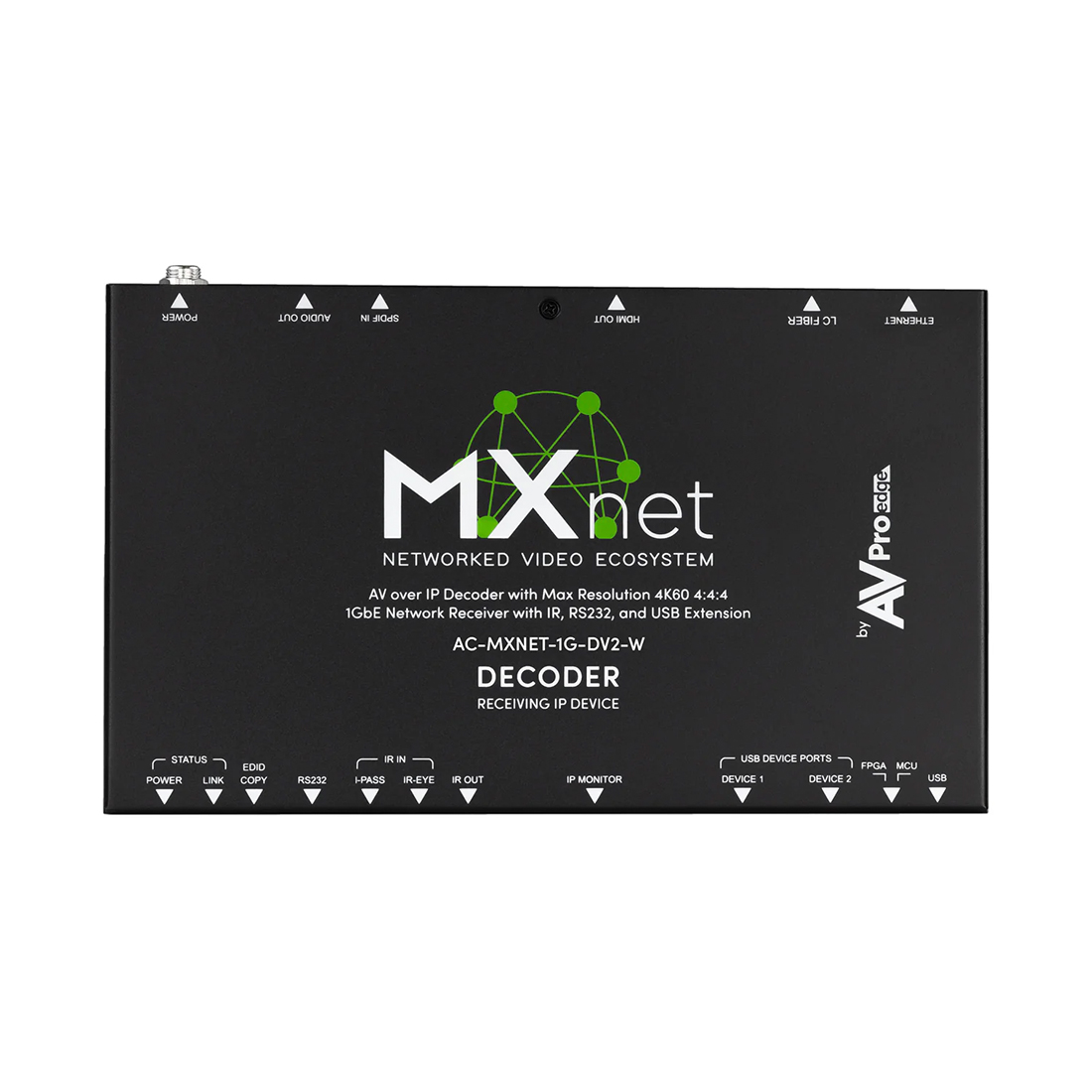

AVPro Edge MXNet Evolution II Weatherproof Decoder version 2

The AC-MXNET-1G-DV2-W is a 4K/60fps 4:4:4 capable, weather-resistant AV over IP decoder designed for demanding environments. When paired with Evolution II series encoders, it enables reliable AV and control signal distribution over standard 1GbE managed networks. Engineered with a proprietary protective coating, the DV2-W is ideal for outdoor installations, safeguarding internal electronics from moisture, dust, and other environmental hazards with an IP68 rating.
MSRP: $1833.00
Manufacturer: AVPro Edge
SKU: AC-MXNET-1G-DV2-W

Features

  • 4K/60fps Decoding - Capable of receiving up to 4K/60fps 4:4:4 8-bit YCbCr or RGB source content with support for 10/12-bit deep color formats including HDR10, HLG and Dolby Vision.
  • Video Walls - The DV2 supports scalable video wall configurations up to 16x16 in size with bezel correction. Perfect for digital signage, command and control, or high-impact presentation spaces. It delivers synchronized, ultra-low latency video across all displays for a seamless and immersive viewing experience.
  • Low Latency Distribution - Evolution II endpoints have an end-to-end system latency of approximately 1 video frame (16ms) with 60Hz video content. Enable ultra-low latency mode (ULLM) to achieve latency as little as 4ms.
  • Weather Resistance - Coated with a proprietary layer to resist the elements including, rain, salt fog, dust, humidity, heat and some chemicals to better support installations such as patios, outdoor signage or any weather prone areas.
  • USB & KVM - Connect a wide range of USB peripherals such as a keyboard and mouse or webcams and IMAG devices to extend them over the network to remote computers to create IP-based USB systems.
  • Control Signal Routing - Evolution II endpoints are equipped with various control signal I/O. Using the powerful MXnet API, you can send control commands over the network to practically any 3rd-party component in a system such as displays and source devices.

Specs

  • Video Codec: Proprietary Codec based on M-JPEG
  • Audio Codec: Proprietary Codec
  • Latency: 16ms@60Hz
  • Ultra Low Latency Mode: 2-4ms@60Hz
  • Streaming Protocols: TCP, UDP, IP, IGMP-V2
  • Copy Protection: HDCP 2.2 and earlier
  • Signal Type: DVI 1.0, HDMI 2.0b
  • Video Resolution: 720p@50/60Hz; 1080p@24, 50 & 60Hz; 4K@50/60Hz 4:4:4*; 4K@30Hz 4:4:4; 4K@60Hz 4:2:0;4:2:2 4K@24Hz 4:2:0/4:2:2 [Ultrawide Support]
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0, RGB
  • Bit Depth per Color: 1080p 8-,10-,12-bit, 4K 8-,10-,12-bit
  • Visually Lossless: 4096x2160p@60Hz (8-bit) 4:4:4 or RGB; 3840x2160p@60Hz (12BIT) 4:2:2 Dolby Vision; 3840x2160p@60Hz (10-bit) 4:2:2 HDR10/HLG; 1920x1080p@60Hz (12-bit)
  • Audio Format (End to end)PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel, Dolby Digital Plus, DTS 5.1 Channel, DTS–ES, DTS–HD High Resolution, DTS-HD Master Audio, Dolby Atmos
  • Embedded Audio: Toslink Audio IN (Future Audio Return Support Only)
  • De-Embedded Audio: Balanced Stereo Analog Audio (5-pin Phoenix Only)
  • 1x Ethernet Port: female RJ45, PoE
  • 1x SFP Port: SFP Slot
  • 1x HDMI Port: HDMI Type A 19-pin, female, HDMI Output
  • Audio Ports
    • 1x 5-pin Terminal Block, Balanced L/R Audio out
    • 1x Toslink Audio In (Future Audio Return Support Only)
  • 3x IR Ports: 3.5 mm mini-stereo jack, one IR-Pass, one IR-EYE, one IR-out
  • 1x RS232 Port: 3 Pin Terminal Block
  • USB Ports
    • 2x USB 2.0 Type-A for USB extension and KVM,
    • 1x USB Type-C for MXnet service
  • Ethernet: 100 Meters/ 330 Feet over CAT5e and above
  • SFP and Fiber
    •  1000BASE-SX SFP Transceiver Module
    • (MMF, 850nm, 550m, LC, DOM)
    • 1000BASE-LX/LH SFP 1310nm 10km Transceiver Module
  • Operating Temperature: 23 to 125°F (-5 to 51°C)
  • Storage Temperature: -4 to 140°F (-20 to 60°C)
  • Operating Humidity: 5-90% RH (No Condensation)
  • Cooling: Fanless Cooling
  • Acoustic Noise Level: 0dB
  • Max Power Consumption:6.8W
  • PoE (Power over Ethernet): IEEE 802.3af (15.4W)
  • Power Supply Unit
    • Input: AC 120-240V-50/60Hz 0.8A
    • Output: DC 12V 2A

Dimensions

  • 7.84" x 4.72" x 0.78"
  • 1.38 lbs
