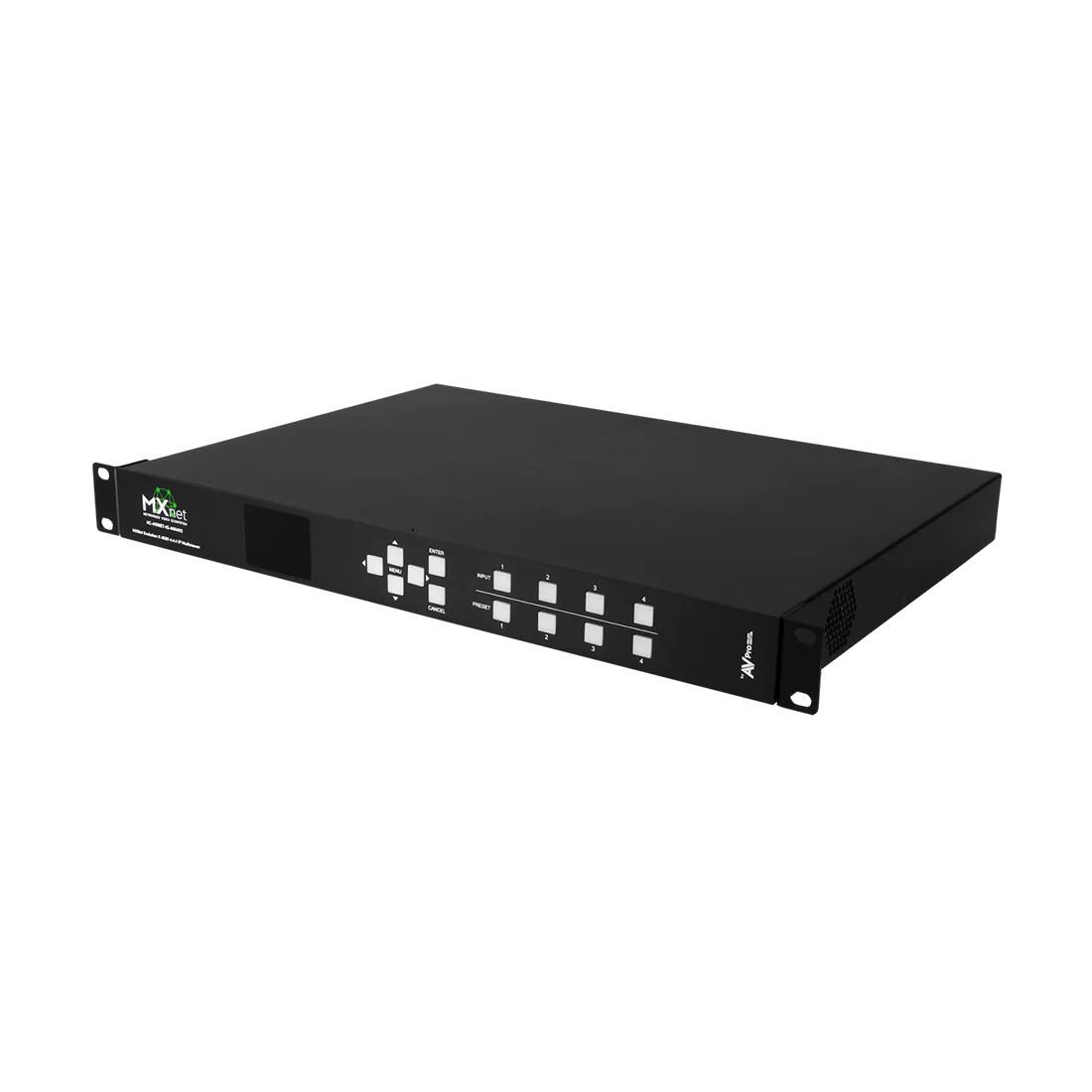

AVPro Edge MXnet Evolution II 4k 4x1 Multiviewer

Part of the AVPro Edge MXnet Evolution II ecosystem, this 1RU AV over IP tiler features four built-in Evolution II decoders and one encoder, allowing you to combine and display up to four AV streams simultaneously across any connected decoder.
MSRP: $6900.00
Manufacturer: AVPro Edge
SKU: AC-MXNET-1G-MV41V2

Features

  • Ultimate Flexibility – The Evolution II Multi-viewer provides the ability to take in AV streams from any MXnet Evolution II encoder on the network. Whether it’s a small residential system or a large commercial use case, all source content can be routed into the multi-viewer and tiled into a single output.
  • Layout Customization – Preloaded with four multiview preset layouts to get you up and going quickly. Any of the four layouts can be customized, allowing window locations and sizes to be adjusted in real-time.
  • Dual Output Multi-View – Features both an HDMI output and a mirrored re-encoded MXnet stream. Connect the HDMI output to a local display in a rack for monitoring or for single-room use cases. Simultaneously encode the multi-view output to any other MXnet Evolution II decoder in the system.
  • MXnet Mentor Interface - Just like all other MXnet endpoints, the Evolution II Multi-viewer supports setup and configuration through the Mentor management interface hosted on the CBOX controller, unifying the MXnet experience across the entire ecosystem.
  • Third-party Control – Easily route AV signals and tailor multiview layouts to fit any environment with robust driver support for most leading control systems—streamlining integration and enhancing user experience.
  • 1RU Space-Saving Chassis – Maximize space and efficiency with a slim 1RU rack-mountable chassis. Easily integrate it alongside MXnet encoders or stack multiple units to build a powerful, dedicated multi-view system all within a minimal installation footprint.

Specs

Signal Type DVI 1.0, HDMI 2.0b
Video Resolution 720p/50 & 60 fps; 1080p/ 24, 50 & 60 fps; 4K/50 & 60 fps 4:4:4; 4K/30 fps 4:4:4; 4K/60 fps 4:2:0 & 4:2:2 4K/24 fps 4:2:0 & 4:2:2
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0, RGB
Bit Depth per Color 1080p 8-, 10-, and 12-bit. 4K 8-, 10-, and 12-bit
Visually Lossless 4096x2160p/ 60 fps (8-bit) 4:4:4 or RGB; 3840x2160p/ 60 fps (12-bit) 4:2:2 Dolby Vision; 3840x2160p/60 fps (10-bit) 4:2:2 HDR10 and HLG; 1920x1080p/60 fps (12-bit)
Audio Format (end-to-end) PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1, Dolby Digital Plus, DTS 5.1, DTS–ES, DTS–HD High Resolution, DTS-HD Master Audio, Dolby Atmos
Ethernet Distance 100 Meters/ 330 Feet over CAT5e and above
Ports Ethernet: (5) x female RJ45
HDMI: (1) x HDMI Type A 19-pin, female, HDMI output
Max Power Consumption 23.04 W (12 VDC, 1.92 A)
Power Supply Unit AC Input: 100-240 VAC ~ 50/60 Hz
DC Output: 12 VDC, 5 A
Operating Temperature 23°F to 125°F ( -5°C to 51°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Operating Humidity 5% to 90% RH (No Condensation)
Cooling 1x20 mm Noctua Fan
Acoustic Noise Level 14.9 dB (A)



Dimensions

WxDxH 17.31" x 12.44" x 1.75"
Weight 9.34 lbs



Features

  • Ultimate Flexibility – The Evolution II Multi-viewer provides the ability to take in AV streams from any MXnet Evolution II encoder on the network. Whether it’s a small residential system or a large commercial use case, all source content can be routed into the multi-viewer and tiled into a single output.
  • Layout Customization – Preloaded with four multiview preset layouts to get you up and going quickly. Any of the four layouts can be customized, allowing window locations and sizes to be adjusted in real-time.
  • Dual Output Multi-View – Features both an HDMI output and a mirrored re-encoded MXnet stream. Connect the HDMI output to a local display in a rack for monitoring or for single-room use cases. Simultaneously encode the multi-view output to any other MXnet Evolution II decoder in the system.
  • MXnet Mentor Interface - Just like all other MXnet endpoints, the Evolution II Multi-viewer supports setup and configuration through the Mentor management interface hosted on the CBOX controller, unifying the MXnet experience across the entire ecosystem.
  • Third-party Control – Easily route AV signals and tailor multiview layouts to fit any environment with robust driver support for most leading control systems—streamlining integration and enhancing user experience.
  • 1RU Space-Saving Chassis – Maximize space and efficiency with a slim 1RU rack-mountable chassis. Easily integrate it alongside MXnet encoders or stack multiple units to build a powerful, dedicated multi-view system all within a minimal installation footprint.
