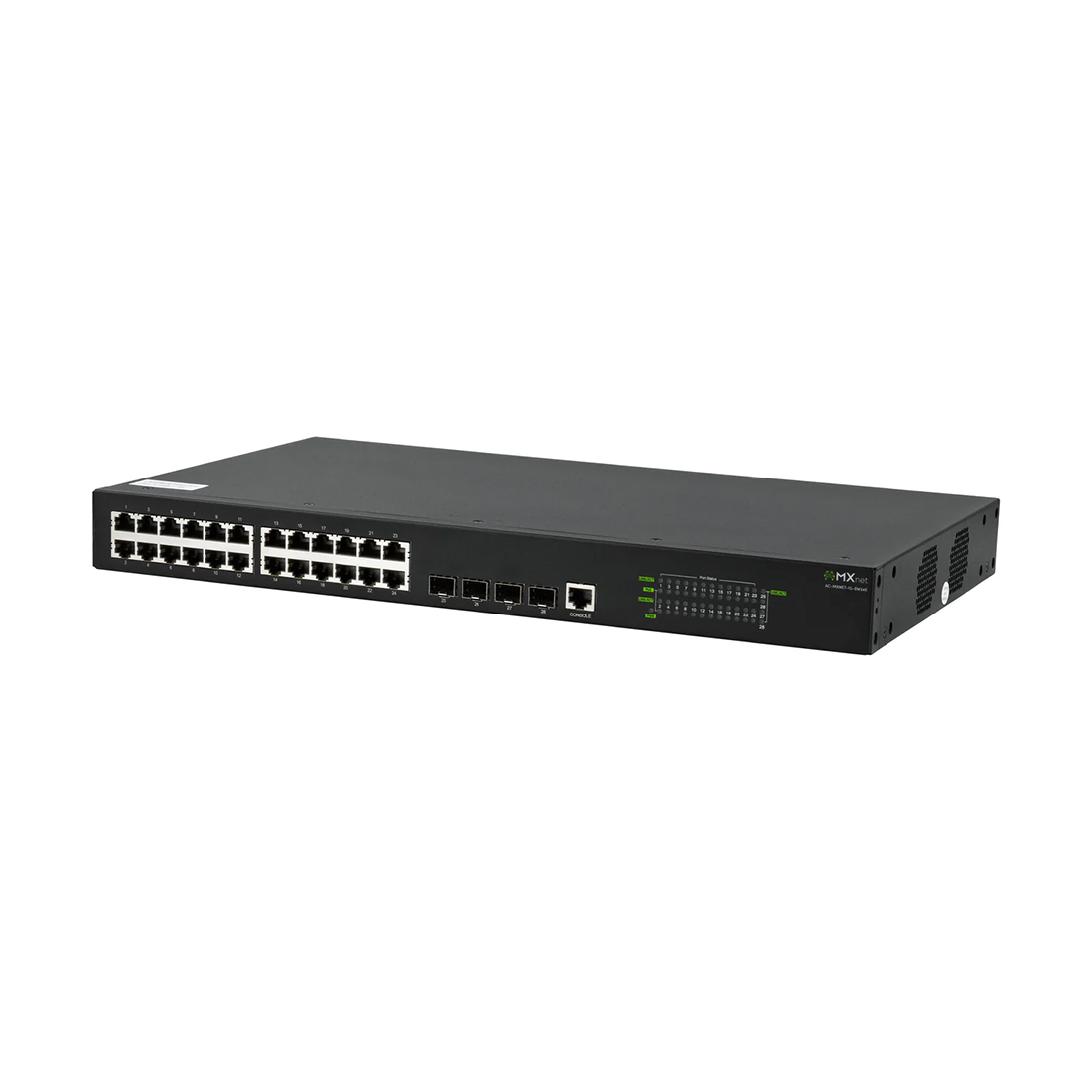

AVPro Edge MXNet E-Series 24 Port 1G Switch (copper)

AVPro Edge engineered the AC-MXNET-SW24E as a cost-effective, advanced network switch to efficiently manage the advantages of MXnet USP series Essential, Plus, and Pro endpoints. Stacking is supported with appropriate bandwidth allocation.
MSRP: $1749.00
Manufacturer: AVPro Edge
SKU: AC-MXNET-SW24E

Features

  • Engineered With Cost-Effectiveness In Mind: Advanced Layer 2.5 (L2+) architecture combines Layer 2 efficiency with Layer 3 routing flexibility for improved traffic management and support of multiple protocols. Price and complexity are reduced without compromising latency, forfeiting minor scalability, or inhibiting perceptible speed.
  • Non-blocking Architecture for USP Deployments: A stacking bandwidth of 4 Gbps exceeds the 1.44 Gbps maximum USP endpoint capacity for congestion-free stream routing.
  • 24 PoE+ Copper Ports: Single-cable connectivity eliminates the need for external power supplies with a PoE+ budget of 370 watts, resulting in clutter-free, simplified installations with enhanced reliability and lower system costs.
  • 4 x 1G SFP Stacking Ports: Enables 4 x 1G stacking for USP/Dante audio systems or provides uplinks to core infrastructure. May also be used with Link Aggregation to increase bandwidth.
  • Dante Audio Prioritized: AVPro Edge is the first professional AV manufacturer to implement Dante-oriented QoS traffic prioritization to enhance network streaming performance in residential and commercial environments.
  • Pre-configured for MXnet USP, 1G V1/V2, and Dante: Truly plug-and-play in a standalone MXnet 1G EVO I or EVO II system, with out-of-the-box MXnet USP and Dante audio protocol support. VLAN, QoS, and IGMP settings are optimized, with no additional adjustments required.
  • 1 RU Compact Rack Height: Standard AV rack mount spacing.
  • Note: There is an Installation Maximum of 4 Switch Hops.

Specs

Switching Capacity 56 Gbps
Forwarding Rate 41.7 Mpps
MAC Address Table 8K
Jumbo Frame Support Up to 10,000 bytes
Hardware Queues per port 8
VLAN Support Up to 4k VLANs
ACL Entries 1,408
Switch ASIC Realtek RTL8382M
Switch Chip Cache 512 KB
CPU Embedded MIPS-4KEc with MMU
Memory 256 MB DDR3
Storage 32 MB SPI Flash
Ports RJ45 Ports: 24× 10/100/1000Base-T PoE+
SFP Ports: 4× 100/1000Base-X SFP
Console Port: 1 x RJ45
Power Input AC 100-240V, 50/60Hz
Power Supply Internal
Maximum Power Consumption 450W
Switch Power Consumption <30W
PoE Standard IEEE 802.3af (PoE), IEEE 802.3AT (PoE+)
Total PoE Power Budget 370W
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5-95% non-condensing



Dimensions

WxDxH 17.32" × 10.23" × 1.72"
Weight 8.13 lbs
