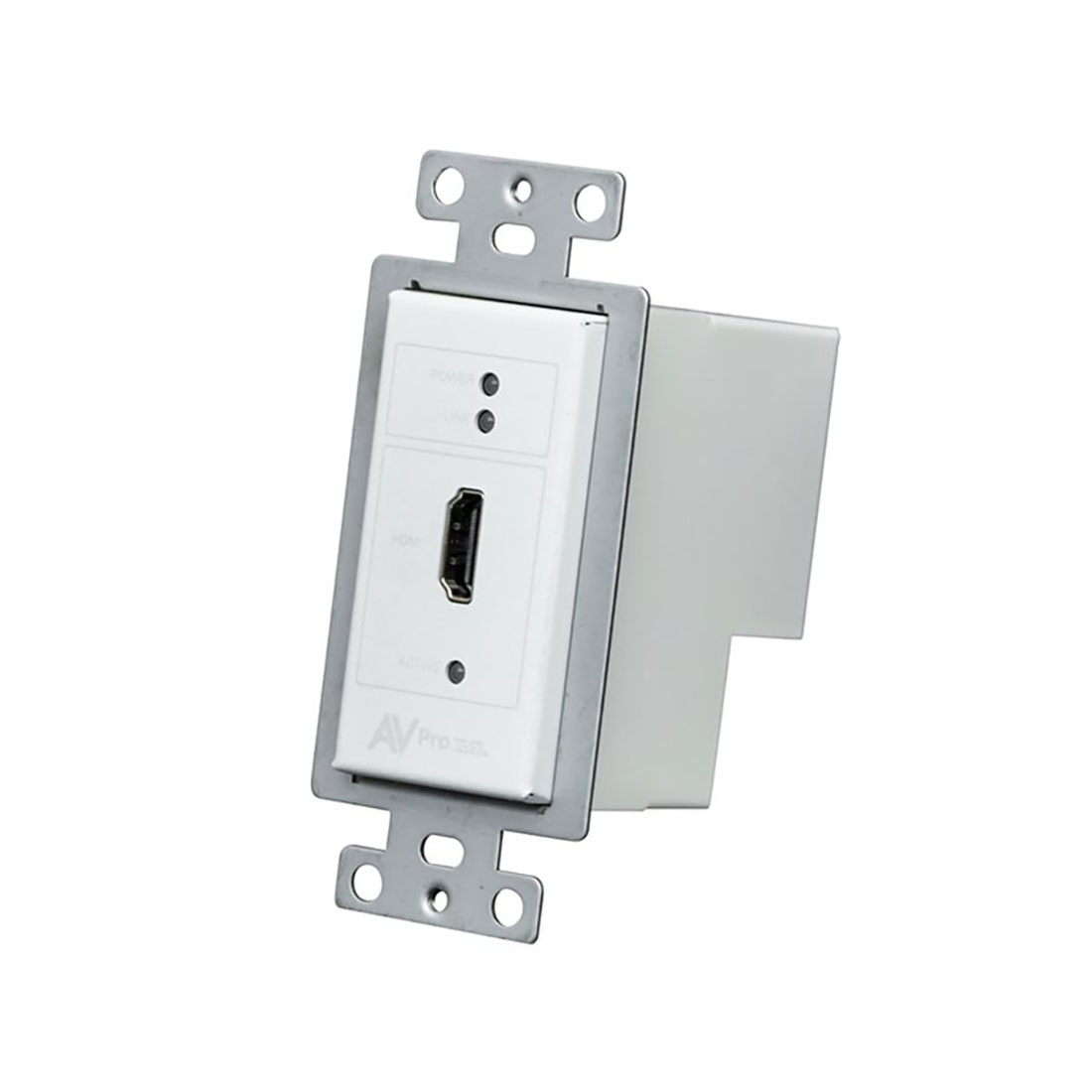

AVPro Edge ConferX HDMI Wall Plate Transmitter Via HDBaseT

AVPro Edge ConferX HDMI Wall Plate Transmitter Via HDBaseT
MSRP: $834.00
Manufacturer: AVPro Edge
SKU: AC-CXWP-HDMO-T
Features
  • HDMI 2.0 auto sensing Inputs
  • 4K 30 4:4:4, 4K60 4:2:0
  • HDR 4:2:2 12 Bit Support
  • HDCP 2.2 & Earlier Supported
  • 100M (330ft) 0n 1080P, Up to 70m (230ft) on 4K (Cat6a)
  • No Local Power Necessary (Powered by AC-EX100-UHD-R)
  • Single Gang (Decora), Low heat, rugged, long-life chassis
  • "Straight In" RJ45 Jack Design.  Easy to install.
  • Compatible with HDBaseT displays, projectors, AVR's
  • Designed for the conference/classroom room so your customer can focus on their meetings, not their video system.
Specs
  • Video Resolution: Up to 4K 60hz 4:2:0 & 4K30 4:4:4
  • Vesa Resolution: Up to 2560 x 2048 (QSXGA)
  • HDR Formats/Resolution: 4K24 4:2:2 12 Bit, 4K24 4:2:0 supported
  • Audio Formats Supported HDMI: PCM 2.0 CH, LPCM 5.1 & 7.1, Dolby Digital, DTS5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
  • Distance 1080p: 330 feet
  • Distance 4K & HDR: 230 feet
  • Bandwidth: 10.2 GBPS
  • HDCP 2.2 and earlier
  • HDMI (Input): Type A
  • HDBASET (Output to receiver): RJ45
  • Power Consumption (total): 8 watts (16.5 when paired)
  • Power Supply: Input: AC 100-240V~50/60HZ, Output: DC 5V (Mini USB)
Dimensions
  • Size (L x W x H): 2.75” x 2.55” x 1.22” (without cover)
  • Size (L x W x H): 6.25” x 5.375” x 3.5” (kit packaged)
  • Weight: 4 lb.
What’s in the box
  • AC-CXWP-HDMO-T Transmitter Unit
