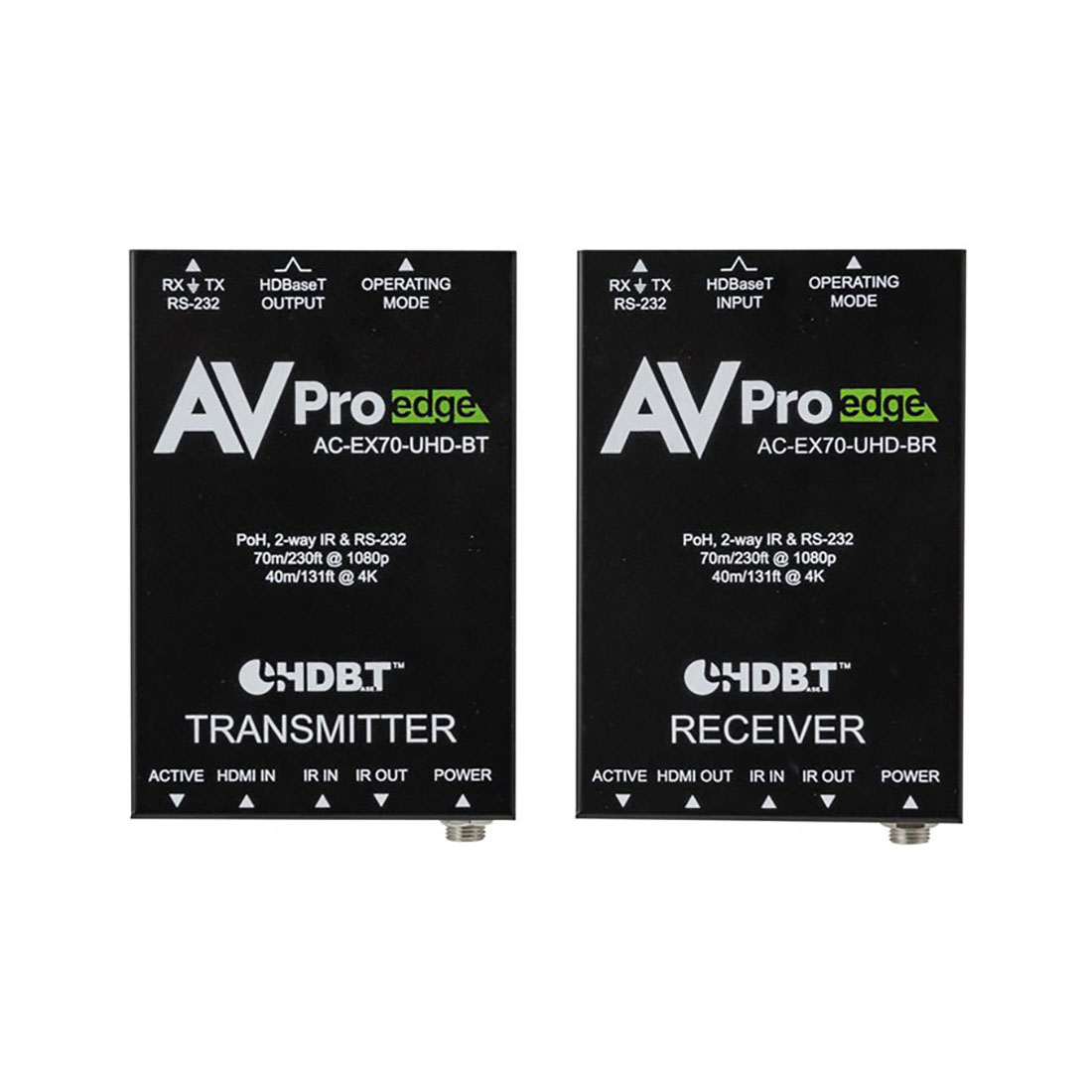

AVPro Edge Basic 70 Meter HDMI via HDBaseT Extender Kit

The AC-EX70-UHD-BKT can pass 1080p HDMI signals 70 meters and 4K HDMI signals 40 meters over readily available CAT-6a cable using HDBaseT technology. ­This kit is straightforward to use and install and works best with SDR signals
MSRP: $576.00
Manufacturer: AVPro Edge
SKU: AC-EX70-UHD-BKT/O2

Features

  • Extend 4K HDMI over Category Cable: The length of manufactured HDMI cable is unchangeable after it is made and they are unreliable after about 25FT. Additionally, HDMI connectors can only be terminated in specialized factory environment due to its extremely high frequencies and high density. This does not allow installers or users to remake or make cables on a DIY basis. CAT 6A cables are available widely and can be reworked easily by the installer or end-user.
  • Distance: By using AC-EX70-UHD-BKT, the transmission distance for HD 1080P is up to 70 meters (230’) and UHD 4K resolution the distance reaches an impressive 40 meters (115’).
  • Control: IR & RS-232 are bi-directional and can control the sources from the sinks or vice versa, this model doesn't carry I-Pass, for that feature check out our AC-EX70-UHD-KIT.
  • Bi-Directional Power: PoH (Power over HDBaseT) function is intended to power RX from the TX or TX from the RX, this gives the installer many options when a power outlet can be scarce.

Specs

Video Resolution Up to 4K 60Hz 4:2:0 & 4K30 4:4:4
Vesa Resolution Up to DCI 4K (4096x2160)
Audio Formats Supported HDMI PCM 2.0 CH, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
HDBaseT (CAT) Distance (4K) 40 Meters (131 Feet) (Cat 6a)
HDBaseT (CAT) Distance (Full HD) 70 Meters (230 Feet) (Cat 6a)
HDMI Lead In/Out (4K60 4:4:4) Up to 50 Feet (Using Bullet Train HDMI)
HDMI Lead In/Out (W/ AOC Cable) (4K60 4:4:4) Up to 130 Feet (Using Bullet Train AOC)
Bandwidth 10.2 gbps (w/ICT)
HDCP 2.2 and earlier
HDMI (TX & RX) Type A
HDBASET RJ45 POH for HDBASET Receivers
IR RX 3.5mm stereo (3 Conductor)
RS-232 3 pin terminal block
Power Barrel Type
Power Consumption (Total) 9 Watts max pair
Power Supply Input AC 100-240V~50/60HZ, Output DC 12V 2A



Dimensions

Size (H x D x W) 4.14” x 2.82”x 0.98” (single unit)
Packaged Size (H x D x W) 5.5” x 6.5”x 3.6”
Weight 0.3 lb.
Packaged Weight 2 lb.



Features

  • Extend 4K HDMI over Category Cable: The length of manufactured HDMI cable is unchangeable after it is made and they are unreliable after about 25FT. Additionally, HDMI connectors can only be terminated in specialized factory environment due to its extremely high frequencies and high density. This does not allow installers or users to remake or make cables on a DIY basis. CAT 6A cables are available widely and can be reworked easily by the installer or end-user.
  • Distance: By using AC-EX70-UHD-BKT, the transmission distance for HD 1080P is up to 70 meters (230’) and UHD 4K resolution the distance reaches an impressive 40 meters (115’).
  • Control: IR & RS-232 are bi-directional and can control the sources from the sinks or vice versa, this model doesn't carry I-Pass, for that feature check out our AC-EX70-UHD-KIT.
  • Bi-Directional Power: PoH (Power over HDBaseT) function is intended to power RX from the TX or TX from the RX, this gives the installer many options when a power outlet can be scarce.
