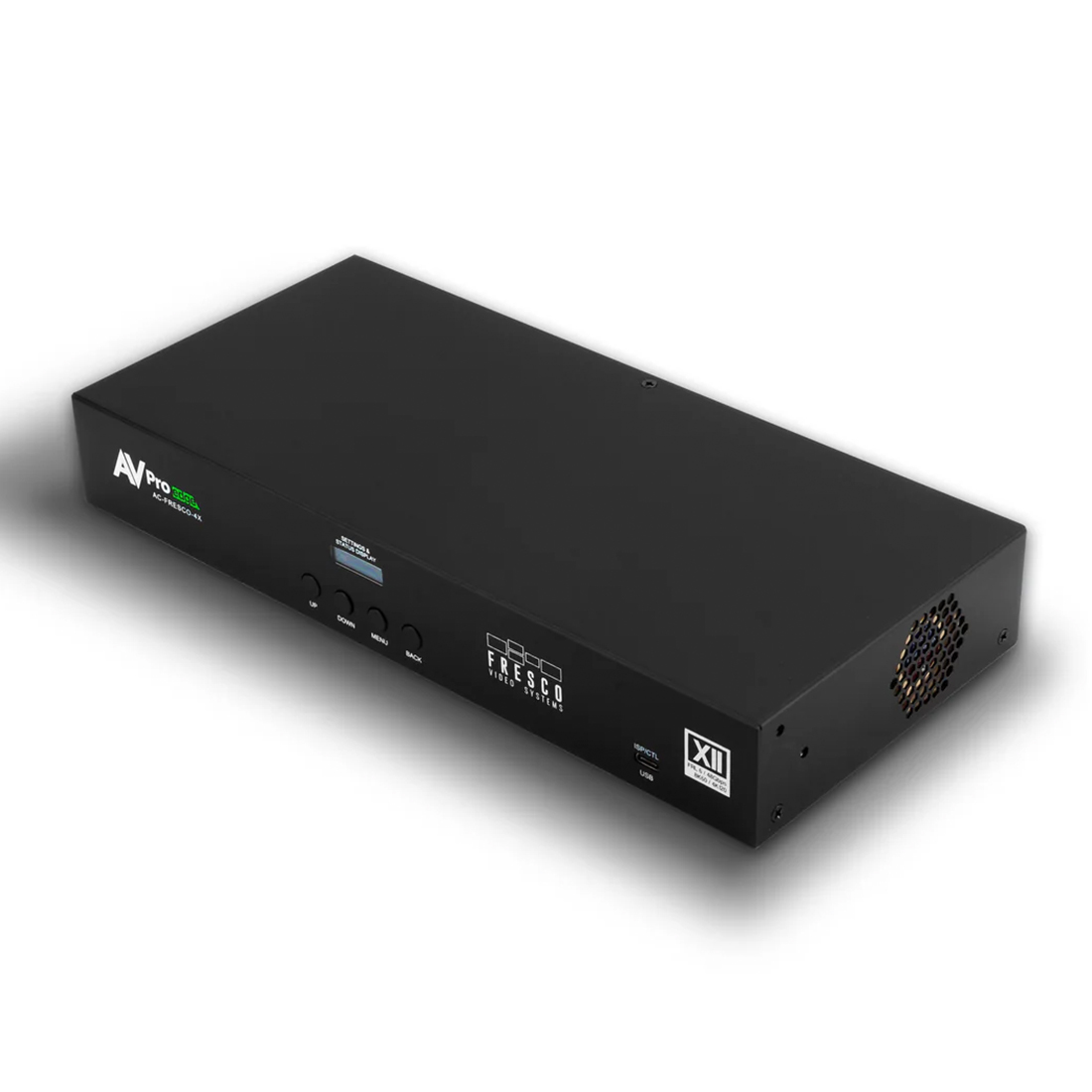

AVPro Edge 8k HDR 2x2 Scaling Video Wall Processor Featuring

Esports and gaming turn next level played through the AC-FRESCO-4X as it delivers high-resolution 8K HDR content that is easily scaled, cropped, resized, or downscaled using the intuitive built-in Web interface to stunningly transform new and legacy videowalls. Its unique VRR Reclocking feature enables the most complex and advanced 40 fps to 120 fps Next-gen game console source to be synchronized at a fixed output rate for stable, tear-free, smooth operator playback. Sports-themed establishments thrive when patrons are delivered an experience they cannot duplicate at home.
MSRP: $2265.00
Manufacturer: AVPro Edge
SKU: AC-FRESCO-4X

Features

  • Full 8K Ultra HD Uncompressed 48 Gbps with HDR and HLG - The AC-FRESCO-4X is fully compatible with all specified ITU 8K timings and bit rates. Its capabilities are future-forward through the complete evolution of the 8K format, making it a unique, invest-once product.
  • VRR Reclocking - Variable Refresh Rates between 40 fps and 120 fps can be reclocked to a fixed output rate to maintain compatible videowall synchronization between next-gen game consoles and legacy display technologies, ensuring stable video performance.
  • Web Interface and Front Panel Navigation - Setting up the AC-FRESCO-4X is easy and straightforward. EDID and network settings are quickly accessible from the front panel OLED display. Videowall layout for easy plug-and-play deployment and unit maintenance is easily manageable via the intuitive, included Web interface.
  • Scaling, Cropping, and Bezel Compensation - Resolution scaling, cropping, and bezel compensation adjustment are available from the built-in Web interface.
  • EDID management - Resolve EDID issues with preloaded and custom options. Ideal for legacy videowalls that may have mixed-generation display panels.
  • Audio de-embedding - HDMI input audio can be de-embedded for multi-zone distribution or external multimedia processing.

Specs

Video Resolutions Input: Up to 8K/60 Hz 4:2:0, / 4K/120 Hz 4:4:4
Output: Up to 4K/60 Hz
HDR Formats Input: HDR10, HLG
Color Space YUV (Component), RGB
(CSC: ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020, DCI-P3 D65)
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Deep Color Up to 16-bit
Scaling Auto, Force 4K, Force 1080p
HDCP HDCP 2.3 and Earlier
Audio Formats Supported HDMI PCM 2.0-Ch., LPCM 5.1 & 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio, DTS:X
Audio Formats Supported Extracted (2-Ch. Port) PCM 2.0-Ch.
HDMI In/Out Up to 13 ft. (8K/30 Hz) or 49 ft. (4K/120 Hz)
Distances achieved with Bullet Train HDMI and AOC cables
HDMI In/Out (w/ AOC Cable) Up to 130 ft. (4K/60 Hz, 18 Gbps AOC)
Distances achieved with Bullet Train HDMI and AOC cables
Front Panel LCD Screen with 4-button navigation
Ports LAN, RS-232, USB Type-C
Web Interface Yes
Power Consumption (Total) 40 W Maximum
Power Supply Input: 100-240 VAC ~ 50/60 Hz
Output: 12 VDC, 5 A
Operating Temperature 23° to 125° F (-5° to 51° C)
Storage Temperature -4° to 140° F (-20° to 60° C)
Humidity Range 5% to 90% RH (No Condensation)



Dimensions

LxW/H 5.38" x 11.625" x 1.781"
Weight 2.875 lbs.
