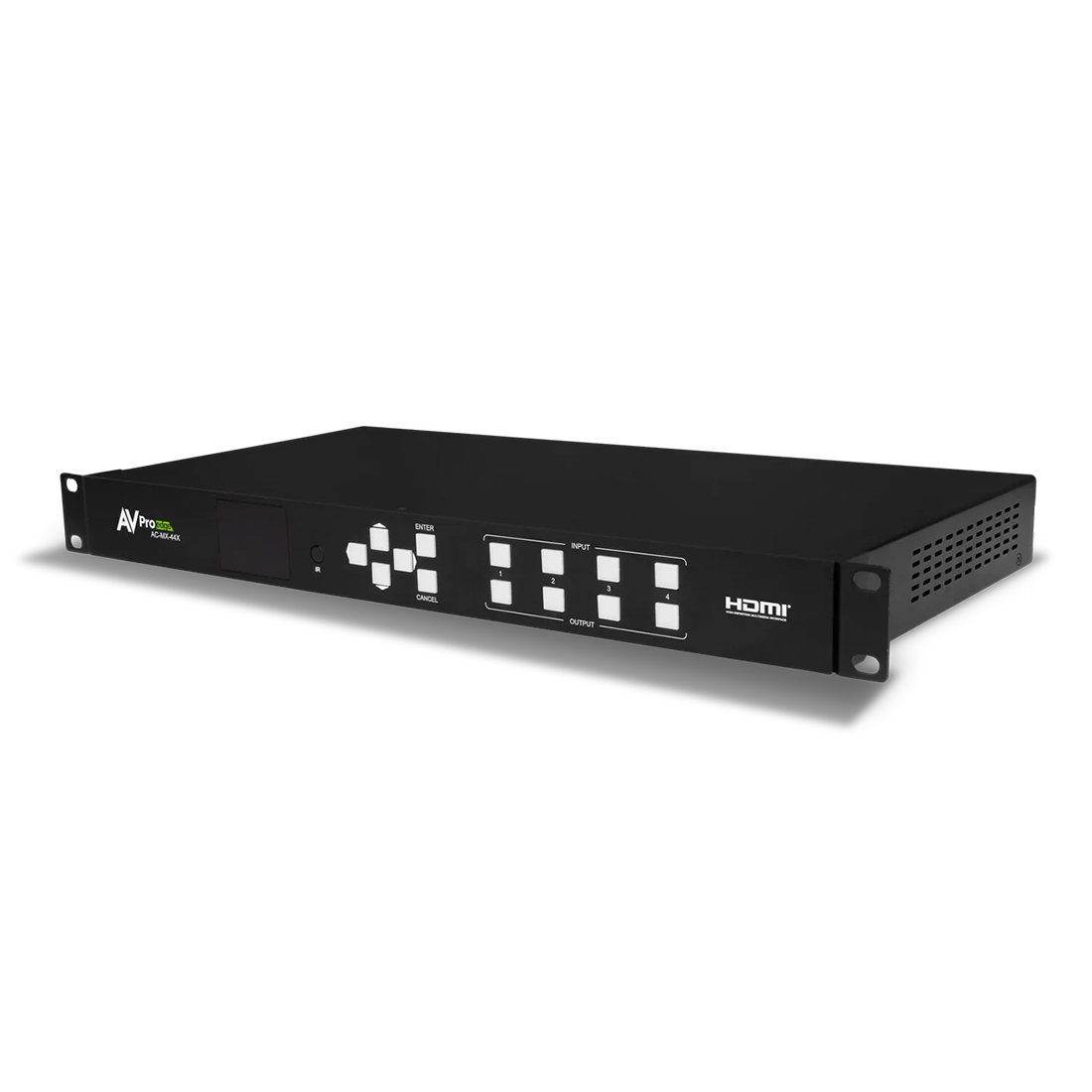

AVPro Edge 8k 48 Gbps HDMI 4x4 Matrix Switcher

Premium parts selection at the design stage and innovative implementation of sensitive circuit trace layouts enable the AC-MX-44X to internally traffic Full 8K Ultra HD 48 Gbps uncompressed signals unchanged, unlike similar products in the marketplace that are forced to alter bandwidth to pass signals.
MSRP: $3017.00
Manufacturer: AVPro Edge
SKU: AC-MX-44X

Features

  • Full 8K Ultra HD, Uncompressed 48 Gbps Bandwidth - The AC-MX-44X is fully compatible with all specified ITU 8K timings and bit rates. Its capabilities are future-forward through the complete evolution of the 8K format, making it a unique, invest-once product.
  • 5K Ultrawide 21:9 Aspect Ratio Capable - Synergistically supports 5K ultrawide 21:9 aspect ratio monitors and collaboration-configured displays.
  • 4K/144 Hz Support - Match next-gen display performance with 4K/144 Hz extended frame rate support for ultra-sharp visuals with impressively smooth motion, enhanced gaming performance, and general computing with reduced motion blur and increased responsiveness.
  • HDMI 2.1 Capabilities: Features essential for a next-level, high-quality gaming experience include ALLM, HFR, QFT, QMS, and VRR.
  • Integrated User and End-user Interface - The integrated User Interface simplifies installation and configuration for installers and IT personnel. A custom, easy-to-use, limited-access interface can be created for end-users (hospitality and office employees or homeowners).
  • Audio Delay, Audio De-embedding, Downscaling, EDID management, and Test Pattern Generation – AVPro hallmark features that provide valuable tools to fine-tune and maintain projects and provide a positive client experience.

Specs

Video Resolutions Up to 8K/60 Hz 4:2:0, 8K/30 Hz 4:4:4, 4K/144 Hz
HDR Formats Dolby Vision, HDR10, HDR10+, HLG
Color Space YUV (Component), RGB
(CSC: ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020, DCI-P3 D65)
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Deep Color Up to 16-bit (1080p), up to 12-bit (4K), up to 10-bit (8K)
Video Scaling (Optional) 8K to 4K and 8K/4K to 1080p
HDCP HDCP 2.3 and Earlier
Additional HDMI 2.1 Features ALLM, VRR, QMS, QFT, HFR
Audio Formats Supported HDMI LPCM up to 7.1, 192 kHz 24-Bit, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos (All Formats), Dolby AC-4, DTS-Digital Surround, DTS-ES Discrete, DTS-HD High Res Audio, DTS-HD Master Audio, DTS:X
Audio Formats Supported Extracted (S/PDIF) LPCM up to 5.1, 96 kHz 24-bit, Dolby Digital 5.1, DTS-HD High Resolution Audio
Audio Formats Supported Extracted (2-Ch. Port) PCM 2.0-Ch.
Audio Extraction Location Bind to Input, Bind to Output, or Matrix (Independent)
Audio Delay (Per Output, Extracted) Up To 630 ms
Ports LAN, RS-232, IR
  C4, RTI, ELAN, CRESTRON, URC (others available)
Web Interface Yes
Power Consumption (Total) 40 W Maximum
Power Supply Input: 100-240 VAC ~ 50/60 Hz
Output: 12 VDC, 5 A
Operating Temperature 23° to 125° F (-5° to 51° C)
Storage Temperature -4° to 140° F (-20° to 60° C)
Humidity Range 5% to 90% RH (No Condensation)



Dimensions

LxWxH 8.875" x 17.313" x 1.75"
Weight 6.65 lbs.
