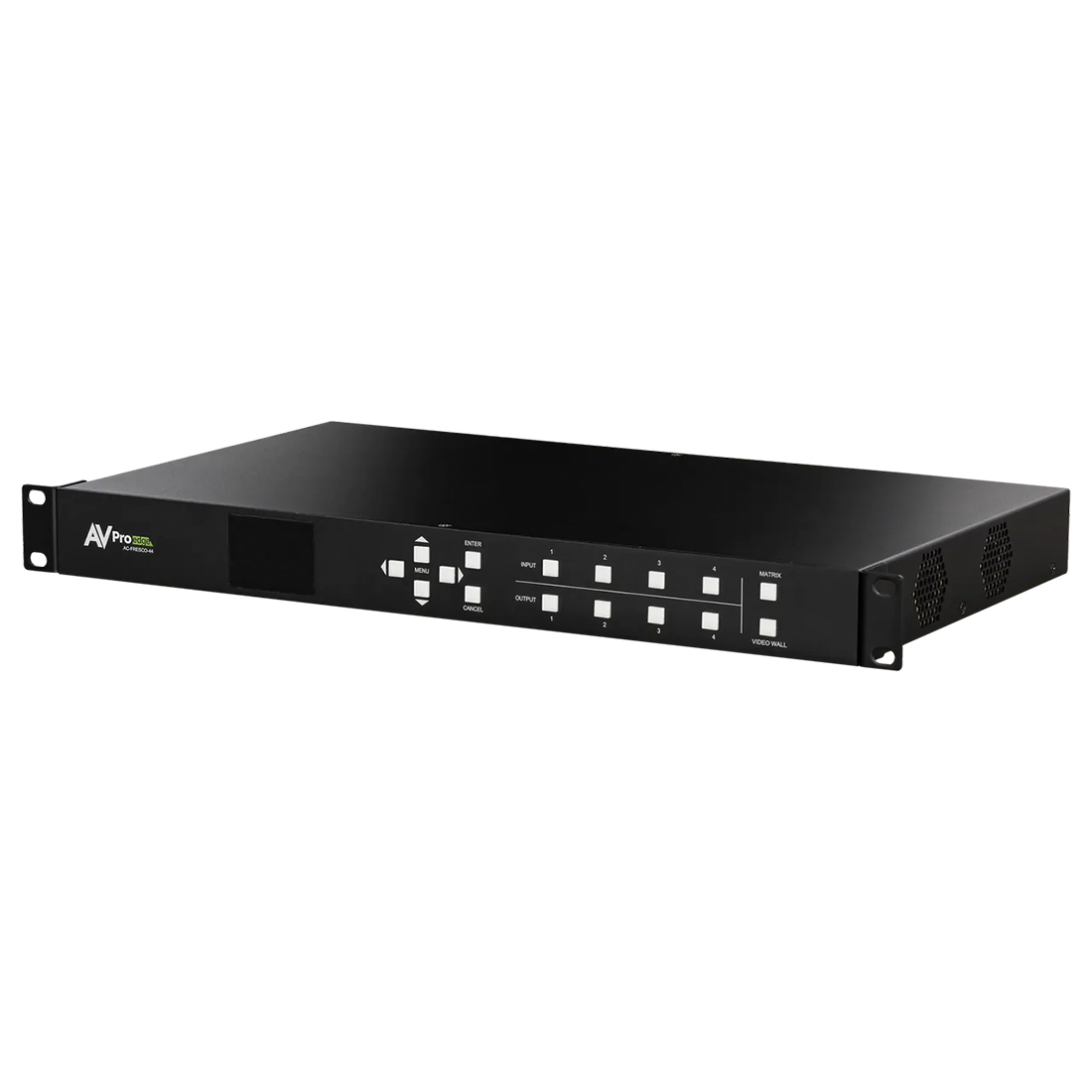

AVPro Edge 4K HDMI Video Wall Processor w/ 4 HDMI inputs

The AC-FRESCO-44 is another powerful, innovative AVPro Edge commercial integration tool destined to become an instant classic. Designed to provide instant, imperceptibly fast HDMI switching, this dual-mode hybrid HDMI matrix switcher with 2x2 video wall processing is perfect for new installations and especially for upgrading traditional 2x2 video walls with dynamic new capabilities. Retrofit traditional 2x2 single image configurations into offering four independent programs, with instant recall returning to a unified image at the press of a button. 4K to 1080p downscaling provides compatibility with legacy displays.
MSRP: $2883.00
Manufacturer: AVPro Edge
SKU: AC-FRESCO-44

Features

  • Dual Display Modes – Functions as a video wall processor for a 2x2 native unified single source configuration (cascade-capable for larger arrays) or as an HDMI matrix switcher to display four separate sources.
  • Instant HDMI Source Switching – Delay-free, imperceptible instant switching, suitable for real-time production environments. In a monitored situation, switch from quad sources to a single source to immediately highlight live action.
  • Web GUI Video Wall Configuration – Use the built-in browser-based Web GUI to plot default picture mapping coordinates for each display in the video wall.
  • Scalable Configurations –  HDMI source loop outputs with companion extracted analog audio and S/PDIF outputs invite limitless, creative, synchronized, cascading expandability into wall arrays of any size.
  • Supports 4K/60 fps 4:4:4 – Legendary AVPro Edge superior video signal processing delivers images with the highest fidelity.
  • Web Interface and Front Panel Display and Control – Limited control functionality can be assigned with User-Only credentials, permitting video wall and source assignment, and audio control access only, keeping Admin settings secure.
  • 4K Downscaling – Easily retrofit and refresh legacy installations with downscaling to 1080p. Update traditional single-source video walls with HDMI source matrixing.
  • Audio Delay and Extraction - Up to 630 ms of audio delay control through extracted audio aligns image and audio to eliminate distracting lip-sync issues.
  • Built-in Troubleshooting – EDID management and test pattern generation verify signal paths and ensure system compatibility.
  • LAN and RS-232 Control – Automation friendly with a comprehensive API.
  • AVPro Edge Warranty – Covered by AVPro’s 10-year no-hassle warranty

Specs

  • Power Consumption (Total): 33 W Maximum
  • Power Supply
    •  Input: 100-240 VAC ~ 50/60 Hz
    • Output: 48 VDC, 0.5 A
  • Video Resolutions: 4K/60 Hz 4:4:4
  • HDR Formats: Dolby Vision, HDR10, HDR10+, HLG
  • Color Space: YUV (Component), RGB (CSC: ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020, DCI-P3 D65)
  • Chroma Sampling: 4:4:4, 4:2:2, 4:2:0
  • Deep Color: Up to 12-bit
  • HDCP: HDCP 2.3 and earlier
  • Video Scaling (optional): 4K to 1080p / 720p, 1080p to 720p
  • Loop Out: One loop out per HDMI input
  • Audio Formats Supported (HDMI): LPCM up to 7.1, 192 kHz 24-bit, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos (All Formats), Dolby AC-4, DTS-Digital Surround, DTS-ES Discrete, DTS-HD High Res Audio, DTS-HD Master Audio, DTS:X
  • Audio Formats Supported (S/PDIF): LPCM up to 5.1, 96 kHz 24-bit, Dolby Digital 5.1, DTS-HD High Resolution Audio
  • Audio Formats Supported (2-Ch.): PCM 2-Ch.
  • Audio Extraction Mode: Bind to Input, Bind to Output, or Matrix (Independent)
  • Audio Delay (Per Output, Extracted): Up to 630 ms
  • Front Panel: LCD Screen with 4-button navigation
  • Ports: LAN, RS-232, USB Type-C
  • Web Interface
  • HDMI: Type-A
  • LAN: RJ45 w/ Web Interface & Control
  • Audio (Extracted Digital): S/PDIF
  • Audio (Extracted Analog): 5-pin Euroblock (Balanced)
  • RS-232: 3-pin Euroblock
  • ISP / CTL: USB Type-C

Dimensions

  • 8.87" x 17.32" x 1.73"
  • 6.9 lbs
