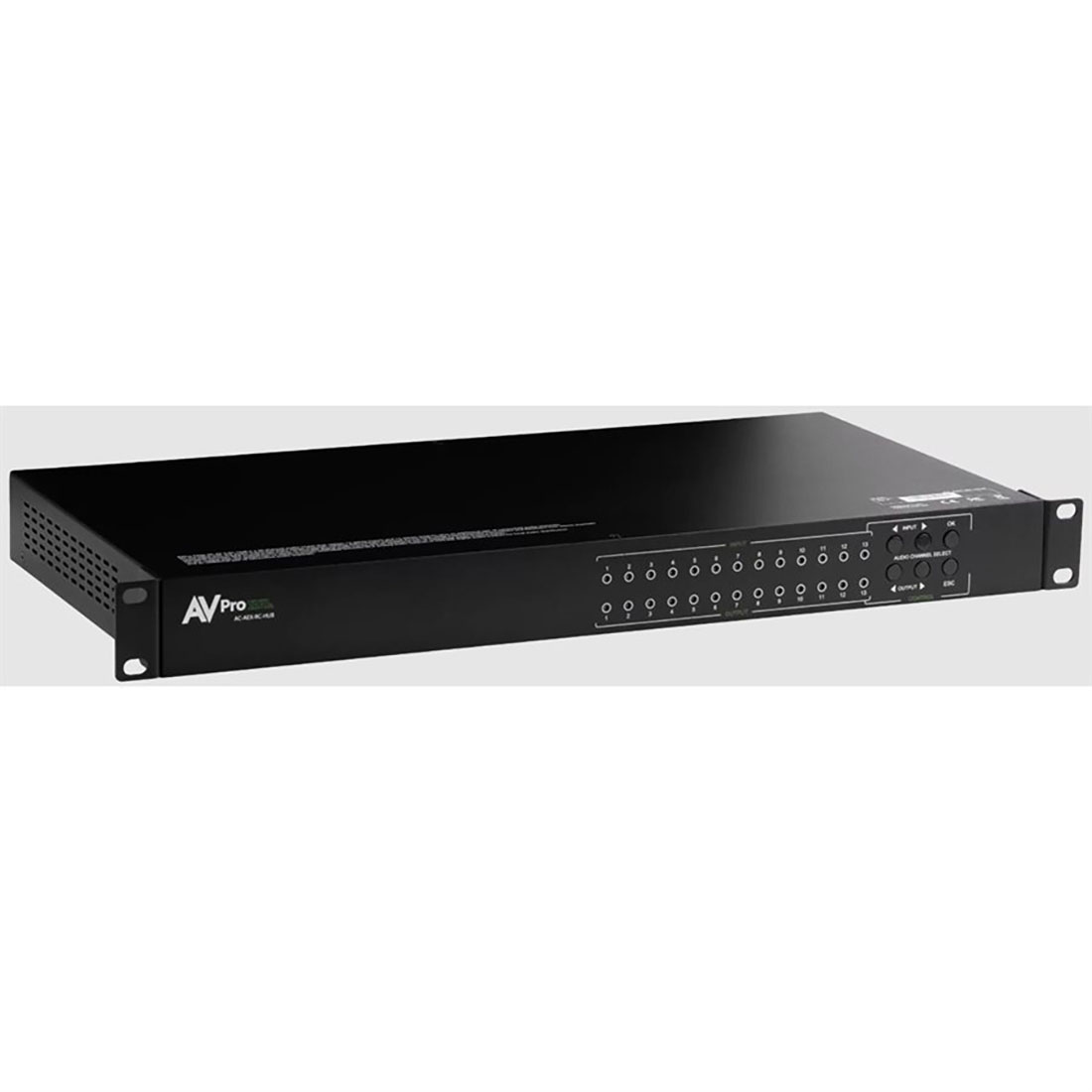

AVPro Edge 12x12 Audio-Only Matrix Switching Hub with 8 AEX

AVPro Edge 12x12 Audio-Only Matrix Switching Hub with 8 AEX
MSRP: $2018.00
Manufacturer: AVPro Edge
SKU: AC-AEX-RC-HUB
Features
  • 12 Audio Inputs, 8 Via Power over Cable (POC)
  • AC-AEX-T in-Rack Use
  • 12 Audio Outputs
  • TV Audio from Architectural Speakers
  • Expand Audio Outputs on many AVPro Edge Video Matrices
  • Audio Adjustments
Specs
  • Mute: Available on all Outputs
  • Analog Input Voltage: 1Vrms, 2.828 VP-P
  • Analog Output Voltage: 1Vrms, 2.828 VP-P
  • Digital: 2 Channel PCM, Supported Rates 32, 44.1, 48, 88.2, 96, 176, 192 kHz
  • Latency: 30ms
  • Interfaces: RS-232, IP/LAN
  • AEX Audio (Input): 8
  • RCA (Input): 4
  • Digital (Input/Toslink): 4
  • AEX Audio (Output): 0
  • RCA (Output): 12
  • Digital (Output/Toslink): 12
  • Power Consumption (Total): 3 watts max
  • DC Power: DC 12V 1A
Dimensions
  • Size (H x W x D): 1.75” x 17.5” x 9.25”
  • Shipping Size (H x W x D): 5” x 22.5” x 15”
  • Weight: 6.6 lbs.
  • Shipping Weight: 9 lbs.
What’s in the Box
  • AC-AEX-RC-HUB (Audio Matrix Switching Hub)
  • 12V/2A Locking Power Supply
  • 1 x Three Pin Terminal Block
  • 2 x Rack Mounting Brackets (attached)
  • 4 x Rubber Feet and Screws
  • 1 x Rack Grounding Wire

Specs

MuteAvailable on all Outputs
Analog Input Voltage1Vrms, 2.828 VP-P
Analog Output Voltage1Vrms, 2.828 VP-P
Digital2 Channel PCM, Supported Rates 32, 44.1, 48, 88.2, 96, 176, 192 kHz
Latency30ms
InterfacesRS-232, IP/LAN
AEX Audio (Input)8
RCA (Input)4
Digital (Input/Toslink)4
AEX Audio (Output)0
RCA (Output)12
Digital (Output/Toslink)12
Power Consumption (Total)3 watts max
DC PowerDC 12V 1A



Dimensions

Size (H x W x D)1.75” x 17.5” x 9.25”
Shipping Size (H x W x D)5” x 22.5” x 15”
Weight6.6 lbs.
Shipping Weight9 lbs.



Features
  • 12 Audio Inputs, 8 Via Power over Cable (POC)
  • AC-AEX-T in-Rack Use
  • 12 Audio Outputs
  • TV Audio from Architectural Speakers
  • Expand Audio Outputs on many AVPro Edge Video Matrices
  • Audio Adjustments
Specs
  • Mute: Available on all Outputs
  • Analog Input Voltage: 1Vrms, 2.828 VP-P
  • Analog Output Voltage: 1Vrms, 2.828 VP-P
  • Digital: 2 Channel PCM, Supported Rates 32, 44.1, 48, 88.2, 96, 176, 192 kHz
  • Latency: 30ms
  • Interfaces: RS-232, IP/LAN
  • AEX Audio (Input): 8
  • RCA (Input): 4
  • Digital (Input/Toslink): 4
  • AEX Audio (Output): 0
  • RCA (Output): 12
  • Digital (Output/Toslink): 12
  • Power Consumption (Total): 3 watts max
  • DC Power: DC 12V 1A
Dimensions
  • Size (H x W x D): 1.75” x 17.5” x 9.25”
  • Shipping Size (H x W x D): 5” x 22.5” x 15”
  • Weight: 6.6 lbs.
  • Shipping Weight: 9 lbs.
What’s in the Box
  • AC-AEX-RC-HUB (Audio Matrix Switching Hub)
  • 12V/2A Locking Power Supply
  • 1 x Three Pin Terminal Block
  • 2 x Rack Mounting Brackets (attached)
  • 4 x Rubber Feet and Screws
  • 1 x Rack Grounding Wire
