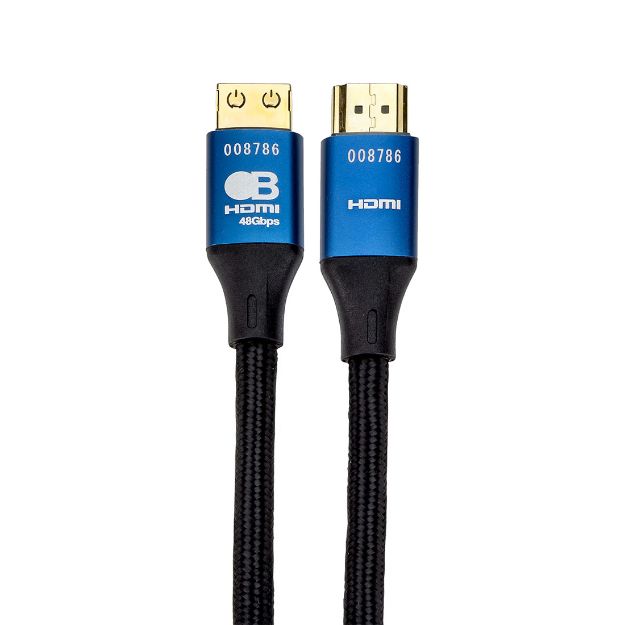

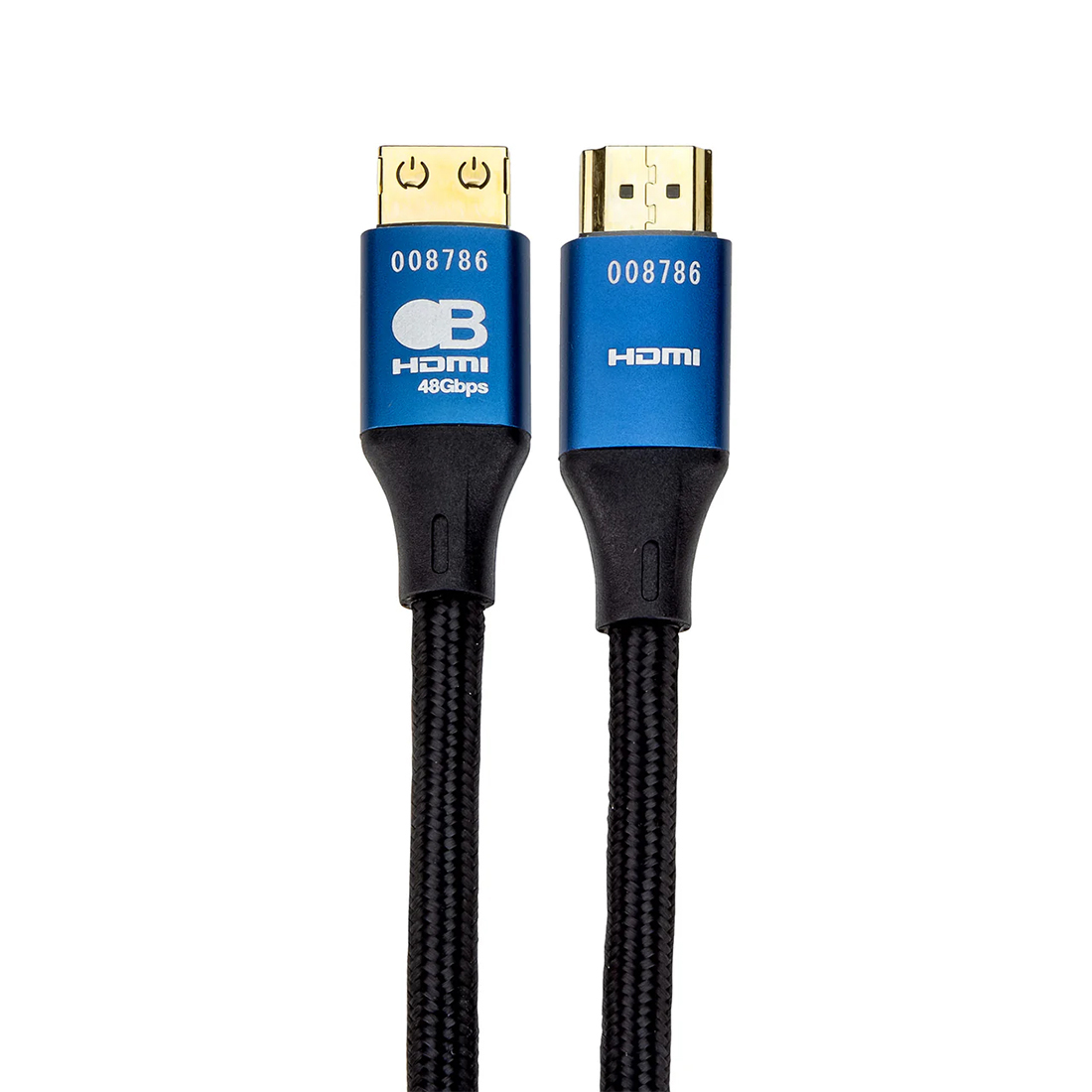

AVPro Bullet Train .7M Premium HDMI Cable (48Gbps) Steel Head

Bullet Train Professional HDMI™ cables are engineered under strict EMC standards to minimize interference and ensure robust signal integrity.
MSRP: $257.00
Manufacturer: AVPro Edge
SKU: BT-PHC-007

Features

  • Forward-reaching Design – Engineered to meet advanced electromagnetic compliance regulations (EMI/RFI), these cables reduce spurious noise in compact, high-density AV setups, ensuring a cleaner signal path.
  • 100% End-to-End EMC Shielding – Each conductor and the headshell are fully shielded to block both outgoing and incoming interference, preserving signal integrity and preventing retransmission of noise.
  • Exclusive C-Lock Patented Headshell – The proprietary headshell incorporates Contact Improvement Technology for accurate, high-tensile interface coupling with devices. C-Lock ensures maximum contact pressure when inserted into device HDMI ports and enhanced compression on internal conductor pins to provide additional grip while maximizing signal transmission. A unique clasp at the base of the internal one-piece spine cinches the cable jacket and the braid to ensure Bullet Train Professional HDMI cables deliver the best cable strain relief in the industry while preventing deformative mechanical “creep” to internal conductors.
  • Oxygen-Free Copper Conductors – Constructed with 99.99% OFC (101% IACS conductivity) for reliable performance at ambient temperatures, delivering superior signal transfer in typical installation environments.
  • Electrostatic Discharge Resistant Sleeve – The fray-resistant braided sleeve shields against static buildup, making it ideal for settings with vibration, such as yachts or aircraft.
  • Serial-Numbered Headshells – Both headshells are serial-numbered to enable fast, easy identification of signal paths between components. Serial numbers can be logged into cable legends, eliminating labor-intensive label marking.

Specs

Connector Type HDMI Type-A, male
Max Resolution Timing 8K/60 Hz 4:2:0, 10-bit
Max Bandwidth 48 Gbps
Retention Force 3 kg / 6.6 lbs.
Wire Gauge 30 AWG
Internal Wire Construction 8C (4 x High-speed differential FRL pairs)
2C (1 x HEAC/eARC differential pair)
3C (3 x 'DDC-SDA', 'DDC-SCL' & 'CEC')
1C (1 x '+5 V')
Cable Impedance 100 Ohms ±10 Ohms
Plug Material Gold-plated, 0.3 µin thick layer
Casing Material Black Molded PVC
Outer Shielding Material PVC Jacket (UL VW-1)



Dimensions

Cable Outer Diameter 6.3 ± 0.2 mm
Plug Dimensions (LxWxD) 1.57" x .71" x .39"
Bend Radius 40 mm



Features

  • Forward-reaching Design – Engineered to meet advanced electromagnetic compliance regulations (EMI/RFI), these cables reduce spurious noise in compact, high-density AV setups, ensuring a cleaner signal path.
  • 100% End-to-End EMC Shielding – Each conductor and the headshell are fully shielded to block both outgoing and incoming interference, preserving signal integrity and preventing retransmission of noise.
  • Exclusive C-Lock Patented Headshell – The proprietary headshell incorporates Contact Improvement Technology for accurate, high-tensile interface coupling with devices. C-Lock ensures maximum contact pressure when inserted into device HDMI ports and enhanced compression on internal conductor pins to provide additional grip while maximizing signal transmission. A unique clasp at the base of the internal one-piece spine cinches the cable jacket and the braid to ensure Bullet Train Professional HDMI cables deliver the best cable strain relief in the industry while preventing deformative mechanical “creep” to internal conductors.
  • Oxygen-Free Copper Conductors – Constructed with 99.99% OFC (101% IACS conductivity) for reliable performance at ambient temperatures, delivering superior signal transfer in typical installation environments.
  • Electrostatic Discharge Resistant Sleeve – The fray-resistant braided sleeve shields against static buildup, making it ideal for settings with vibration, such as yachts or aircraft.
  • Serial-Numbered Headshells – Both headshells are serial-numbered to enable fast, easy identification of signal paths between components. Serial numbers can be logged into cable legends, eliminating labor-intensive label marking.
