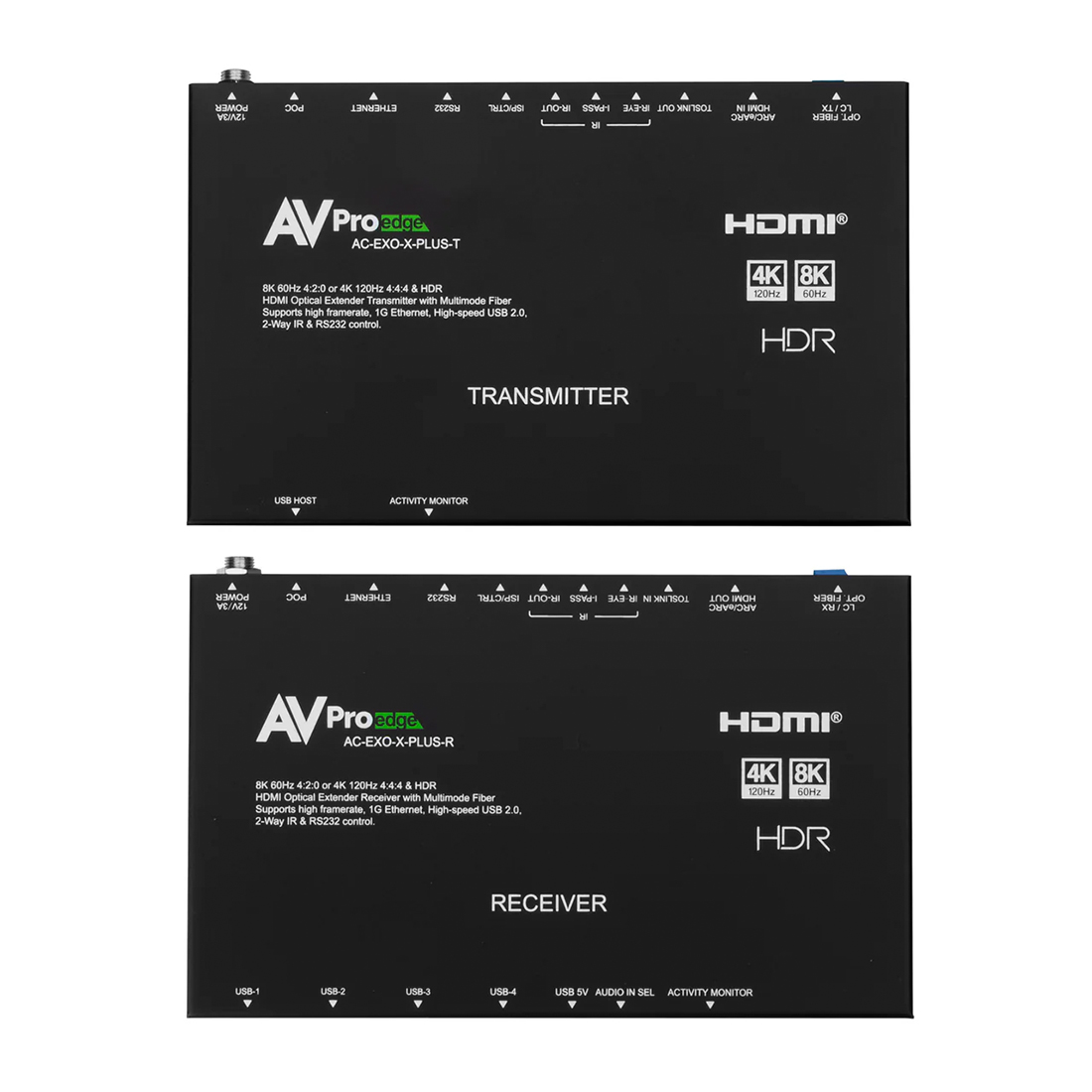

AVPro 8K 48 Gbps Fiber Optic Extension Kit with USB, eARC & ARC

The advantages designed into the AC-EXO-X-PLUS-KIT make enterprise conferencing functionality, intra- or inter-office, effortless. HDMI eARC/ARC audio extraction integrates high-quality audio into sizeable conference environments to solidify user engagement. USB 2.0/480 Mbps KVM and 1 Gbps Ethernet connectivity simplify BYOD (Bring Your Own Device) setups, allowing presenters to connect peripherals and establish network connections while eliminating potential technical distractions.
MSRP: $2008.00
Manufacturer: AVPro Edge
SKU: AC-EXO-X-PLUS-KIT

Features

  • Full 8K Ultra HD Uncompressed 48 Gbps with Dolby Vision, HDR10, HDR10+, and HLG Support - The AC-EXO-X-PLUS-KIT is fully compatible with all specified ITU 8K timings and bit rates. Its capabilities are future-forward through the complete evolution of the 8K format, making it a unique, invest-once product.
  • Near-Zero Latency - Latency is less than 8 microseconds, clinically measurable but visually imperceptible.
  • Extend USB 2.0/480 Mbps and 1 Gbps Ethernet - USB 2.0 extends KVM functionality for PCs or peripheral devices like mouse/keyboard. A 1 Gbps ethernet hub port extends LAN connectivity to a local display or other internet-connected devices.
  • eARC/ARC support - ARC simplified audio connections. However, high-bitrate audio formats like Dolby Atmos are transmitted from TV to sound systems via eARC, with lip-sync correction and improved CEC support.
  • IR & RS-232 Control - Configurable, bi-directional IR and RS-232 control.
  • 4K/144 Hz Support - Match next-gen display performance with 4K/144 Hz extended frame rate support for ultra-sharp visuals with impressively smooth motion, enhanced gaming performance, and general computing with reduced motion blur and increased responsiveness.
  • Variable Refresh Rate - VRR synchronizes display refresh rates with GPU frame rates, reducing lag, judder, and frame tearing for smoother gameplay and more fluid video output.
  • Fiber Signal Transmission - In commercial environments where airborne digital “hash” swirls around unabated, fiber optic connectivity provides immunity from frequency-related interference to preserve image fidelity.EDID management - Resolve EDID issues with preloaded and custom options. An EDID Copy function allows for acute copying and saving of known, working EDIDs for stable kit operation and HDCP repeatability.Downscaling Capable: Precision downscaling circuitry is incorporated into the AC-EXO-X-PLUS-KIT to scale 8K & 4K, including HDR to 1080p, where a legacy display device remains in use.
  • Test Pattern Generation – The Transmitter can generate a test pattern to verify to aid with fiber verification, connected device configuration settings, or source viability.
  • PoC Power - Onboard output power for downstream devices (specifically RX unit)

Specs

  • Video Resolutions: Up to 8K/60 Hz 4:4:4, 8K/30 Hz 4:4:4, 4K/120 Hz
  • HDR Formats: Dolby Vision, HDR10, HDR10+, HLG
  • Color Space: YUV (Component), RGB (CSC: ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020, DCI-P3 D65)
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
  • Color Bit Depth: Up to 16-bit
  • Downscaling: 8K / 4K to 1080p
  • Audio Formats Supported (HDMI): PCM 2.0-Ch, LPCM 5.1 & 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio, DTS:X
  • Audio Formats Supported Extracted (TOSLINK)LPCM up to 5.1, 96 kHz 24-bit, Dolby Digital 5.1, DTS High Resolution Audio
  • ARC / eARC Formats Supported (HDMI): PCM 2.0-Ch, LPCM 5.1 & 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio, DTS:X
  • ARC / eARC Formats Supported (TOSLINK): PCM 2.0-Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD
  • USB Extension
    • Version: USB 2.0
    • Ports: (1) USB Type-C (Transmitter), (4) USB Type-A (Receiver)
  • Bandwidth: 1 Gbps
  • Port: RJ45
  • Fiber Type: Multimode OM3
  • Fiber Connector: Simplex LC (Lucent Connector)
  • Recommended Fiber: OM3 Cleerline SFF™ Fiber
  • OM2: Up to 40 m
  • OM3: Up to 200 m
  • OM4: Up to 300 m
  • HDMI In/Out (4K/60 Hz 4:4:4): Up to 50 ft. (using Bullet Train HDMI)
  • HDMI In/Out (w/ AOC Cable) (4K/60 Hz 4:4:4): Up to 130 ft. (using Bullet Train AOC)
  • Bandwidth: 48 Gbps (FRL6)
  • HDCP: HDCP 2.3 and earlier
  • Operating Temperature: 23° to 125° F (-5° to 51° C)
  • Storage Temperature: -4° to 140° F (-20° to 60° C)
  • Humidity Range: 5% to 90% RH (No Condensation)
  • Power Consumption (Total): 12 W Maximum
  • Power SupplyInput: 12 VDC/3 A Power Supply
  • Output: 48 VDC, 0.5 A

Dimensions

  • 4.31" x 7.06" x 0.87"
  • 1.26 lbs
