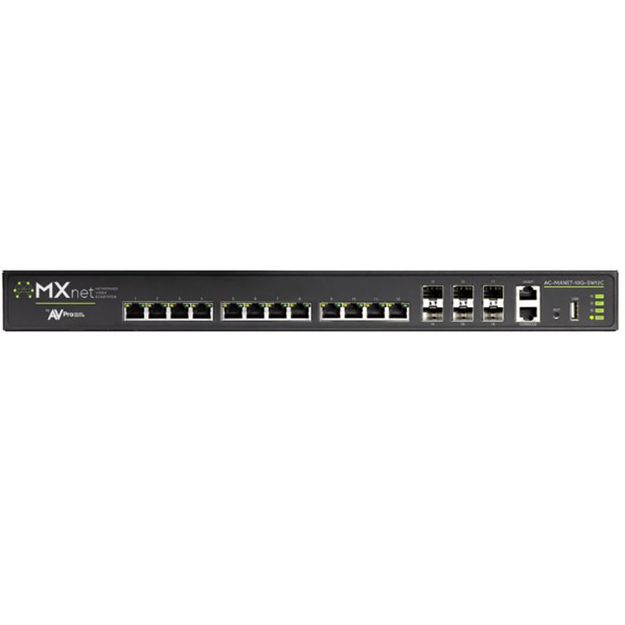

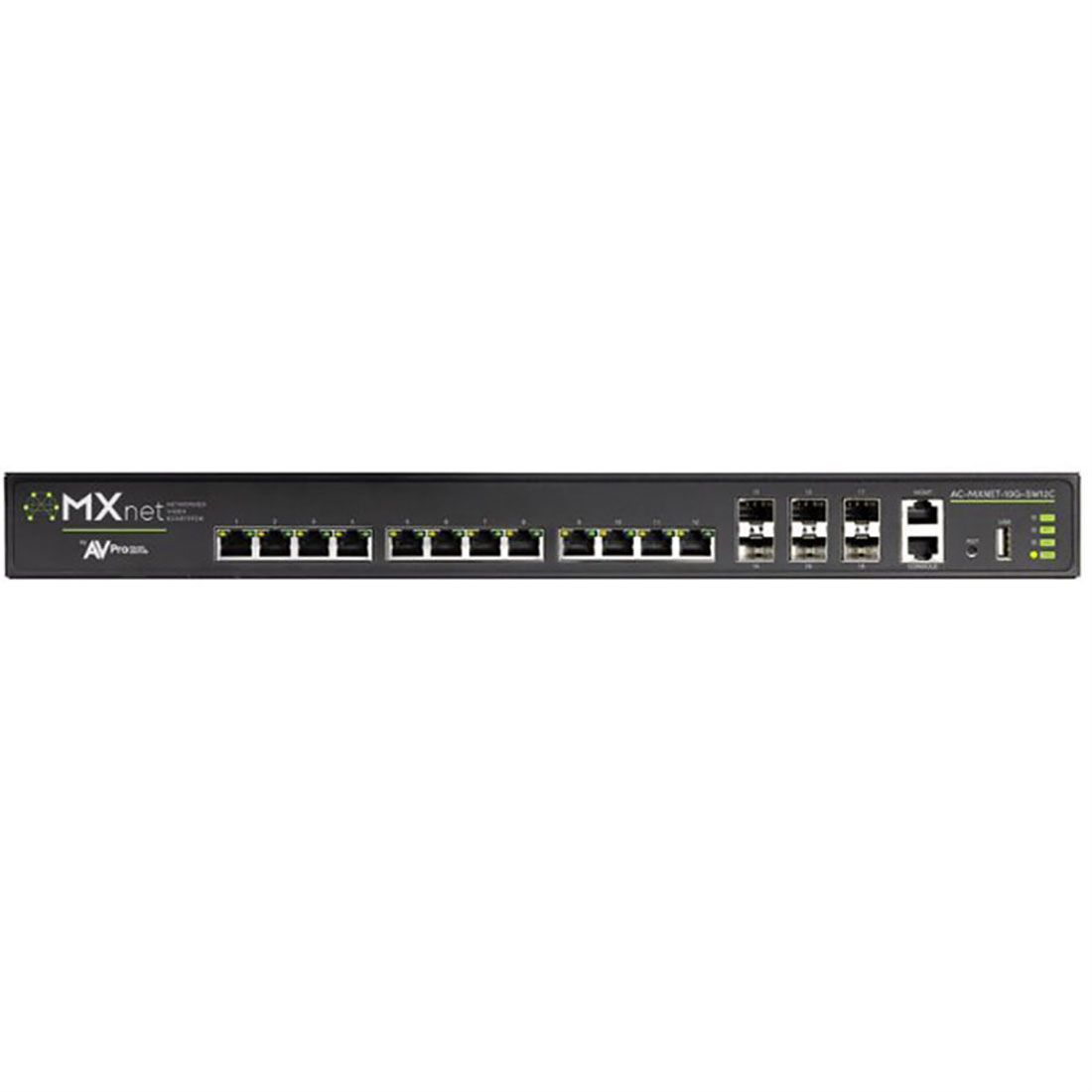

| Ethernet | (12) x 10G-MGIG RJ45 Ports (POE/POE+/POE++), (6) x 1G/10G/25GBPS SFP28 Ports, (1) x 10/100/1000 Base-T Management Port (MGMT) |
| RS232 | (1) x RJ45 Console Port (Out-of-Band) |
| USB | (1) x USB 2.0 Type-A for MXNet Service and Storage |
| Ethernet Distance | 330 FT over CAT5E |
| SFP+ and Fiber Distance | 10G SFP+ DAC Cable up to 1 meters, 10G SFP+ AOC Cable up to 3 meters, 10G SFP+ Multimode Transceiver over Multimode Fiber up to 550 meters 10G SFP+ Single Mode Transceiver over Single Mode Fiber up to 20 Kilometers |
| Max SDVOE Endpoints | 18 |
| Switching Capacity | 540 GBPS |
| Forwarding Rate | 405 MPPS |
| MAC Address | 32K |
| Routing Table | 32K |
| Jumbo Frame | 12K |
| L3 Interface | 8K |
| Max Power Consumption | 430W |
| POE Power | IEEE 802.3AF (POE 15.4W)/IEEE 802.3AT (POE+ 30W)/IEEE 802.3BT (POE++ 90W)/Total POE Power Budget | 370W |
| Thermal Dissipation | 1,470.256 BTU/HR |
| Power Supply Unit | AC-100~240VAC, 50~60Hz/DC-Input 48V-57V/Default with two power supply units, one DC and one AC |
