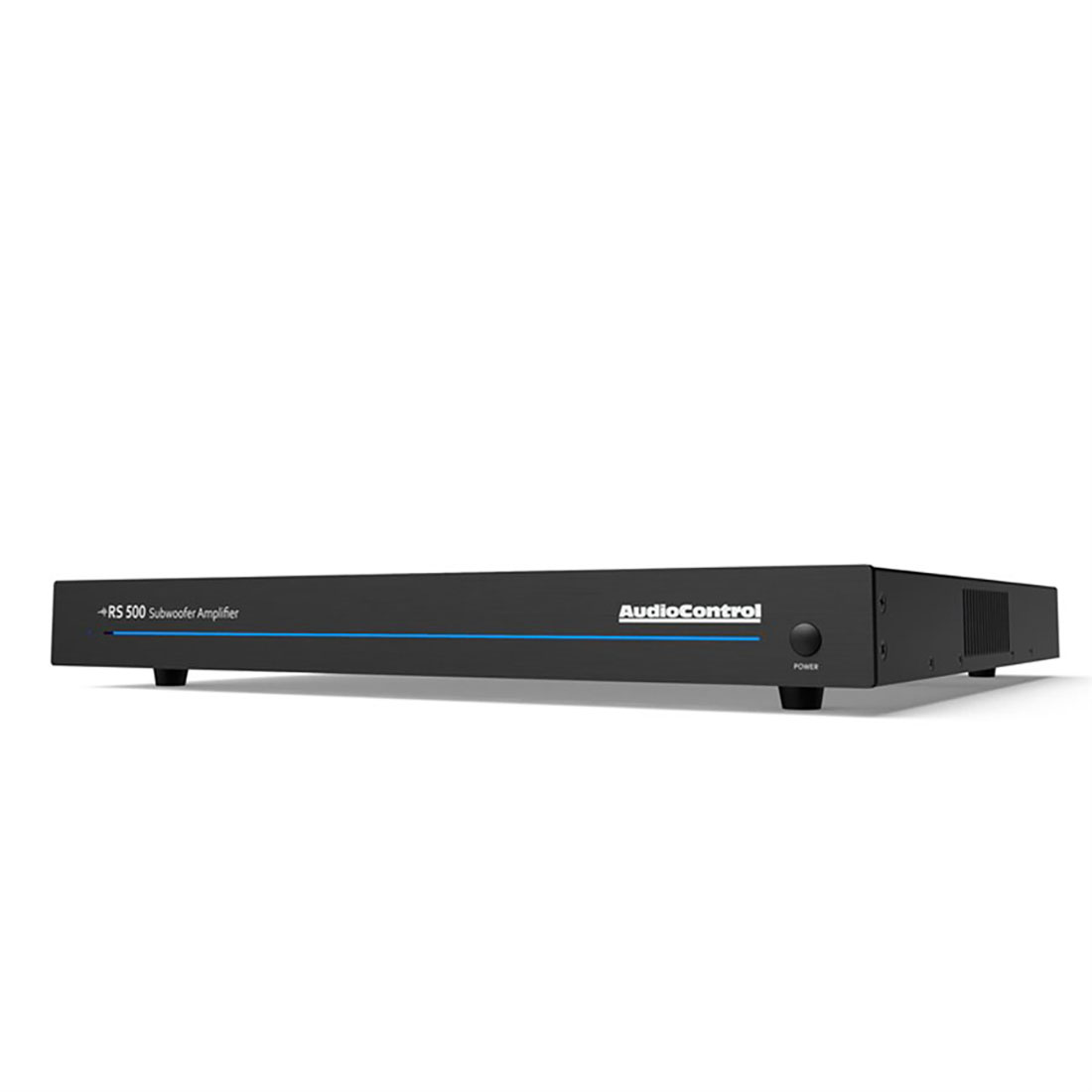

AudioControl DSP Controlled Subwoofer Amplifer (500w)

The power of AudioControl’s multi-award-winning DSP engine, coupled with features such as graphic equalization, parametric equalization, high/low filter cutoff, and incremental signal phase with delay compensation, put precise calibration and fine-tuning control at your fingertips for accurate, authoritative bass response. RS Series amplifiers are the definitive choice to power passive subwoofers in entertainment systems that demand the very best.
MSRP: $2049.00
Manufacturer: AudioControl
SKU: RS-500

Features

  • Digital Signal Processing (DSP) Performance
  • Six-band Graphic EQ
  • Eight-band Parametric EQ
  • Crossover with Subsonic Filter
  • Built-In Speaker Optimization Profiles
  • Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
  • Network Programmable Graphic & Parametric Equalization with User Memories
  • Digital Signal Sense
  • AudioControl LightDrive Anti-Clipping Speaker Protection
  • Balanced Inputs/Thru
  • Unbalanced Input/Thru
  • LFE Input/Thru
  • Speaker Level Inputs

Specs

Inputs
Audio Inputs1 Balanced, 2 Unbalanced, 1 LFE, 2 Speaker Level
Nominal sensitivity0.5V to 4V (user selectable)
Signal to Noise (A-wtd ref full output)98 dB
Frequency Response15 Hz – 350 Hz



Outputs
Amplifier Channels1
Continuous power output:  500W
Minimum Speaker Load2Ω
Loop/Thru Audio Outputs1 Balanced, 2 Unbalanced, 1 LFE
Total Harmonic Distortion0.1%



Control
Remote Power Trigger+12 VDC or Dry Contact Closure
Network Connection/Protocol10BaseT Ethernet TCP/IP
Communication ProtocolHTTP or Telnet
12 Volt Trigger Outputs1
IR Receiver Inputs1



Rack Size1U



Dimensions

Size (W x H x D)17” x 1.75” x 17.5” includes terminals and feet
Weight14.9 lb.
