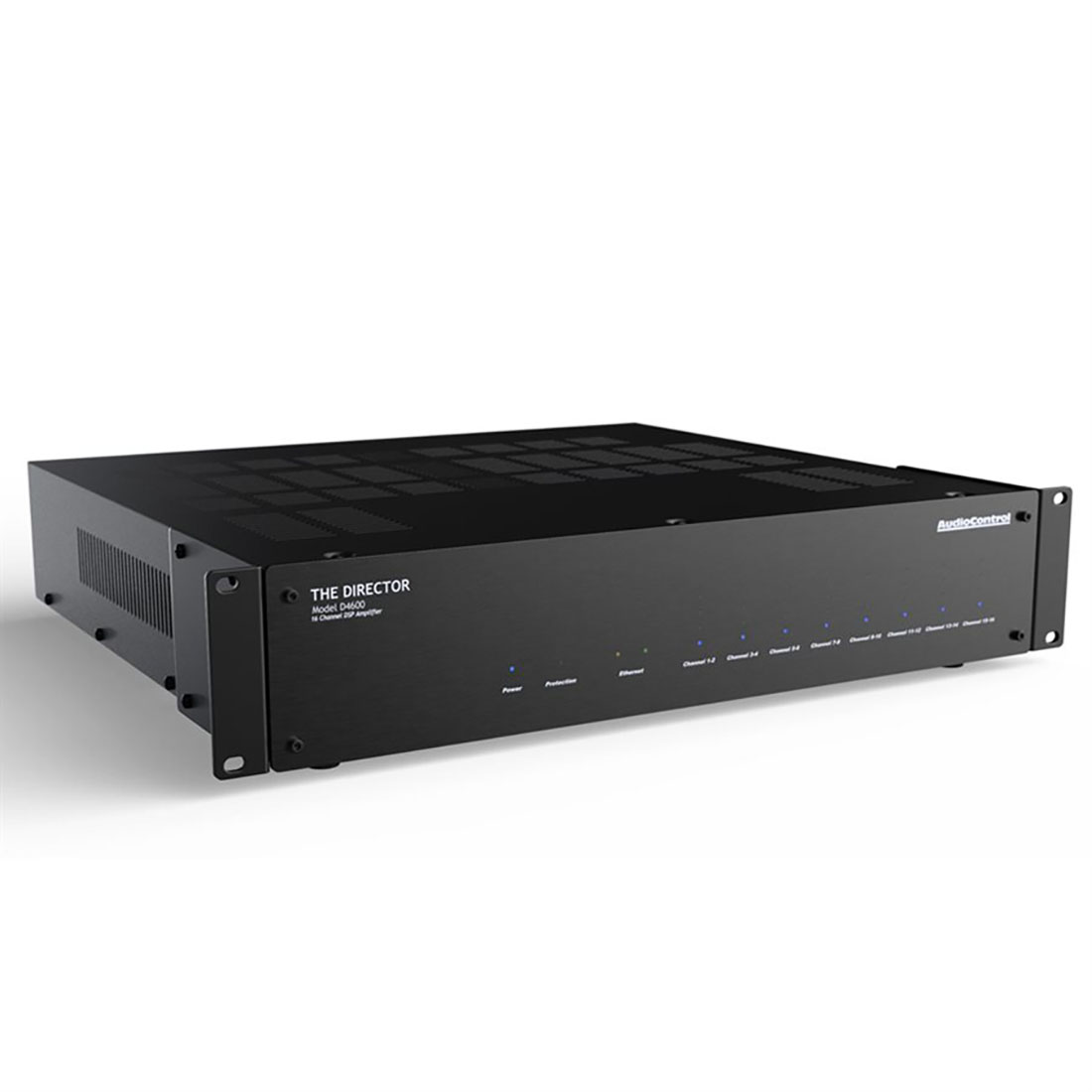

AudioControl Director Series 2U 16-Channel DSP Amplifier

In the most demanding applications for all system amplification and IP programmable signal processing tasks, the Director® D Series Model D4600 has the power and flexibility to operate as a standalone DSP amplifier or partnered with 3rd party over-control systems from companies such as Control4, Crestron, RTI and Savant. Configure graphic and parametric equalization, crossover points, volume settings, zone grouping, network monitoring, and more using the onboard DSP.
Manufacturer: AudioControl
SKU: DIRECTOR-D4600

Features

  • Network DSP Amplifier With Volume Control
  • 16 Channels x 100 Watts at 8 Ohms (All Channels Driven)
  • 16 Channels x 200 Watts at 4 Ohms (All Channels Driven)
  • Bridgeable to 400 Watts of Bridged Power
  • Digital Signal Processing (DSP) Performance
  • Built-In Speaker Optimization Profiles
  • Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
  • Network Programmable Graphic & Parametric Equalization with User Memories
  • Assignable Names for All Zones & Amplifier
  • Digital Signal Sense
  • Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
  • AudioControl LightDrive Anti-Clipping Speaker Protection
  • Local Inputs with Pass Thru / Loop Outputs
  • Dual Analog Bus Inputs
  • Compact 2U Rack Space (Includes Rack Mount Brackets)

Specs

  • Inputs
    • Inputs: 8 Stereo Local Inputs, 2 Stereo Bus Inputs
    • Input Sensitivity: 1 Vrms for full output, level at maximum
    • Input Gain: 30 dB
  • Outputs
    • Amplifier Channels: 16
    • Power Output (8Ω): 100W per channel
    • Power Output (4Ω): 200W per channel
    • Power Output (8Ω Bridged Mono): 400W
    • Minimum Speaker Load: 4Ω
    • Preamp Audio Outputs: 8 Stereo Local Loop Outputs, 1 Stereo Bus Loop Output
  • Control
    • Remote Power Trigger: +12 VDC or Dry Contact Closure
    • Network Connection/Protocol: 10BaseT Ethernet TCP/IP
    • Communication Protocol: HTTP or Telnet
  • Rack Size: 2U

Dimensions

  • Size (W x H x D): 17” x 3.5” x 15.5” includes terminals and feet
  • Weight: 19.2 lb.
