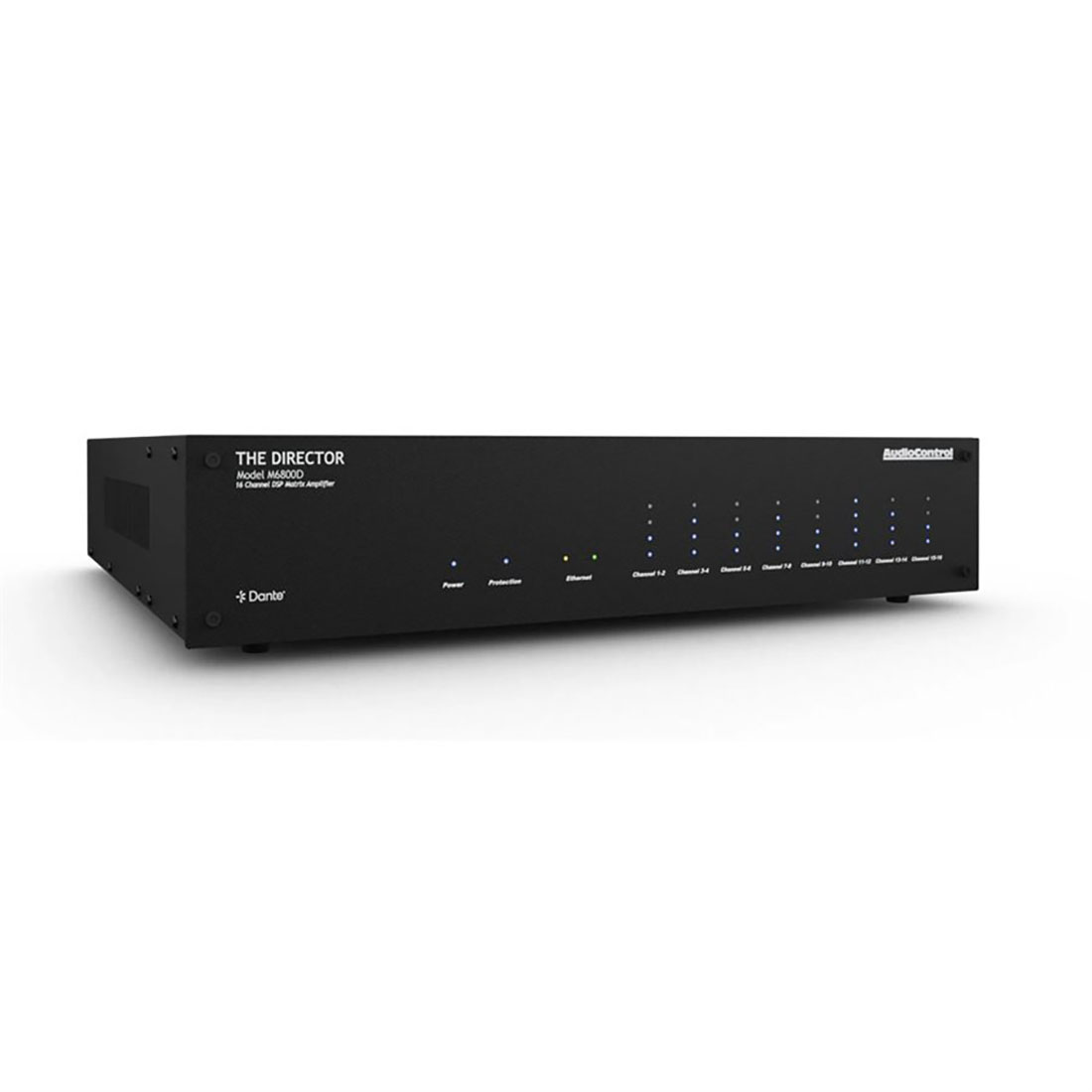

AudioControl Director Series 1U 16-Channel Matrix Amp w/ Dan

AudioControl Director Series 1U 16-Channel Matrix Amp w/ Dan
MSRP: $7354.00
Manufacturer: AudioControl
SKU: ACP-DMZ-M6800D

Features

  • Support for Dante audio
  • Network DSP Amplifier with Volume Control
  • 16 channels x 100 watts into 8 ohms (all channels driven)
  • 16  channels x 200 watts into 4 ohms (all channels driven)
  • 8 Bridgeable Channels of 400 watts into 8 ohms
  • Built-in Speaker Optimization profiles
  • Ethernet port for status monitoring, source switching, and 12 volt trigger control
  • Network programmable graphic and parametric equalization with user memories
  • Assignable names for amplifiers and all zones
  • Digital signal sense
  • Master 12 VDC In/Out trigger
  • Programable electronic crossover for local subwoofer applications; subsonic filter
  • AudioControl LightDrive™ Anti-Clipping Speaker Protection
  • Local inputs with pass through/loop outputs
  • Dual analog bus inputs
  • Compact 2 U rack space (includes rack mount brackets)
  • Commercial or residential installation compatible

Specs

  • Inputs: 8 stereo local inputs, 2 coaxial/TOSLINK bus inputs
  • Input Sensitivity: 1 Vrms for full output, level at maximum
  • Input Gain: 30 dB
  • Amplifier Channels: 16
  • Power Output (8 Ω): 100 W per channel
  • Power Output (4 Ω): 200 W per channel
  • Power Output (8 Ω bridged mono): 400 W
  • Minimum Speaker Load: 4 Ω
  • Preamp Audio Outputs: 8 stereo loop outputs, 2 coaxial digital S/PDIF outputs
  • Crosstalk: > 80 dB @ 1 kHz
  • Damping Factor: >300
  • Signal to Noise: > 95 dB, A-wtd, ref full output
  • Crosstalk: >80 dB @ 1 kHz
  • DAC Specifications: 32 to 96 kHz sample rate, 16-/24-bit depth
  • Remote Power Trigger: +12 VDC or Dry Contact Closure
  • Network Connection/Protocol: 10Base-T ethernet TCP/IP
  • Communication Protocol: HTTP or telnet

Dimensions

  • Size (W x D x H): 17” x 15.5” x 3.5”
  • Weight: 21 lbs.
