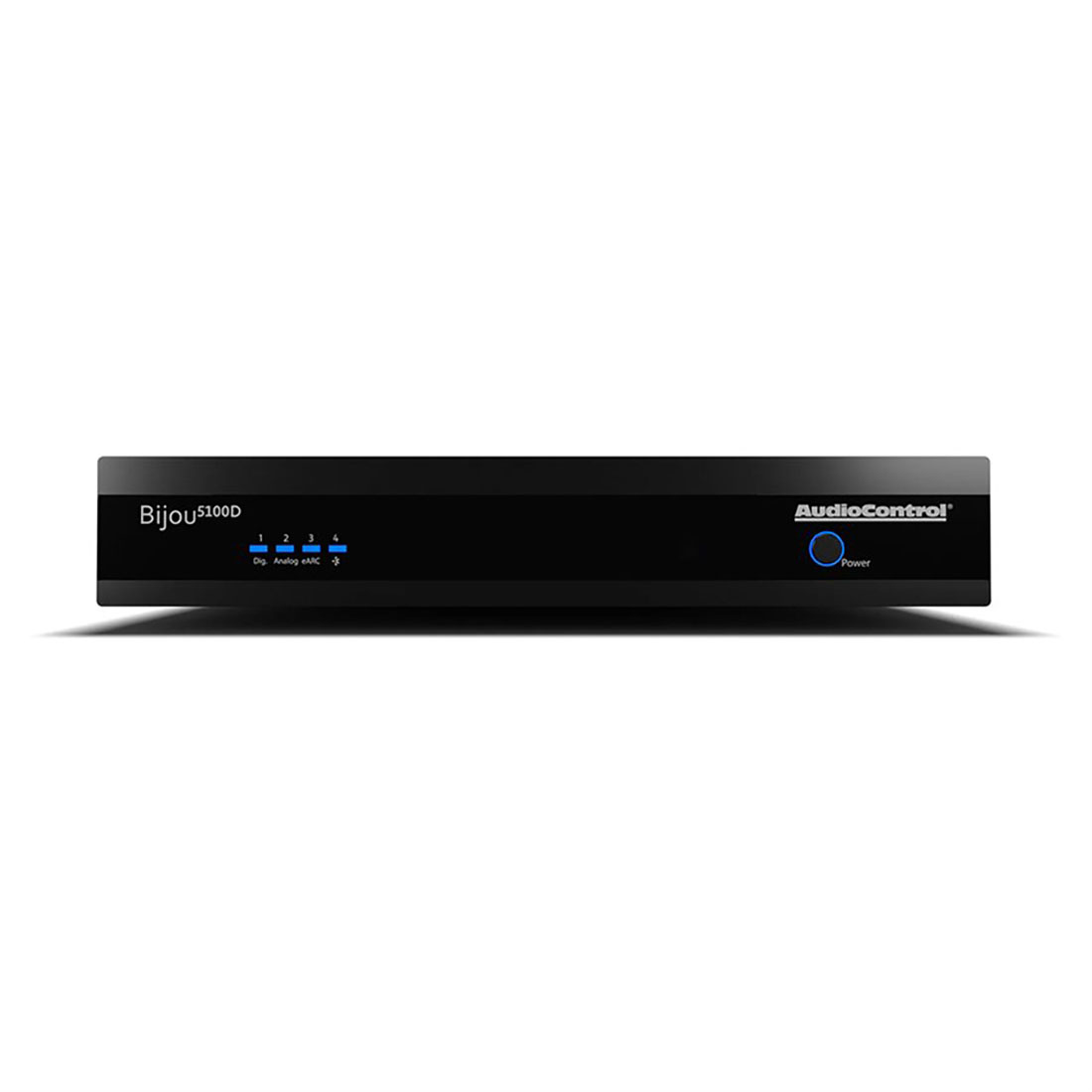

AudioControl Compact 5.1 Channel High Power Integrated Ampl

AudioControl Compact 5.1 Channel High Power Integrated Ampl
MSRP: $2399.00
Manufacturer: AudioControl
SKU: ACP-BIJOU-5100D

Features

  • Next-generation GaN Semiconductor Amplification Technology
  • HDMI eARC Input
  • Dante Audio Networking
  • Web Configurable and IP-, IR-Controllable

Specs

  • eARC Inputs: 1 Audio-Only HDMI Input
  • Digital Inputs: 1 Optical TOSLINK, 1 Coax S/PDIF
  • Analog Inputs: Stereo L/R RCA single-ended
  • Analog Input Impedance: 47 kOhms
  • Analog Input Sensitivity: 2 Vrms
  • Dante Inputs: 1 RJ45 Two-channel
  • Preamp Outputs: 2 RCA single-ended
  • Sub Output: 1 RCA single-ended
  • Speaker Level Outputs: 5 outputs, 1 x 6-pin, 1 x 4-pin Euroblock connectors
  • Power Output: 65 W at 8 ohms, 130 W at 4 ohms
  • Dante Outputs: 1 x Two-channel
  • Minimum Speaker Load: 4 ohms
  • Frequency Range: 20 Hz to 20 kHz
  • Total Harmonic Distortion: 0.15%
  • DAC: 48 kHZ/24bit
  • Input Voltage: 110 - 240 VAC
  • Power Consumption
    • Standby: 3 W
    • Typical loud listening (¹⁄8th power): 150 W
    • Maximum: 1000 W
  • BTU/hr
    • Standby: 10 BTU/hr
    • Typical loud listening (¹⁄8th power): 425 BTU/hr
    • Maximum: 2800 BTU/hr
  • 0.75 RU

Dimensions

  • 1.7" x 10.3" x 11.5"
  • 7.4 lbs

Features

  • Next-generation GaN Semiconductor Amplification Technology
  • HDMI eARC Input
  • Dante Audio Networking
  • Web Configurable and IP-, IR-Controllable
