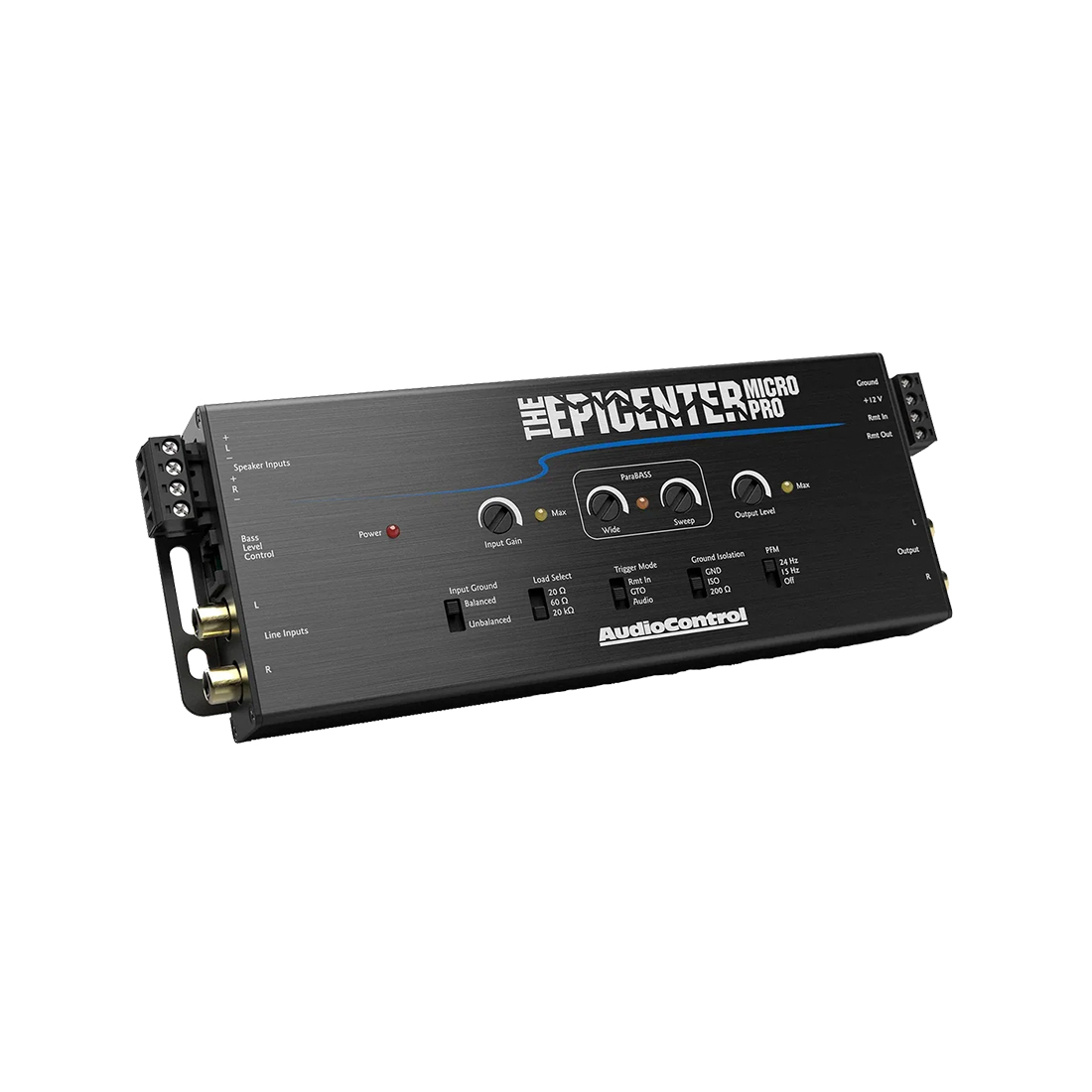

AudioControl Bass Restoration Processor and LOC Black 12 V with Line Driver "Pro"

Building on the powerful features of The EPICENTER Micro and everything you have come to know and love about AudioControl’s legendary bass processing, The EPICENTER Micro PRO adds more control and tuning potential for those who wish to push even further into the unexplored outer realms of extreme bass performance.
MSRP: $229.00
Manufacturer: AudioControl
SKU: EPICENTER-MICRO-PRO

Features

  • AudioControl’s Patented Digital Bass Restoration
  • ParaBASS® Bass Shaping
  • Selectable PFM Subsonic Filter with Bypass
  • Built-in Line Driver for Optimal Output Voltage
  • Speaker and Line Level Inputs
  • Load Selection Switch
  • GTO and Audio Sense Turn On
  • 10 Volt Maximum Output Level
  • ACR-4 Dual Knob Dash Mount Control Included
  • Conformally Coated PCB for Increased Resistance to the Elements

What's in the Box

  • The Epicenter Micro PRO
  • ACR-4
  • Remote Cable
  • Speaker and Power connectors
  • User Manual

Specs

  • Maximum Line Level Input: 10Vrms
  • Maximum Speaker Level Input: 40V / 400W (20kΩ setting)
  • Line Level Input Impedance: 7kΩ
  • Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
  • Maximum Output Level (THD<1%): 9Vrms, 13V peak
  • Output Impedance: 150Ω
  • Total Harmonic Distortion: 0.03%
  • Signal to Noise: >105 dB
  • Frequency Response: 10 Hz – 22 kHz ±1 dB
  • PFM Filter (High Pass): Selectable 24 Hz, 15 Hz, or Bypass
  • Remote In / GTO™ Signal Sense / Audio Sense
  • 12VDC Remote Out (always active when unit is on)
  • Power Supply: High Headroom PWM Switching
  • Current Draw: 300 mA
  • Recommended Fuse Rating: 1 A

Dimensions

  • 8″ x 3″ x 1″
  • 0.9 lbs

Features

  • AudioControl’s Patented Digital Bass Restoration
  • ParaBASS® Bass Shaping
  • Selectable PFM Subsonic Filter with Bypass
  • Built-in Line Driver for Optimal Output Voltage
  • Speaker and Line Level Inputs
  • Load Selection Switch
  • GTO and Audio Sense Turn On
  • 10 Volt Maximum Output Level
  • ACR-4 Dual Knob Dash Mount Control Included
  • Conformally Coated PCB for Increased Resistance to the Elements

What's in the Box

  • The Epicenter Micro PRO
  • ACR-4
  • Remote Cable
  • Speaker and Power connectors
  • User Manual
