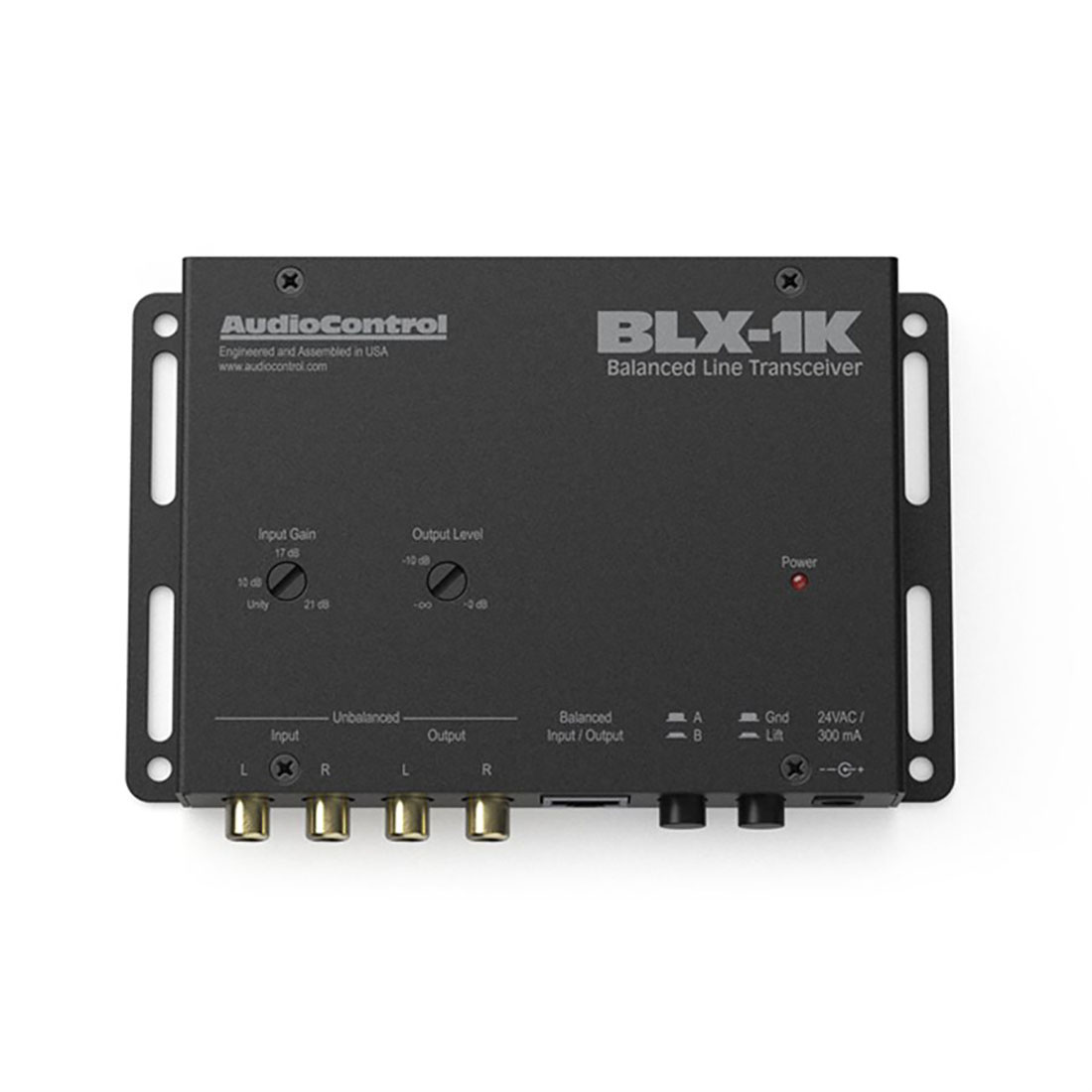

AudioControl Analog Audio 1000' Signal Extender/Line Driver

AudioControl Analog Audio 1000' Signal Extender/Line Driver
MSRP: $226.00
Manufacturer: AudioControl
SKU: BLX-1K

Specs

  • Inputs
    • Unbalanced Inputs (RCA): 2
    • Unbalanced Input Impedance: 100 kΩ
    • Maximum Unbalanced Input Signal Level: 3.8 Vrms
    • Balanced Inputs (Cat5/6): 1 (2 channel)
    • Balanced Input Impedance: 200 kΩ
  • Outputs
    • Unbalanced Outputs (RCA): 2
    • Unbalanced Output Impedance: 150 Ω
    • Maximum Unbalanced Output Signal Level: 7.5 Vrms max
    • Balanced Outputs (Cat5/6): 1 (2 channel)
    • Balanced Output Impedance: 150 Ω
    • Maximum Balanced Output Signal Level: 15 Vrms max
  • Frequency Response: 20 Hz – 20 kHz, ± 1 dB
  • Signal to Noise: >100 dB (ref. full output =  7.5 Vrms)
  • Total Harmonic Distortion: 0.1%
  • Headroom: 8.5 dB
  • Channel Separation: 90 dB (1 kHz)
  • CMRR: >69.5 dB (1kHz)
  • Power Supply: 24 VAC
  • Current Draw: 50 mA

Dimensions

  • Size: 6.2” x 4.3” x 1”
  • Weight: 1 lb.
