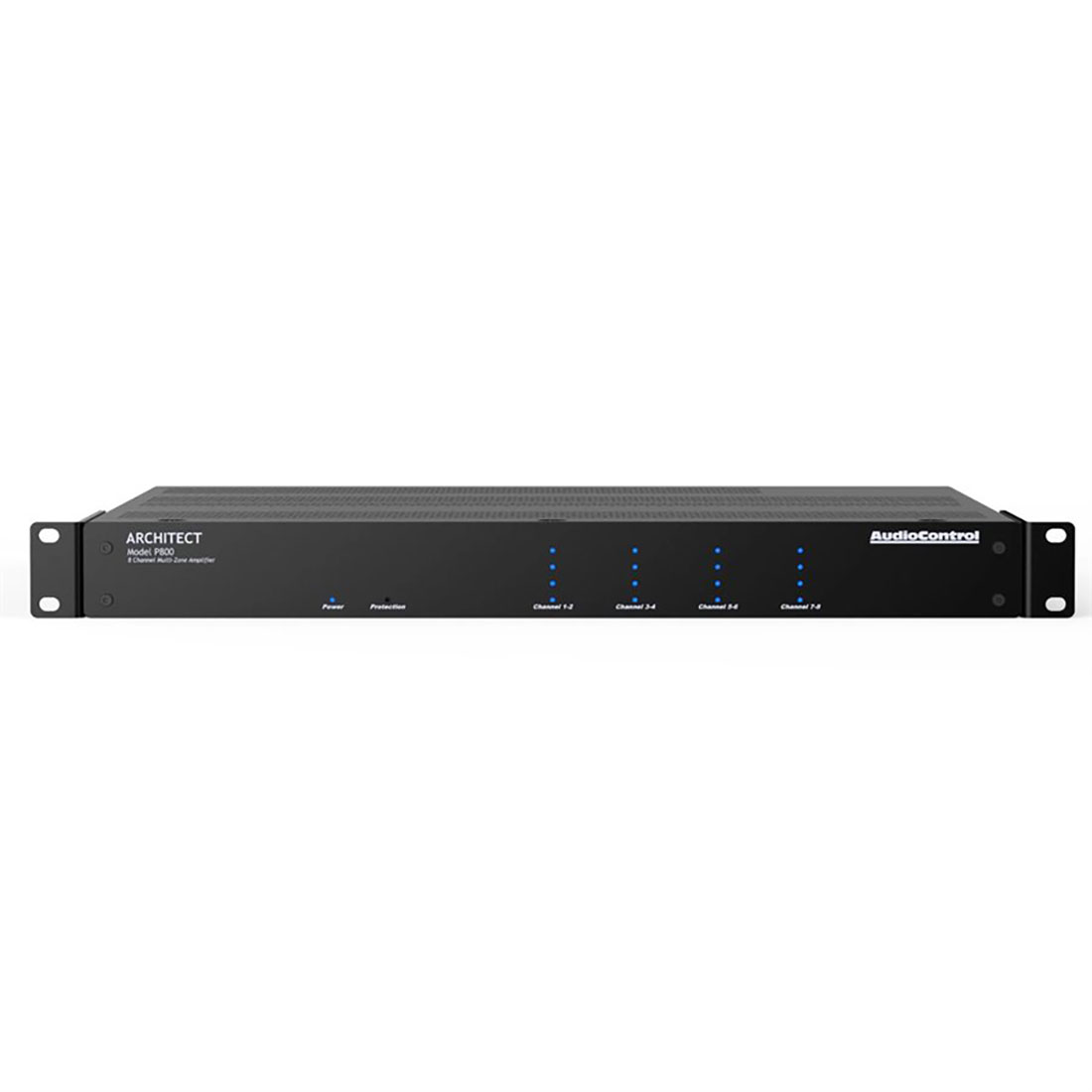

AudioControl 8CH Multi Zone Power Amplifier

AudioControl 8CH Multi Zone Power Amplifier
MSRP: $2626.00
Manufacturer: AudioControl
SKU: ARCHITECT-P800
Features
  • 8 channels of high power and AudioControl performance
  • 100 watts per Channel at 8 Ohms (all channels driven)
  • 200 watts per channel at 4 Ohms (all channels driven)
  • Bridgeable as an 4 channel amplifier at 400 watts
  • Low standby current draw of less than 1 watt
  • Compact design fits into 1 rack space
  • LightDrive™ anti-clipping protection circuitry
  • 2 x input buses (digital and analog)
  • Local zone input trigger
  • 12v trigger input and output
  • Signal-sensing on all channels
  • Input busing and level controls
  • Mono-switch for improved bridging
  • Beefy rack mount brackets included

Specs

Inputs4 stereo local analog inputs, 1 stereo bus coaxial digital input, 1 stereo bus analog input
Input SensitivityVariable 0 to Vrms
Analog Input Sensitivity1 Vrms for full output; level at maximum
Amplifier Channels8
1 Stereo Bus Analog Output
Power Output (8Ω)100W per channel
Power Output (4Ω)200 W per channel
Power Output (Bridged Mono)400W
Minimum Speaker Load4Ω
Damping Factor>200
Signal to Noise>105 dB, (A-wtd, ref full output)
Crosstalk>80 dB @ 1kHz
Gain30 dB
Analog Input Sensitivity1 Vrms for full output, level at maximum
DAC Specifications32 to 96 kHz sample rate, 16-/24-bit depth
Standby0.8W
Idle (main power on, all channels off)35W
All channels active60W
Full Power (20A residential service limited)1036 W



Dimensions

Size (W x D x H)17” x 15.8” x 1.75”
Weight15.0 lbs.



Features
  • 8 channels of high power and AudioControl performance
  • 100 watts per Channel at 8 Ohms (all channels driven)
  • 200 watts per channel at 4 Ohms (all channels driven)
  • Bridgeable as an 4 channel amplifier at 400 watts
  • Low standby current draw of less than 1 watt
  • Compact design fits into 1 rack space
  • LightDrive™ anti-clipping protection circuitry
  • 2 x input buses (digital and analog)
  • Local zone input trigger
  • 12v trigger input and output
  • Signal-sensing on all channels
  • Input busing and level controls
  • Mono-switch for improved bridging
  • Beefy rack mount brackets included

}
