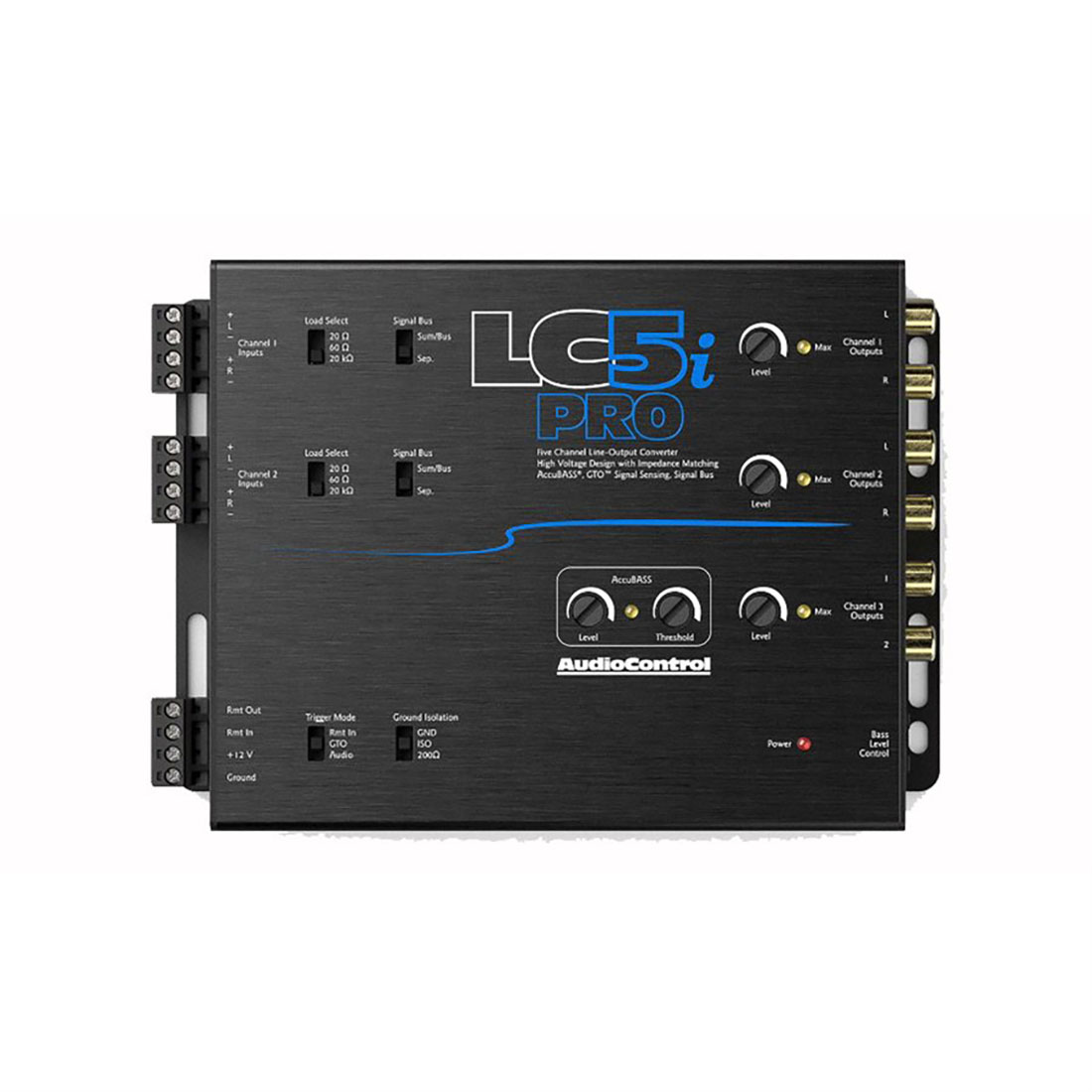

AudioControl 4ch in - 6ch out Line Out Converter


MSRP: $359.00
Manufacturer: AudioControl
SKU: LC5IPRO
Features
  • Four channels of active speaker-level inputs (up to 40V input handling)
  • Fixed and variable outputs with discrete-level controls
  • AccuBASS® processing for correction of bass roll-off
  • Load selection switch
  • GTO™ signal sensing
  • Ground isolation switch
  • ACR-1 dash remote included
  • Compact design
Specs
  • Speaker Level Input: 1 (4 channels)
  • Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
  • Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
  • Preamp Outputs: 5 (4 channels main, 1 channels bass)
  • Maximum Output Level: 9.5Vrms/13V peak
  • Output Gain: +/-15 dB
  • Output Impedance: 150Ω
  • Total Harmonic Distortion: 0.01%
  • Signal to Noise: >124 dB
  • Frequency Response: 20Hz-20kHz
  • Remote In / GTOTM Signal Sense / Audio Sense
  • 12VDC Remote Out (always active when unit is on)
  • Current Draw: 330 mA
  • Recommended Fuse Rating: 2 A
Dimensions
  • Size (L x D x H): 7” x 5.1” x 1.14”
  • Weight: 1.1 lbs.
What’s in the Box
  • LC5i PRO
  • ACR-1
  • 20’ Phone Cable
  • Speaker and Power connectors
  • Manual
  • Warranty

Specs

Speaker Level Input1 (4 channels)
Maximum Speaker Level Input40 Vrms / 400 W (20kΩ setting)
Input Impedance (selectable)20Ω, 60Ω, 20kΩ
Preamp Outputs5 (4 channels main, 1 channels bass)
Maximum Output Level9.5Vrms/13V peak
Output Gain+/-15 dB
Output Impedance150Ω
Total Harmonic Distortion0.01%
Signal to Noise>124 dB
Frequency Response20Hz-20kHz
Remote In / GTOTM Signal Sense / Audio Sense
12VDC Remote Out (always active when unit is on)
Current Draw330 mA
Recommended Fuse Rating2 A



Dimensions

Size (L x D x H)7” x 5.1” x 1.14”
Weight1.1 lbs.



Features
  • Four channels of active speaker-level inputs (up to 40V input handling)
  • Fixed and variable outputs with discrete-level controls
  • AccuBASS® processing for correction of bass roll-off
  • Load selection switch
  • GTO™ signal sensing
  • Ground isolation switch
  • ACR-1 dash remote included
  • Compact design
Specs
  • Speaker Level Input: 1 (4 channels)
  • Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
  • Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
  • Preamp Outputs: 5 (4 channels main, 1 channels bass)
  • Maximum Output Level: 9.5Vrms/13V peak
  • Output Gain: +/-15 dB
  • Output Impedance: 150Ω
  • Total Harmonic Distortion: 0.01%
  • Signal to Noise: >124 dB
  • Frequency Response: 20Hz-20kHz
  • Remote In / GTOTM Signal Sense / Audio Sense
  • 12VDC Remote Out (always active when unit is on)
  • Current Draw: 330 mA
  • Recommended Fuse Rating: 2 A
Dimensions
  • Size (L x D x H): 7” x 5.1” x 1.14”
  • Weight: 1.1 lbs.
What’s in the Box
  • LC5i PRO
  • ACR-1
  • 20’ Phone Cable
  • Speaker and Power connectors
  • Manual
  • Warranty
