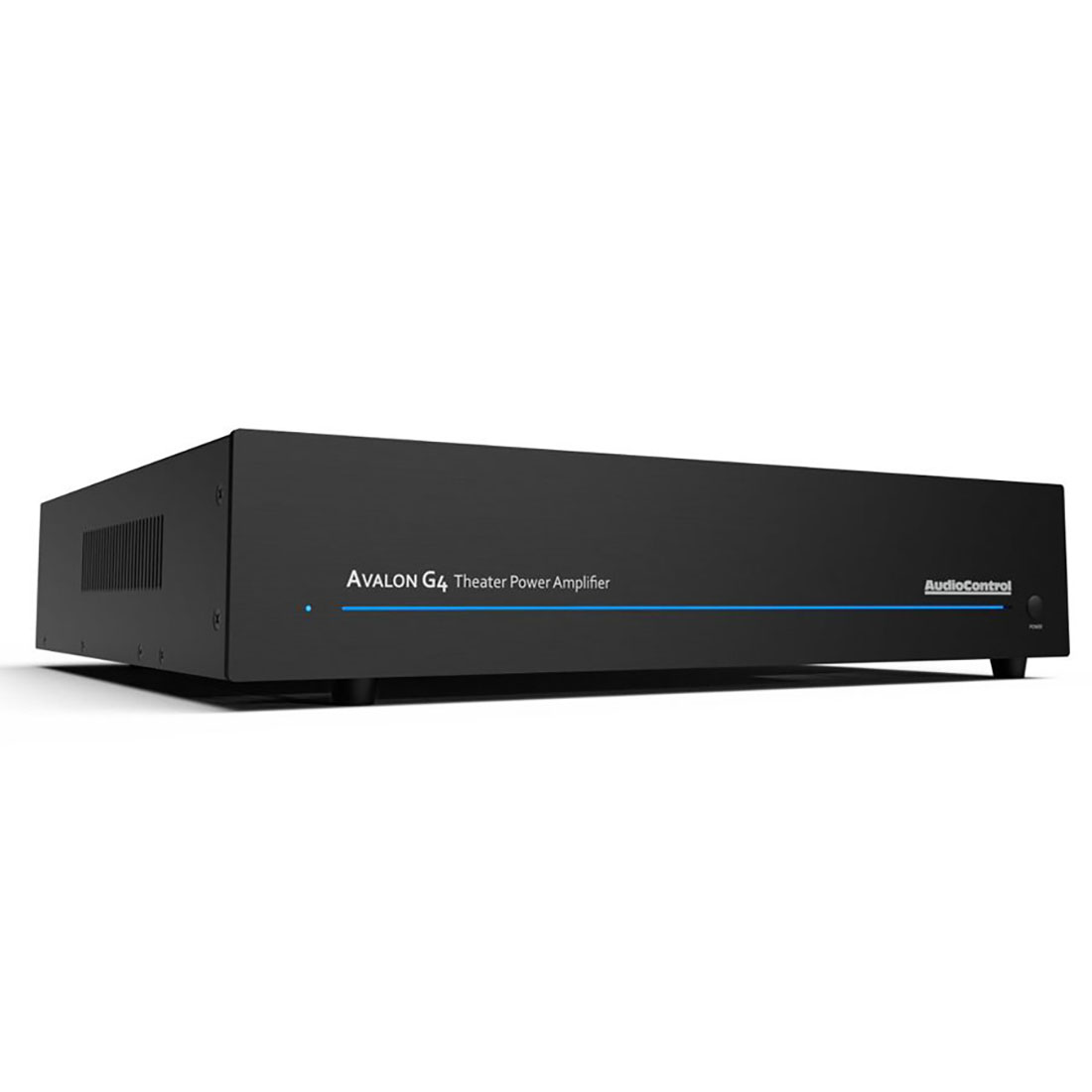

AudioControl 4-Channel Power Amplifer

• Award winning theater amplifier technologies
• Four channel home theater amplifier
• Multi-mode operation: 4 channel, 2.1 channel, and high-power 2 channel
• 230 watts per channel at 8 ohms; 300 watts per channel at 4 ohms
• 600 watts at 8 ohms bridged
• Stable into low impedances
• Stereo/mono operation
• Unparalleled Energy Efficiency
• High Definition BiMOS Outputs
• Cool Running Class H Operation
• LightDrive Anti-Clipping Protection Circuitry
• 5-way Binding Posts
• Unbalanced RCA inputs with pass through
• Balanced XLR Inputs
• Bullet-Proof Reliability
• Remote 12 volt Trigger
• Perfect paired with AudioControl’s Maestro M9 or M5 Preamplifiers

• Inputs: 4 RCA Unbalanced, 4 XLR Balanced
• Input Sensitivity: 1.42 Vrms for full output
• Maximum Input Voltage: 2.7 Vrms
• Input Impedance: 100 kΩ

• Amplifier Channels: 4
• Power Output (8Ω): 230 watts per channel
• Power Output (4Ω): 300 watts per channel
• Power Ouput (8Ω Bridged Mono): 600 watts
• Minimum Speaker Load: 4Ω

• Damping Factor: >450
• Total Harmonic Distortion: 0.04% (230 watts @ 8 ohms 20 Hz-20 kHz)
• Signal to Noise: >102dB, A-wtd ref Full Output
• Frequency Response: 10 Hz -20 kHz ±1dB

• Remote Power Trigger: +12 VDC or Dry Contact Closure

• Peak AC Power Draw (full output 8Ω): 1200 watts
• Typical AC Power Draw (all channels driven): 400 watts
• Protection: clipping, short circuit, thermal, DC offset

• Dimensions: 17”W x 16.5”D x 3.5”H (2U)
• Weight: 38.0lbs 17.2kg)

• Avalon G4
• Power Cord
• Manual
• Warranty

Special Order Only
