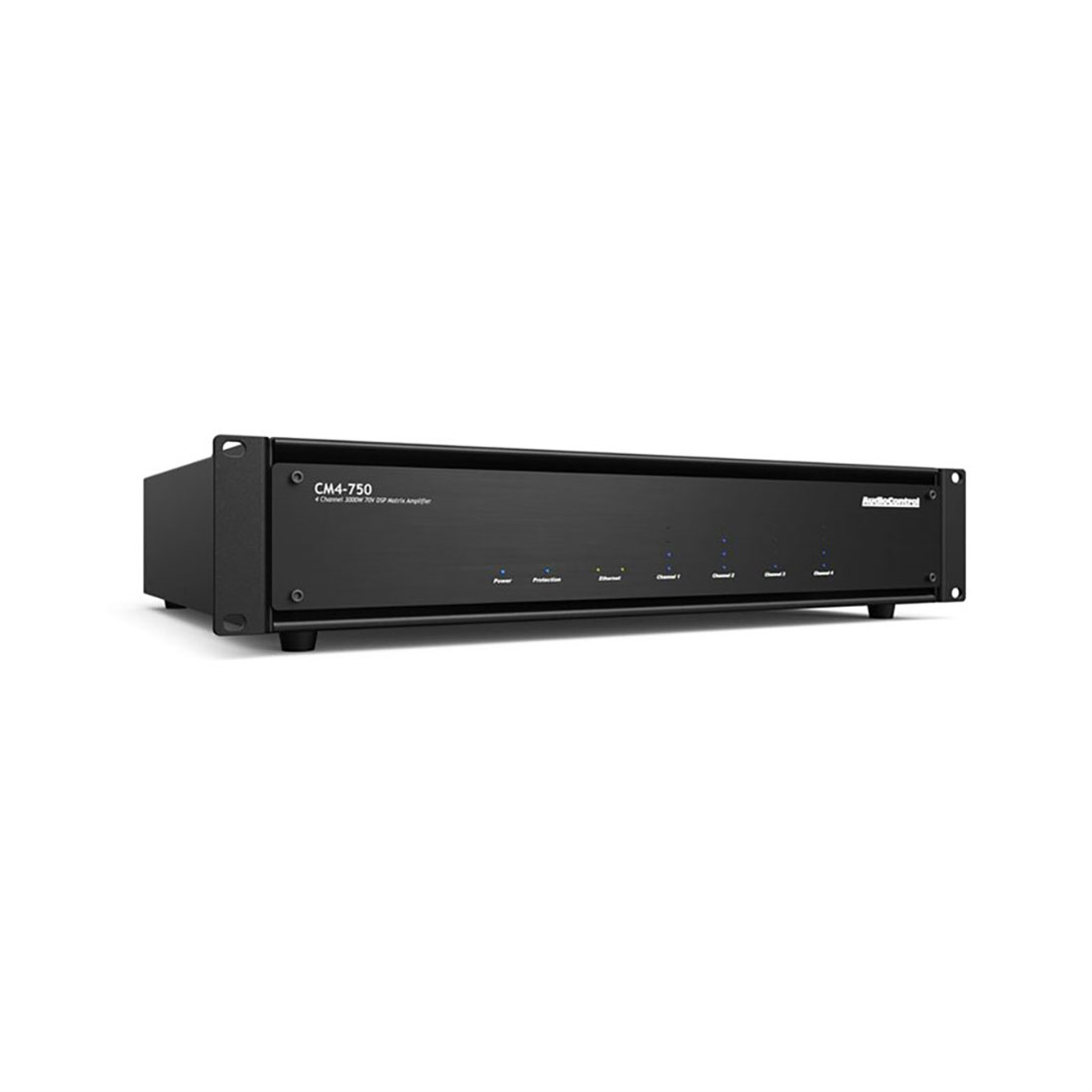

AudioControl 4 Channel High Power Dual Mode 70 Volt DSP Amp

• Network DHCP signal matrix amplifier with volume control
• Optional dante port
• 4 channels x 750 watts at 70/100 V or 2Ω/4Ω (all channels driven)
• 4 channels x 625 watts at 8Ω (all channels driven)
• 1500 watts of bridged power at 70/100 V or 4Ω/8Ω
• Digital Signal Processing (DSP) Performance
• Built-in speaker optimization profiles
• Ethernet port for status monitoring, source switching and 12 volt trigger control
• Built in matrix delivering analog or digital inputs to be routed to any zone or digital bus output
• Network programmable graphic and parametric equalization with user memories
• Assignable names for all zones and amplifier
• Digital signal sense
• Programmable electronic crossover for local subwoofer applications; subsonic  filter
• AudioControl LightDrive Anti-Clipping speaker protection
• Digital and analog inputs with digital and analog pass thru / loop outputs
• Dual digital audio bus outputs
• Commercial and home installations

• Inputs: 8 balanced inputs, 8 unbalanced RCA inputs, 2 digital combo coax/toslink inputs
• Input Sensitivity: 1 Vrms for full output, level at maximum
• Input Gain: 30 dB
• Amplifier Channels: 4
• Power Output (70 V / 100 V): 750W per channel
• Power Output (70 V / 100 V Bridged): 1500W
• Power Output (8Ω/4Ω): 625W per channel
• Power Output (8Ω Bridged): 1250W
• Minimum Speaker Load: 2Ω
• Preamp Audio Outputs: 4 balanced, 4 unbalanced RCA, 4 digital coax loop outputs
• Remote Power Trigger: +12 VDC or Dry Contact Closure
• Network Connection/Protocol: 10BaseT Ethernet TCP/IP
• Communication Protocol: HTTP or Telnet

• Size (W x D x H): 17” x 15.5” x 3.5”
• Weight: 18.5 lbs.

• Model CM4-750
• Speaker Connectors
• Remote Connector
• Power Cord
• Manual
• Warranty

Special Order Only
