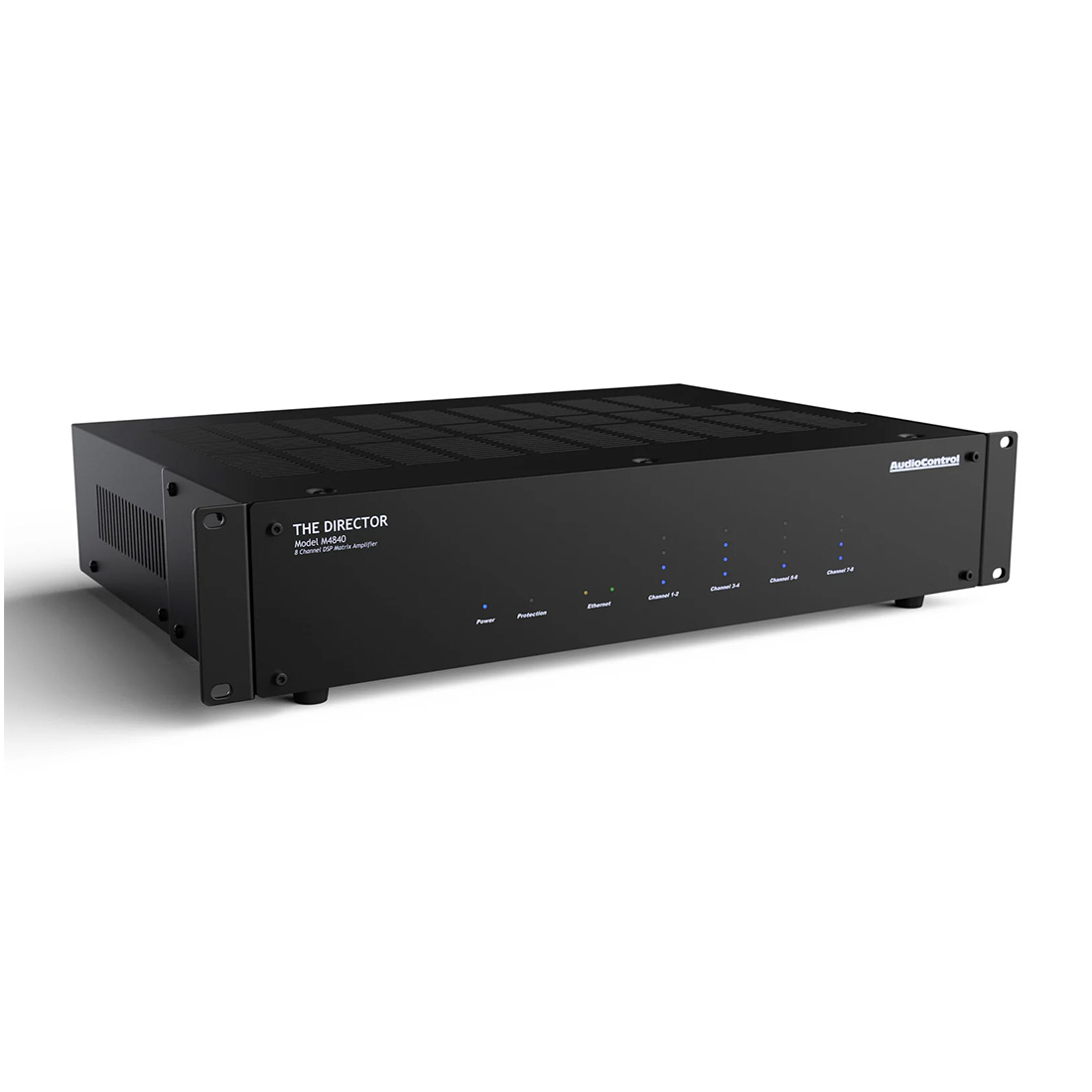

AudioControl 2U 8 Channel 100 Watt Network Amplifier/Matrix

AudioControl 2U 8 Channel 100 Watt Network Amplifier/Matrix
MSRP: $3388.00
Manufacturer: AudioControl
SKU: ACP-DMZ-M4840

Specs

  • Crosstalk: > 80 dB @ 1 kHz
  • Damping Factor: >300
  • Signal to Noise: >95 dB, A-wtd, ref full output
  • Crosstalk: >80 dB @ 1 kHz
  • DAC Specifications: 32 to 96 kHz sample rate, 16-/24-bit depth
  • Remote Power Trigger: +12 VDC or Dry Contact Closure
  • Network Connection/Protocol: 10Base-T Ethernet TCP/IP
  • Communication Protocol: HTTP or Telnet
  • Inputs: 4 Stereo Analog Local Inputs, 4 Coaxial/TOSLINK Inputs
  • Input Sensitivity: 1 Vrms for full output, level at maximum
  • Input Gain: 30 dB
  • Amplifier Channels: 8
  • Power Output (8 Ω): 100 W per channel
  • Power Output (4 Ω): 200 W per channel
  • Power Output (8 Ω Bridged Mono): 400 W
  • Minimum Speaker Load: 4 Ω
  • Preamp Audio Outputs: 4 Stereo Loop Outputs, 4 Coaxial2 Coaxial Digital S/PDIF BUS Outputs

Dimensions

  • 17” x 15.5” x 3.5”
  • 16.5 lbs
