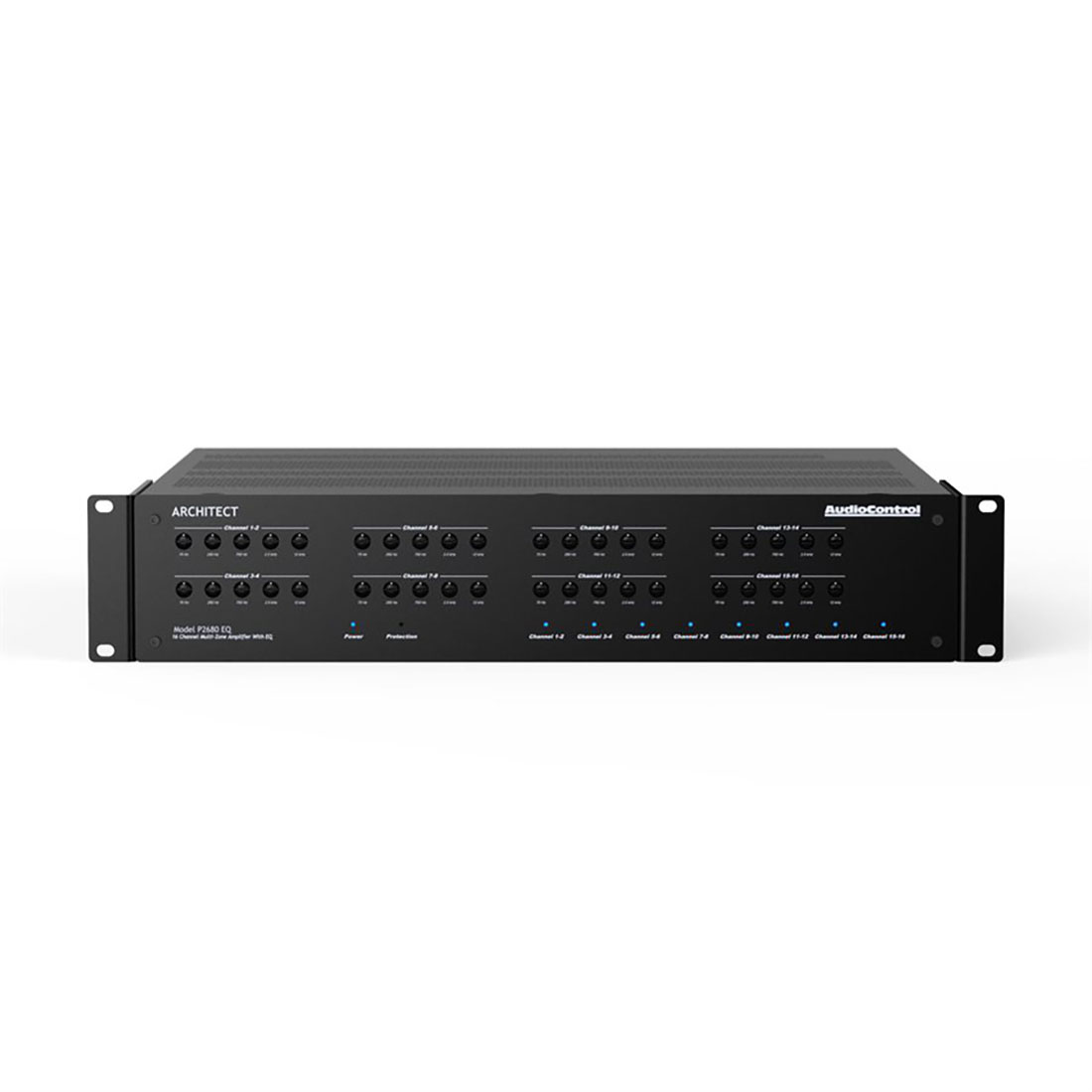

AudioControl 16 Channel Multi Zone Amplifier w/ EQ

AudioControl 16 Channel Multi Zone Amplifier w/ EQ
MSRP: $4573.00
Manufacturer: AudioControl
SKU: ARCHITECT-P2680EQ
Features
  • 16 Channels of High Power and AudioControl Performance
  • Five Band 16 Channel Speaker Equalization
  • 100 watts per Channel at 8 Ohms (All Channels Driven)
  • 200 watts per Channel at 4 Ohms (All Channels Driven)
  • Bridgeable as an 8 channel amplifier at 400 watts
  • Low Standby Current Draw of Less Than 1 Watt
  • Compact Design Fits into 2 Rack Spaces
  • LightDrive Anti-Clipping Protection Circuitry
  • 2 x Input Buses (Digital and Analog)
  • Local Zone Input Trigger
  • 12v Trigger Input and Output
  • Signal-Sensing On All Channels
  • Input Busing and Level Controls
  • Mono-switch for Improved Bridging

Specs

Inputs8 Stereo Local Analog Inputs, 1 Stereo Bus Digital Input, 1 Stereo Bus Analog Input
Input SensitivityVariable 0-1 Vrms
Analog Input Sensitivity1 Vrms for full output; level at maximum
Amplifier Channels16
1 Stereo Bus Analog Output
Power Output (8Ω)100W per channel
Power Output (4Ω)200W per channel
Power Output (Bridged Mono)400W
Minimum Speaker Load4Ω



Dimensions

Size With Rack Ears (W x D x H)19” x 15.5” x 3.5”
Size Without Rack Ears (W x D x H)17” x 15.5” x 3.5”
Weight21 lb.
