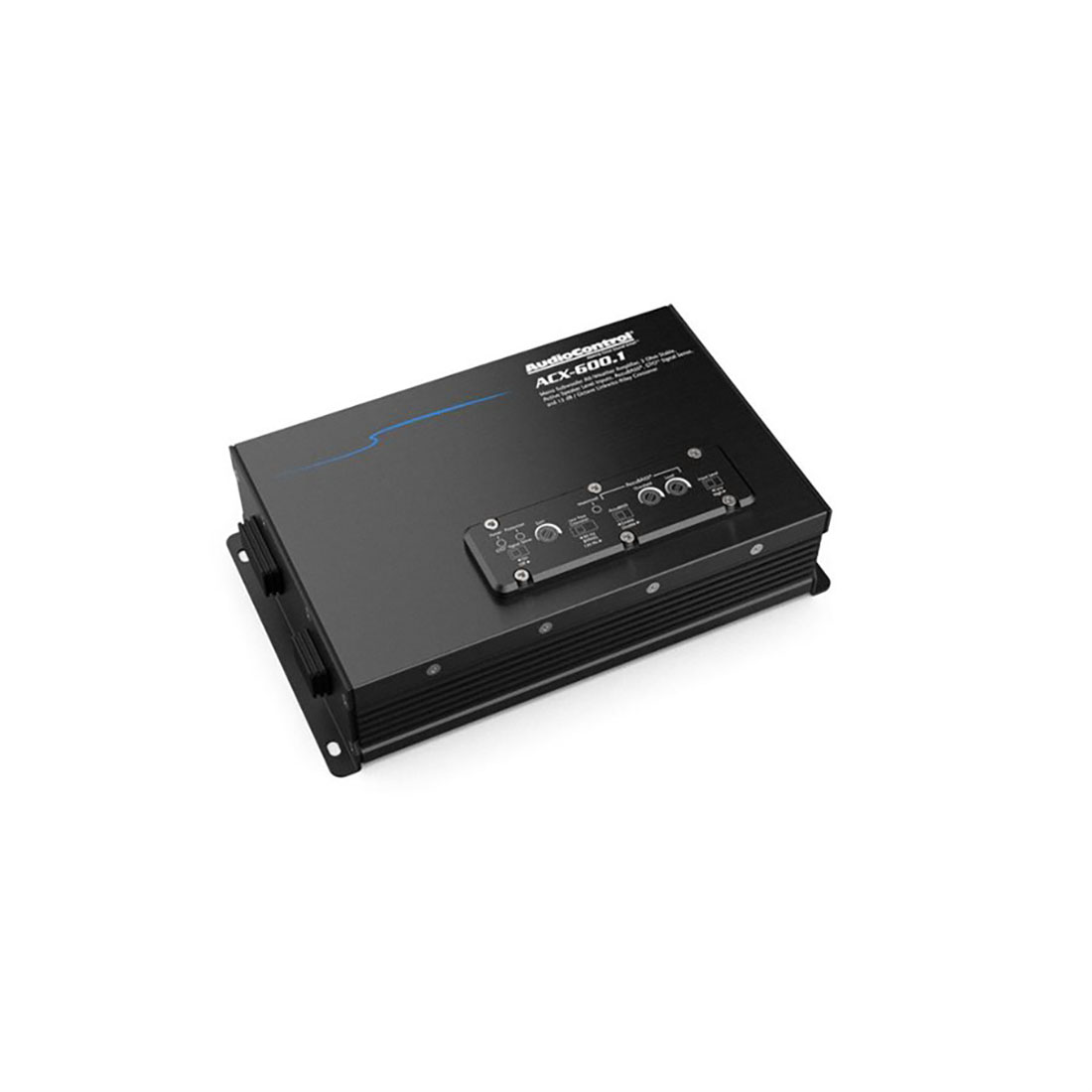

AudioControl 1 Channel All Weather Monoblock Amplifier

AudioControl 1 Channel All Weather Monoblock Amplifier
MSRP: $559.00
Manufacturer: AudioControl
SKU: ACX-600.1
Features
  • Adds power to the sound system in your boat, utv, motorcycle, and more
  • Easy installation with heavy gauge quick-connect wiring
  • 1 x 350 watts @ 4 Ohms
  • 1 x 600 watts @ 2 Ohms
  • GTO™ Signal Sense
  • Optional wired ACR-1 Remote Control for Output Level
  • High and Low Input Modes
  • Linkwitz-Riley Crossover
Specs
  • Preamp/Speaker Level Inputs: 2
  • Input Voltage Low: 500 mV-6 Vrms
  • Input Voltage Range High: 1 Vrms-12 Vrms
  • Rated Continuous RMS Power at 14.4V: 4 Ω -350 W x 1 / 2 Ω -600 W x 1
  • Frequency Response: 26-22k Hz
  • Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
  • THD+N: <0.05%
  • Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
  • IP Rating: IPX6
  • Recommended Fuse Rating: 30A
Dimensions
  • Size (W x D x H): 8.89” x 5.31” x 2.36”
  • Weight: 4.45 lbs.
What’s in the Box
  • ACX-600.1
  • Manual

Special Order Only
