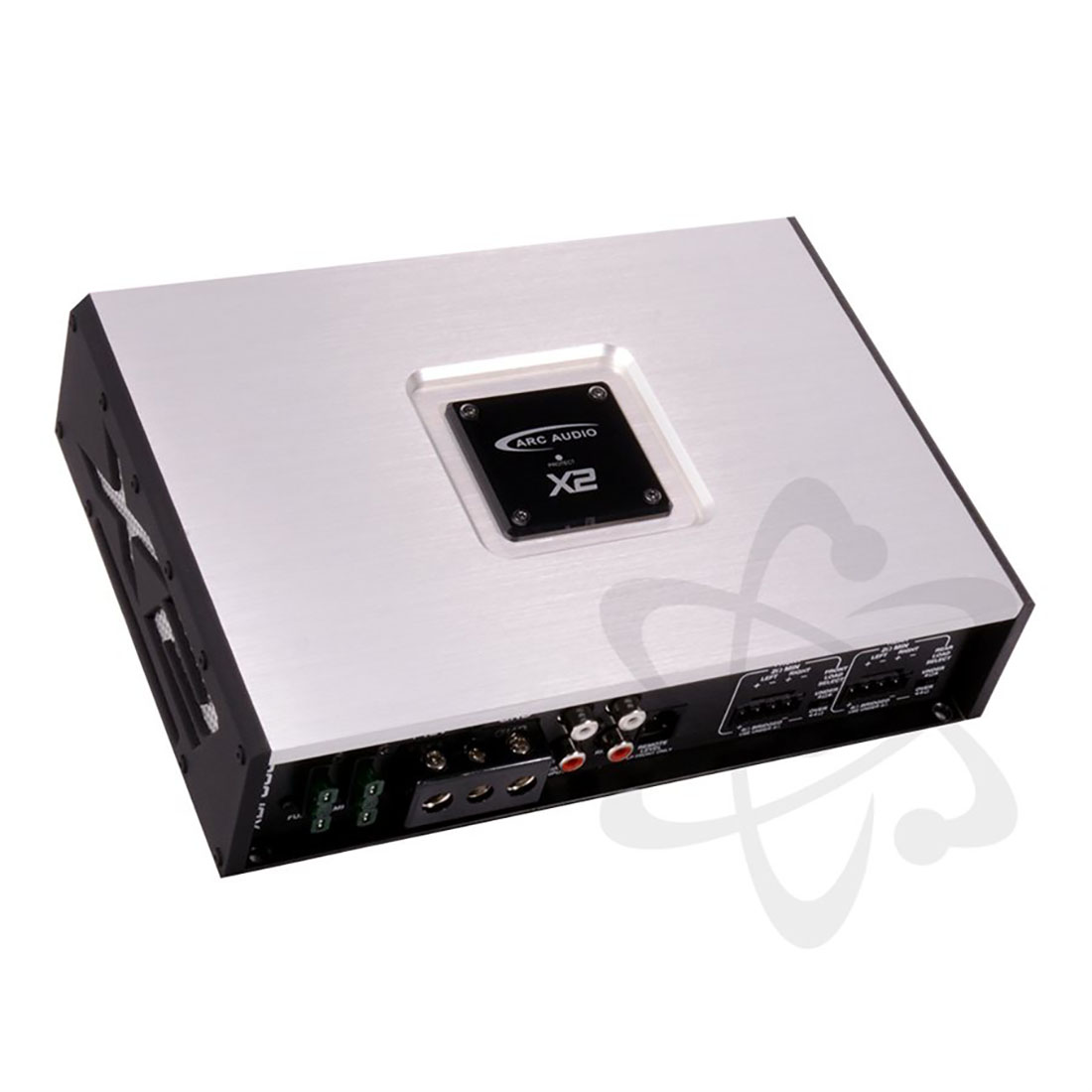

ARC Audio X2 Series Class D 4-Channel Amplifier

The ARC Audio X2 600.4 is a high-performance 4-channel amplifier designed for systems that demand clean power, real-world flexibility, and professional-grade results.
MSRP: $729.00
Manufacturer: ARC Audio
SKU: X2600.4

Features

  • Multi-Channel Amplifier (Four-Channels)
  • Microprocessor-Controlled Class-D Design
  • Designed And Engineered By Robert Zeff
  • High-Frequency Power Supply Design For Improved Signal Transparency And Overall Sound Quality
  • Remote Bass Boost Control (Included)
  • Extruded Aluminum CNC Chassis Design (Level 2 X2 Cosmetics)
  • Start-Stop Vehicle Compatible
  • Signal Sense and DC Detect
  • Single Side Connection Design
  • Nickel Plated RCA Terminals
  • Quick Disconnect Speaker Terminal Plugs
  • Audiophile Class-D Output Filter Networks
  • Detailed Microprocessor Controlled Protection
  • Large, High-Frequency Switching Power Supplies
  • RCA Inputs Are Compatible With Speaker-Level Inputs
  • Fault Codes Storage Of The Last Protection Code Detected
  • Hi Signal To Noise Ratio Without Compromising Power Output
  • Fully Balanced Input Stage Significantly Increases Flexibility
  • Ultra Low ESR, High-Capacity Power Supply Storage Capacitors
  • Flexible Mounting Orientation For Vertical Or Horizontal Installations
  • Next Generation High Speed Class-D Technology Powering All X2 Amplifiers
  • Bridged Mode Auto Detect Turn-On Works With Most Chip Based OEM Headunits
  • Precision Filtering Isolates The Power Supply Reducing Unwanted Interference In Radio Reception
  • Quick Disconnect Type Terminal Connections


Specs

4- Channels @ 4 Ohms 150 Watts
4-Channels @ 2 Ohms 150 Watts
2-Channel @ 4 Ohms (Bridged) 300 Watts
2-Channel @ 2-Ohms (Bridge) Not Recommended
Frequency Response 20Hz - 20kHz
Crossover Range 50Hz - 550Hz
Crossover Types HP/LP on all channels
Bandpass Crossovers Yes Ch 3/4 Only
Remote Level Control Yes
Remote Level Control Included Yes - LP Front Channel only
Input Sensitivity (Low) 200mV - 3.5V
Fuse 2 x 30 Amp



rgb(229, 25, 55);">Special Order Only
