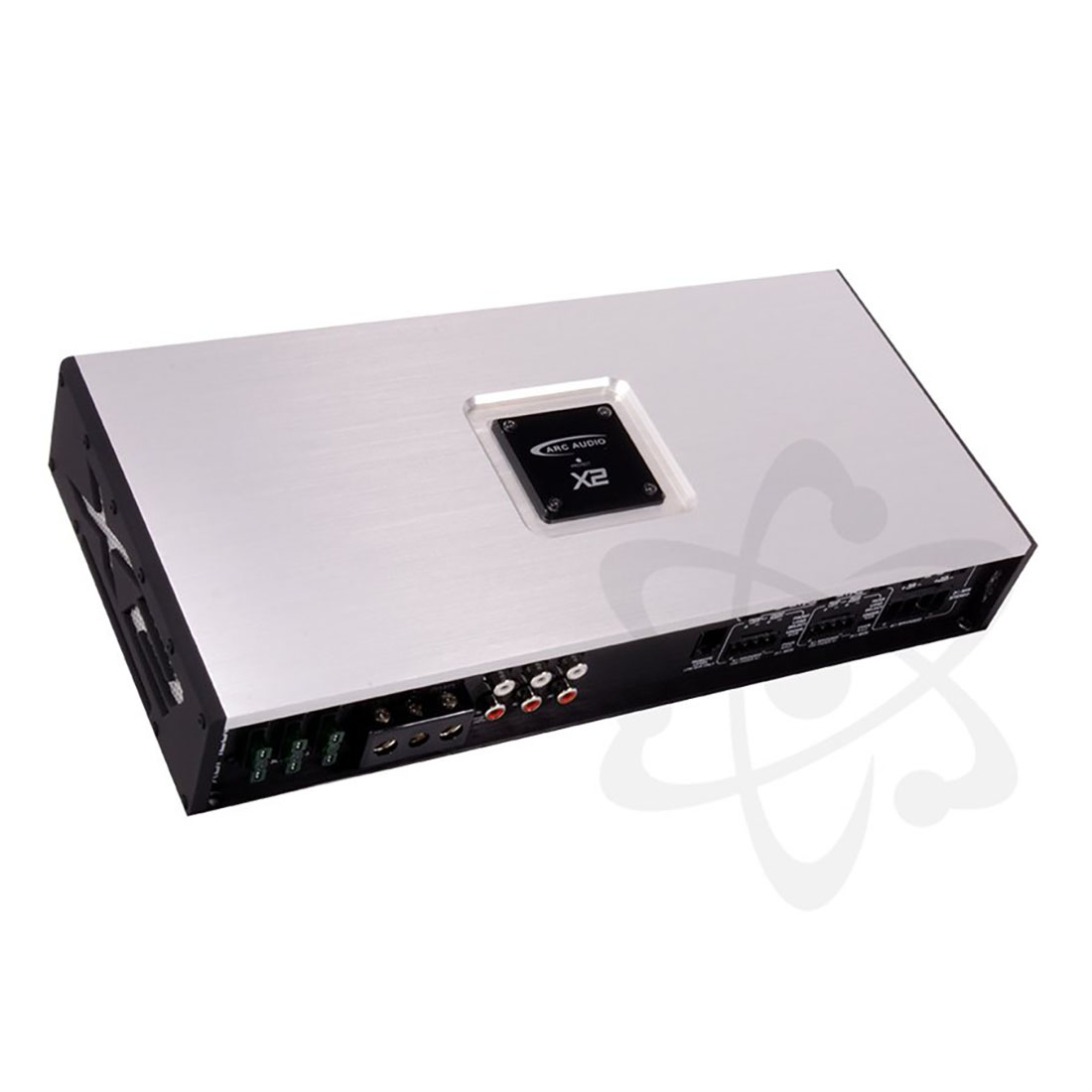

ARC Audio X2 Series 6-Channel Amplifier

Name: ARC Audio X2 Series 6-Channel Amplifier
SKU: X21200.6
Availability: InStock

MSRP: $1199.00

Manufacturer: ARC Audio

SKU: X21200.6

Overview

Multi-Channel Amplifier (Six Channels)
Microprocessor Class-D Design
Designed And Engineered By Robert Zeff
High-Frequency Power Supply Design For Improved Signal Transparency And Overall Sound Quality
Remote Bass Boost Control (Included)
Extruded Aluminum CNC Chassis Design (Level 2 X2 Cosmetics)
Frequency Limited Subwoofer Amplifier Design
Single Side Connection Design
Nickel Plated RCA Terminals
Quick Disconnect Speaker Terminal Plugs
Audiophile Class-D Output Filter Networks
Detailed Microprocessor Controlled Protection
Large, High-Frequency Switching Power Supplies
RCA Inputs Are Compatible With Speaker-Level Inputs
Fault Codes Storage Of The Last Protection Code Detected
High Signal To Noise Ratio Without Compromising Power Output
Fully Balanced Input Stage Significantly Increases Flexibility
Ultra Low ESR, High-Capacity Power Supply Storage Capacitors
Flexible Mounting Orientation For Vertical Or Horizontal Installations
Next Generation High-speed Class-D Technology Powering All X2 Amplifiers
Bridged Mode Auto Detect Turn-On Works With Most Chip Based OEM Headunits
Precision Filtering Isolates The Power Supply Reducing Unwanted Interference In Radio Reception
Quick Disconnect Type Terminal Connections

4-Channels @ 4 Ohms (Ch 1-4)	150 Watts
4-Channels @ 2 Ohms (Ch 1-4)	150 Watts
2-Channel @ 4 Ohms (Ch 1-4 Bridged)	300 Watts
2-Channel @ 4 Ohms (Ch 5&6)	150 Watts
2-Channel @ 2-Ohms (Ch 5&6)	300 Watts
1-Channel @ 4-Ohms (Ch 5&6 Bridged)	600 Watts
Frequency Response	10Hz - 20kHz
Crossover Range (Ch 1-2)	50Hz - 550Hz (x10 500Hz - 5500Hz LP Only)
Crossover Range (Ch 3-4)	50Hz - 550Hz (x10 500Hz - 5500Hz LP Only)
Crossover Range (Ch 5-6)	50Hz - 550Hz (x10 500Hz - 5500Hz LP Only)
Bandpass Capable	Yes (Ch1-2, 5-6)
Bass Boost	Variable 0-12 dB @ 45Hz (Ch 5&6 only)
Cosmetic Trim	X2 Trim Level 2
Remote Level Control Included	Yes
Input Sensitivity (Low)	200mV - 3.5V
Fuse	3 x 30 Amp

Size (L x W x H)

13.0" x 6.268" x 2.162"

black;">

Overview

Multi-Channel Amplifier (Six Channels)
Microprocessor Class-D Design
Designed And Engineered By Robert Zeff
High-Frequency Power Supply Design For Improved Signal Transparency And Overall Sound Quality
Remote Bass Boost Control (Included)
Extruded Aluminum CNC Chassis Design (Level 2 X2 Cosmetics)
Frequency Limited Subwoofer Amplifier Design
Single Side Connection Design
Nickel Plated RCA Terminals
Quick Disconnect Speaker Terminal Plugs
Audiophile Class-D Output Filter Networks
Detailed Microprocessor Controlled Protection
Large, High-Frequency Switching Power Supplies
RCA Inputs Are Compatible With Speaker-Level Inputs
Fault Codes Storage Of The Last Protection Code Detected
High Signal To Noise Ratio Without Compromising Power Output
Fully Balanced Input Stage Significantly Increases Flexibility
Ultra Low ESR, High-Capacity Power Supply Storage Capacitors
Flexible Mounting Orientation For Vertical Or Horizontal Installations
Next Generation High-speed Class-D Technology Powering All X2 Amplifiers
Bridged Mode Auto Detect Turn-On Works With Most Chip Based OEM Headunits
Precision Filtering Isolates The Power Supply Reducing Unwanted Interference In Radio Reception
Quick Disconnect Type Terminal Connections
