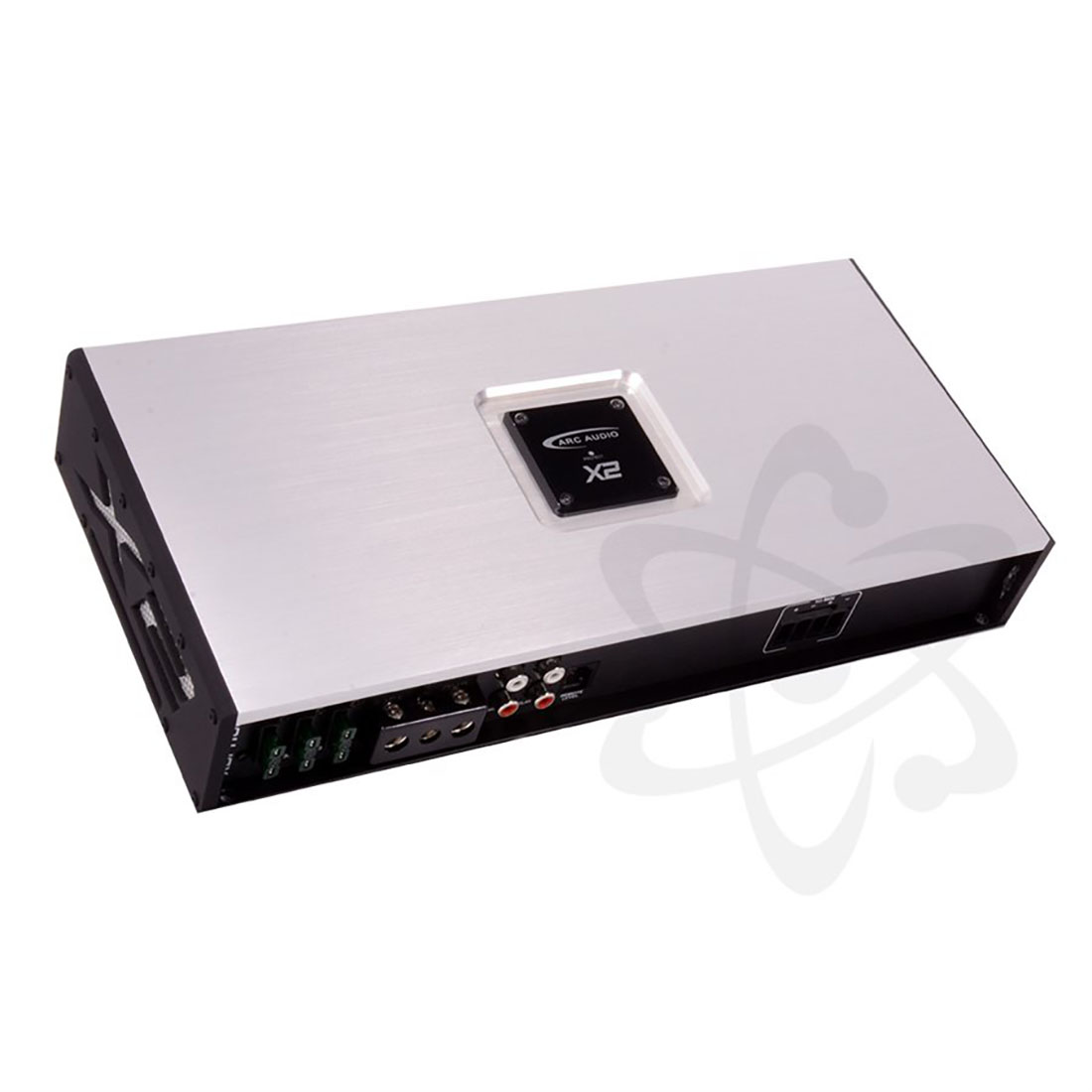

ARC Audio X2 Series 1-Ch 1 Ohm 1100W Class D Mono Amplifier

Name: ARC Audio X2 Series 1-Ch 1 Ohm 1100W Class D Mono Amplifier
SKU: X21100.1
Availability: InStock

MSRP: $829.00

Manufacturer: ARC Audio

SKU: X21100.1

Overview

Mono-block amplifier (single channel)
Microprocessor class-D design
Designed and engineered by Robert Zeff
High-frequency power supply design for improved signal transparency and overall sound quality
Remote bass boost control (included)
Extruded aluminum CNC chassis design (level 2x2 cosmetics)
Frequency limited subwoofer amplifier design
Start-stop vehicle compatible
Signal sense and DC detect
Single side connection design
Nickel plated RCA terminals
Quick disconnect speaker terminal plugs
Audiophile class-D output filter networks
Detailed microprocessor controlled protection
Large,high-frequency switching power supplies
RCA inputs are compatible with speaker-level inputs
Fault codes storage of the last protection code detected
High signal to noise ratio without compromising power output
Fully balanced input stage significantly increases flexibility
Ultra low ESR, high-capacity power supply storage capacitors
Flexible mounting orientation for vertical or horizontal installations
Next generation high-speed class-D technology powering all X2 amplifiers
Bridged mode auto detect turn-on works with most chip-based OEM headunits
Precision filtering isolates the power supply,reducing unwanted interference in radio reception
Quick disconnect type terminal connections

1-Channel @ 4 Ohms	350 Watts
1-Channel @ 2 Ohms	600 Watts
1-Channel @ 1 Ohms	1100 Watts
Frequency Response	10Hz - 230Hz
Crossover Range	30Hz - 230Hz / 24dB
Bass Boost	Variable 0-12 dB @ 30Hz - 125Hz
Remote Level Control Included	Yes
Input Sensitivity (Low)	200mV - 3.5V
Fuse	3 x 30 Amp

Overview

Mono-block amplifier (single channel)
Microprocessor class-D design
Designed and engineered by Robert Zeff
High-frequency power supply design for improved signal transparency and overall sound quality
Remote bass boost control (included)
Extruded aluminum CNC chassis design (level 2x2 cosmetics)
Frequency limited subwoofer amplifier design
Start-stop vehicle compatible
Signal sense and DC detect
Single side connection design
Nickel plated RCA terminals
Quick disconnect speaker terminal plugs
Audiophile class-D output filter networks
Detailed microprocessor controlled protection
Large,high-frequency switching power supplies
RCA inputs are compatible with speaker-level inputs
Fault codes storage of the last protection code detected
High signal to noise ratio without compromising power output
Fully balanced input stage significantly increases flexibility
Ultra low ESR, high-capacity power supply storage capacitors
Flexible mounting orientation for vertical or horizontal installations
Next generation high-speed class-D technology powering all X2 amplifiers
Bridged mode auto detect turn-on works with most chip-based OEM headunits
Precision filtering isolates the power supply,reducing unwanted interference in radio reception
Quick disconnect type terminal connections
