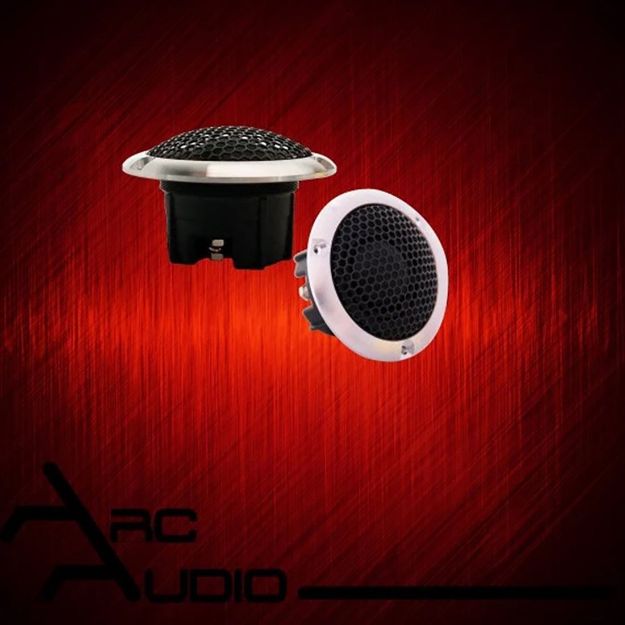

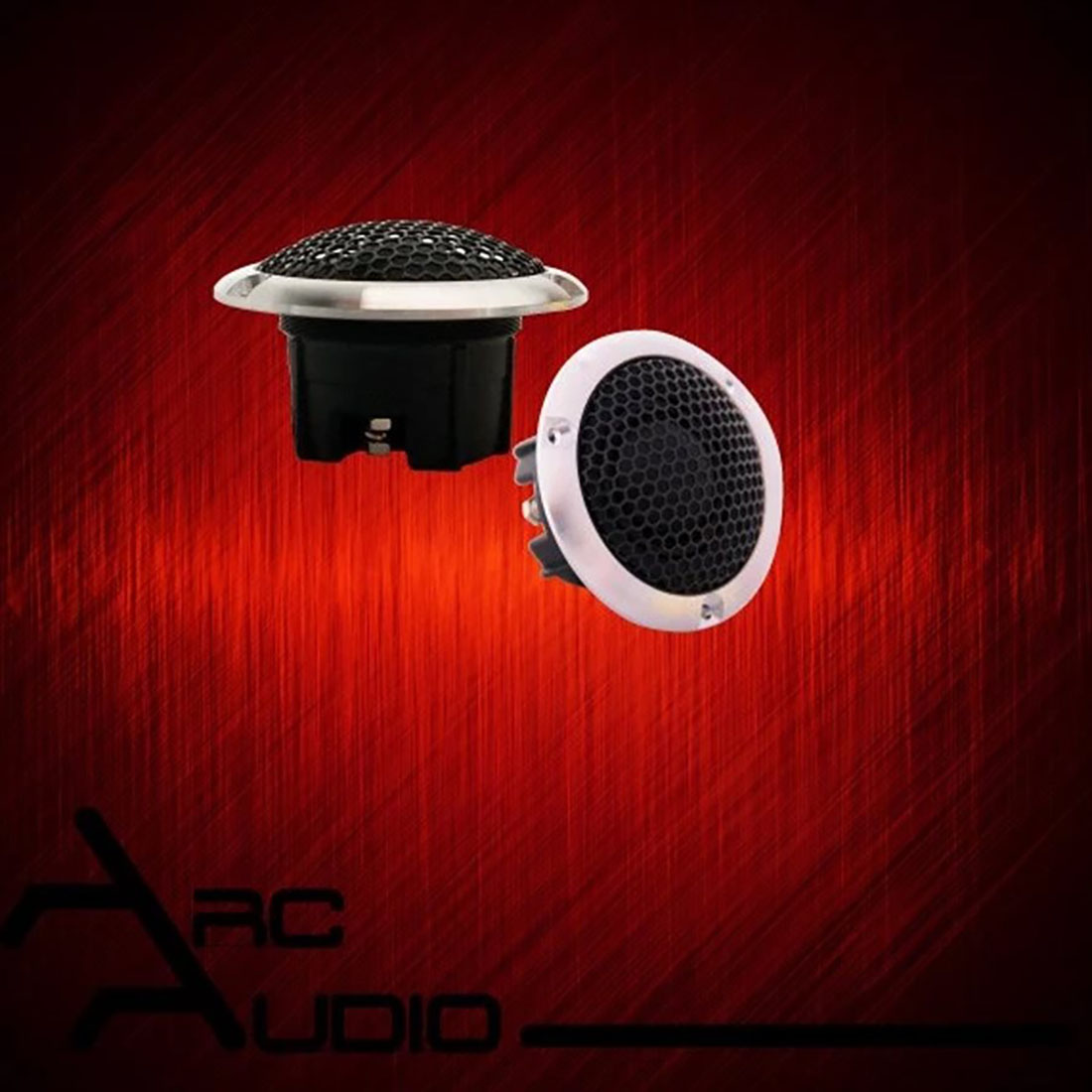

ARC Audio RS Series RS1.0 1" SQ Audiophile Tweeter

ARC Audio RS Series RS1.0 1" SQ Audiophile Tweeter
MSRP: $429.00
Manufacturer: ARC Audio
SKU: RS1.0
Features
  • The perfect complement to matching with the RS 4.0 or RS 6.0 for a stunning of revealing 2-way active component system
  • Low mass, fine-weave soft dome diaphragm to transfer sound energy from the voice coil to the listener
  • Dome-design ensures a smooth frequency response from the low resonant frequency of the driver
  • High-strength neodymium magnet and custom-designed motor structure powers the tweeter and provides excellent efficiency and dynamics with incredible control and tonal stability
  • Secondary bucking magnet further intensifies the magnetic field strength of the gap while reducing distortion during higher demand use periods
  • Solid cast aluminum tuned chamber chassis with integrated cooling provisions
What’s in the box
  • Arc Audio RS Series 1" SQ Audiophile Tweeters (Pair)

Special Order Only

Specs

Speaker Size25mm
Speaker TypeTweeter
Power Handling (Peak)120 Watts
Power Handling (RMS)60 Watts
Frequency Response2.2kHz - 22kHz
Sensitivity92.5dB
Impedance4 ohms
Housing MaterialCast Aluminum
Diaphragm MaterialFine Woven Silk
Surround MaterialLow Shore Rubber
Copper Shorting RingYes



Dimensions

Mounting Depth (with outer mounting ring)1.175"
Mounting Depth (w/o outer mounting ring 'ISO')1.163"
Maximum Outer Diameter (with outer ring)2.440"
Maximum Outer Diameter (w/o outer ring)1.907"
Cutout Diameter (w/o outer ring)1.613"
Removable Outer Mounting Ring Thickness.185" Rolled edge progressive
