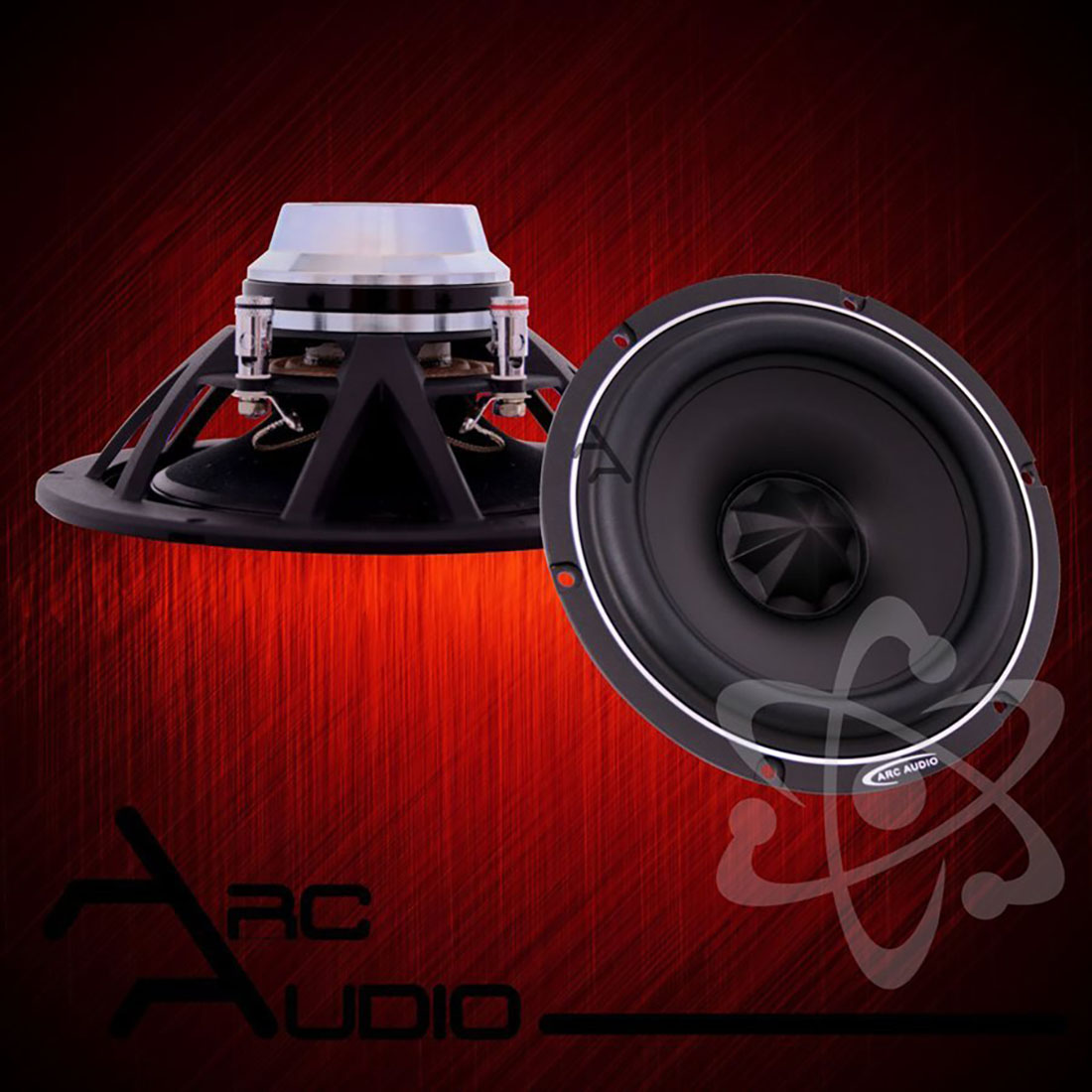

ARC Audio RS Series 6.5" SQ Audiophile Mid-Bass Drivers (pai

ARC Audio RS Series 6.5" SQ Audiophile Mid-Bass Drivers (pai
MSRP: $719.00
Manufacturer: ARC Audio
SKU: RS6.0
Features
  • Hard-pressed composite woven papyrus damped paper design resulting is a low-mass speaker cone with exceptional strength and excellent damping characteristics
  • Dust caps feature a semi-parabolic side profile that includes sharp vertical splines to add lateral rigidity
  • Magnetic flux is controlled by an extended copper sleeve for exceptional clarity and greatly increased overall bandwidth
  • Grills are not included
What’s in the box
  • ARC Audio RS Series 6.5" SQ Audiophile Mid-Bass Drivers, pair

Special Order Only

Specs

Speaker Size6.5"
Speaker TypeMidrange -Raw Driver
Power Handling (Peak)200 Watts
Power Handling (RMS)80 Watts
Frequency Response50Hz - 9.5kHz
Sensitivity91.5dB
Impedance4 ohms
Basket MaterialCast Aluminum
Cone MaterialComposite Papyrus filled Paper
Surround MaterialLow Shore Rubber
Spider MaterialSynthetic Progressive Nomex
Motor StructureMulti-Step CNC Precision cut
Copper Shorting RingYes
Voice CoilCCAW



Dimensions

Mounting Depth2.75"
Cutout Diameter5.812"
Maximum Outer Diameter6.654"
Mounting Flange Thickness.184"



Features
  • Hard-pressed composite woven papyrus damped paper design resulting is a low-mass speaker cone with exceptional strength and excellent damping characteristics
  • Dust caps feature a semi-parabolic side profile that includes sharp vertical splines to add lateral rigidity
  • Magnetic flux is controlled by an extended copper sleeve for exceptional clarity and greatly increased overall bandwidth
  • Grills are not included
What’s in the box
  • ARC Audio RS Series 6.5" SQ Audiophile Mid-Bass Drivers, pair

Special Order Only
