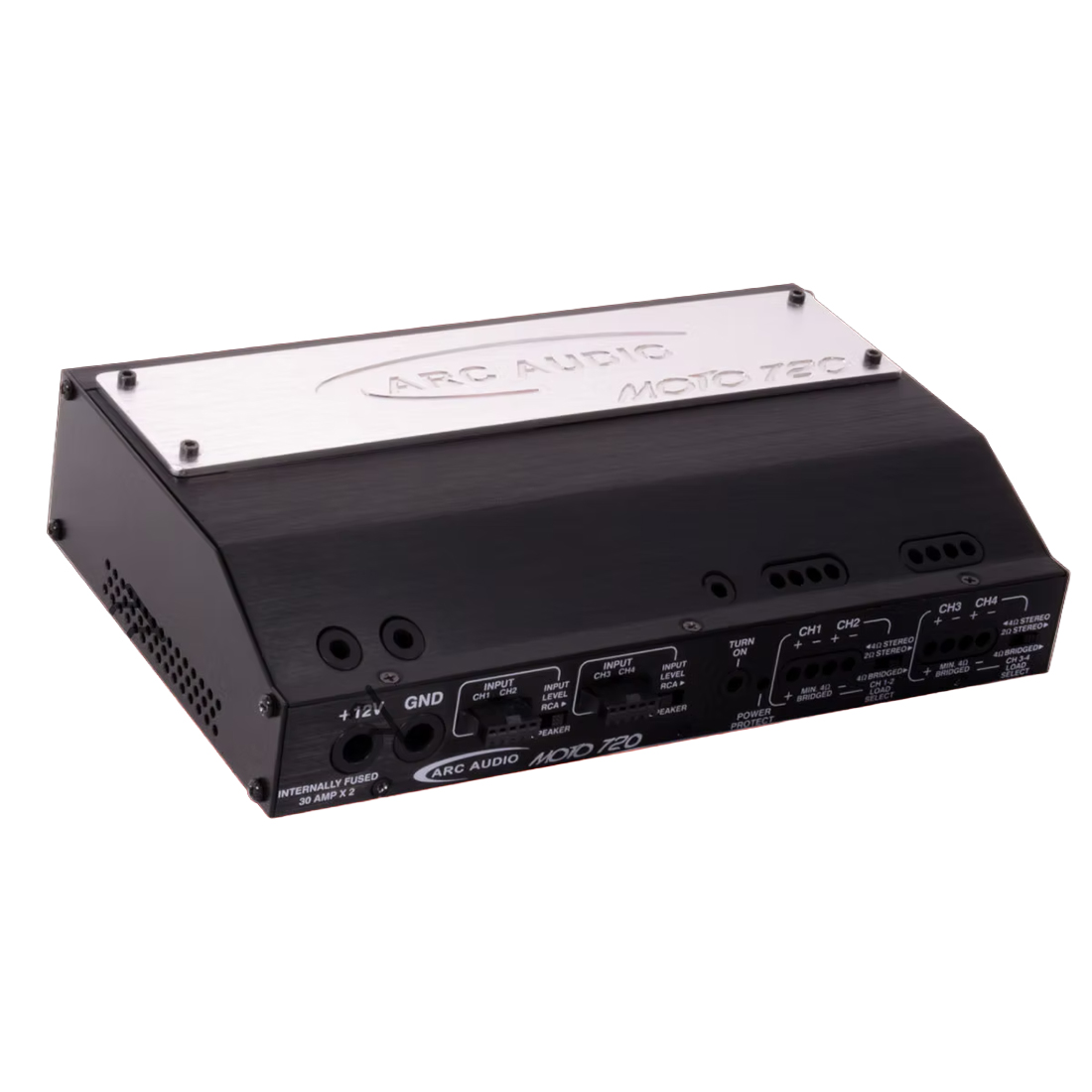

ARC Audio Compact 180x4 Channel Powersports Amplifier (refurb)


MSRP: $839.00
Manufacturer: ARC Audio
SKU: MOTO720/R

Features

  • Multi-Channel Amplifier (Four-Channels)
  • Microprocessor Class-D Design.
  • Designed And Engineered By Robert Zeff.
  • High-Frequency Power Supply Design For Improved Signal Transparency And Overall Sound Quality.
  • Built-In Internal Fan For Additional Cooling
  • Microprocessor Controlled Auto Sense Turn-On Technology (DC, Signal, Hard Trigger selections)
  • Full-Range Amplifier Design
  • PP Coated And Treated Design Components For The Highest Level Of Environmental Protection
  • Single Side Plug And Play (PNP) Connection Design.
  • Water Tight Direct Connect Speaker Terminals.
  • Balanced Differential Signal Input Design.
  • Audiophile Class-D Output Filter Networks.
  • Detailed Microprocessor Controlled Protection.
  • Large, High-Frequency Switching Power Supplies.
  • Differential Inputs allow for RCA and Speaker level inputs (Switch Selectable)
  • Fault Codes Storage Of The Last Protection Code Detected
  • High Signal To Noise Ratio Without Compromising Power Output.
  • Fully Balanced Input Stage Significantly Increases Flexibility
  • Ultra Low ESR, High Capacity Power Supply Storage capacitors.
  • Bridged Mode Auto Detect Turn-On Works With Most Chip Based OEM Head units.
  • Precision Filtering Isolates The Power supply Reducing Unwanted Interference In Radio Reception

Specs

4- Channels @ 4 Ohms 150 Watts
4-Channels @ 2 Ohms 180 Watts
2-Channel @ 4 Ohms (Bridged) 360 Watts (Bridged)
2-Channel @ 2-Ohms (Bridge) Not Recommended
Frequency Response 10Hz - 20kHz
Crossover Range 50Hz - 550Hz
Bass Boost No
Remote Level Control Included No
Input Sensitivity (Low) 200mV - 3.5V
Built in Fan Cooling Yes
Signal Input Connection Type Pigtail (PNP) Harness
Pigtail Harness Included Yes, RCA harness included
Signal Input Connection compatibility Direct connection to RCA Harness, PSM or MPAK wire harness kit
Fitment compatibility Aftermarket & Direct fit to OEM AMP locations on 2014 Streetglide and 2015+ Roadglides



Dimensions

L x W x H 8.125" x 5.43" x 1.8"
