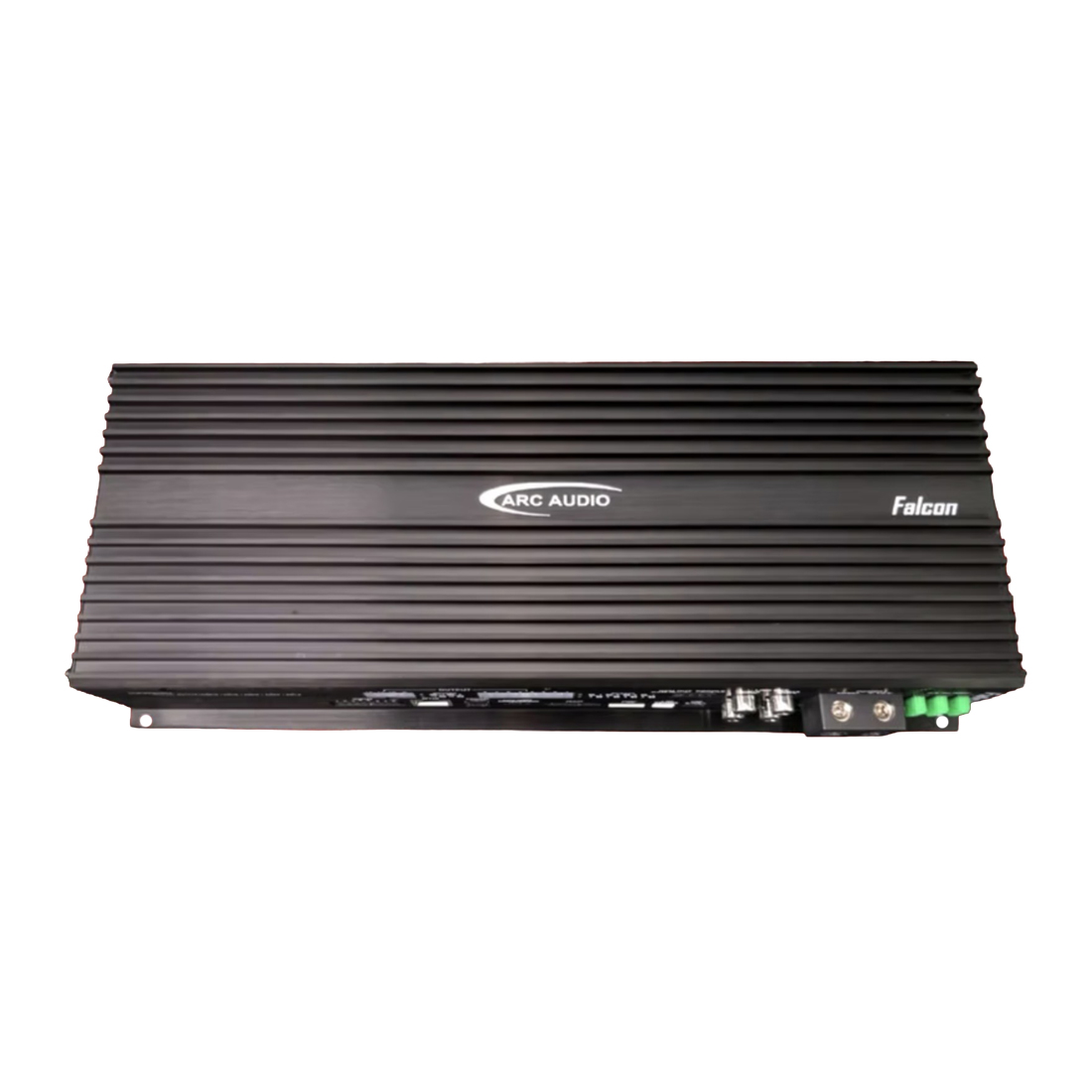

ARC Audio 12-Channel Class D Amplifier w/16-ch DSP

The ARC Audio Falcon DSP Amplifier delivers the perfect balance of power, flexibility, and precision tuning in one compact, installer-friendly chassis.
MSRP: $1799.00
Manufacturer: ARC Audio
SKU: FALCON

Features

  • Multi-Channel Compact Design
  • Amplified DSP Solutions
  • DNA Equipped
  • Designed and engineered in the USA
  • Powered by the ultra-capable Analog Devices ADAU1462 signal processor
  • Backed by dual AKM Velvet Sound™ 32-bit ADC and DAC stages
  • Capable of processing audio streams up to 192kHz / 32-bit
  • Includes the full suite of ARC’s Pro-Series tuning tools:
    • 444 bands of 1/3-octave or parametric EQ
    • ±20dB adjustment in 0.1dB increments
    • 1st- and 2nd-order all-pass filters
    • Output delay up to 40ms per channel
    • Per-channel output phase (0/180°)
    • Flexible input and output mixers
    • Per-channel output trim
    • Extensive crossover types and damping options
  • Fully compatible with iDatalink Maestro “AR” modules
  • Digital inputs include Optical (TOSLINK) and Coaxial S/PDIF

Specs

  • Total Channels (Amplified): 12 Channels
  • Total Channels (DSP): 16 Channels
  • Power @ 4-ohms Stereo: 12 x 75W
  • Power @ 2-ohms Stereo: 12 x 125W
  • Power @ 4-ohms Bridged: 6 x 250W
  • RCA Channlels Out: 4
  • RCA Voltage Out: Up to 8V
  • Fuse Rating: 3 x 30 Amp
  • Amp Operating Voltage: 8.0V - 17.7V
  • S/N Ratio (Analog): 108.4 dB
  • S/N Ratio (Digital): 126.2dB (with PDA engaged)
  • Frequency Response: 2Hz - 23.5kHz
  • Adjustable Class-D Switcihng Frequency
  • Built-in Fan Cooled
  • Input Channels (Analog): 8
  • Input Channels (Analog Type): Balanced (RCA / Speaker)
  • Optical Input
  • Digital Coaxial Input (Requires D.O.C. Adapter)
  • Digital Max Signal Rate: 192khZ/32Bit(Coaxial Input)
  • Start Stop Compliant to 4.5V
  • Auto-sense Turn-on (Signal & DC)
  • Compatible Controllers: LR1 / PSC
  • iData Maestro Compatible

Dimensions

  • 13.25" x 2"

Features

  • Multi-Channel Compact Design
  • Amplified DSP Solutions
  • DNA Equipped
  • Designed and engineered in the USA
  • Powered by the ultra-capable Analog Devices ADAU1462 signal processor
  • Backed by dual AKM Velvet Sound™ 32-bit ADC and DAC stages
  • Capable of processing audio streams up to 192kHz / 32-bit
  • Includes the full suite of ARC’s Pro-Series tuning tools:
    • 444 bands of 1/3-octave or parametric EQ
    • ±20dB adjustment in 0.1dB increments
    • 1st- and 2nd-order all-pass filters
    • Output delay up to 40ms per channel
    • Per-channel output phase (0/180°)
    • Flexible input and output mixers
    • Per-channel output trim
    • Extensive crossover types and damping options
  • Fully compatible with iDatalink Maestro “AR” modules
  • Digital inputs include Optical (TOSLINK) and Coaxial S/PDIF
