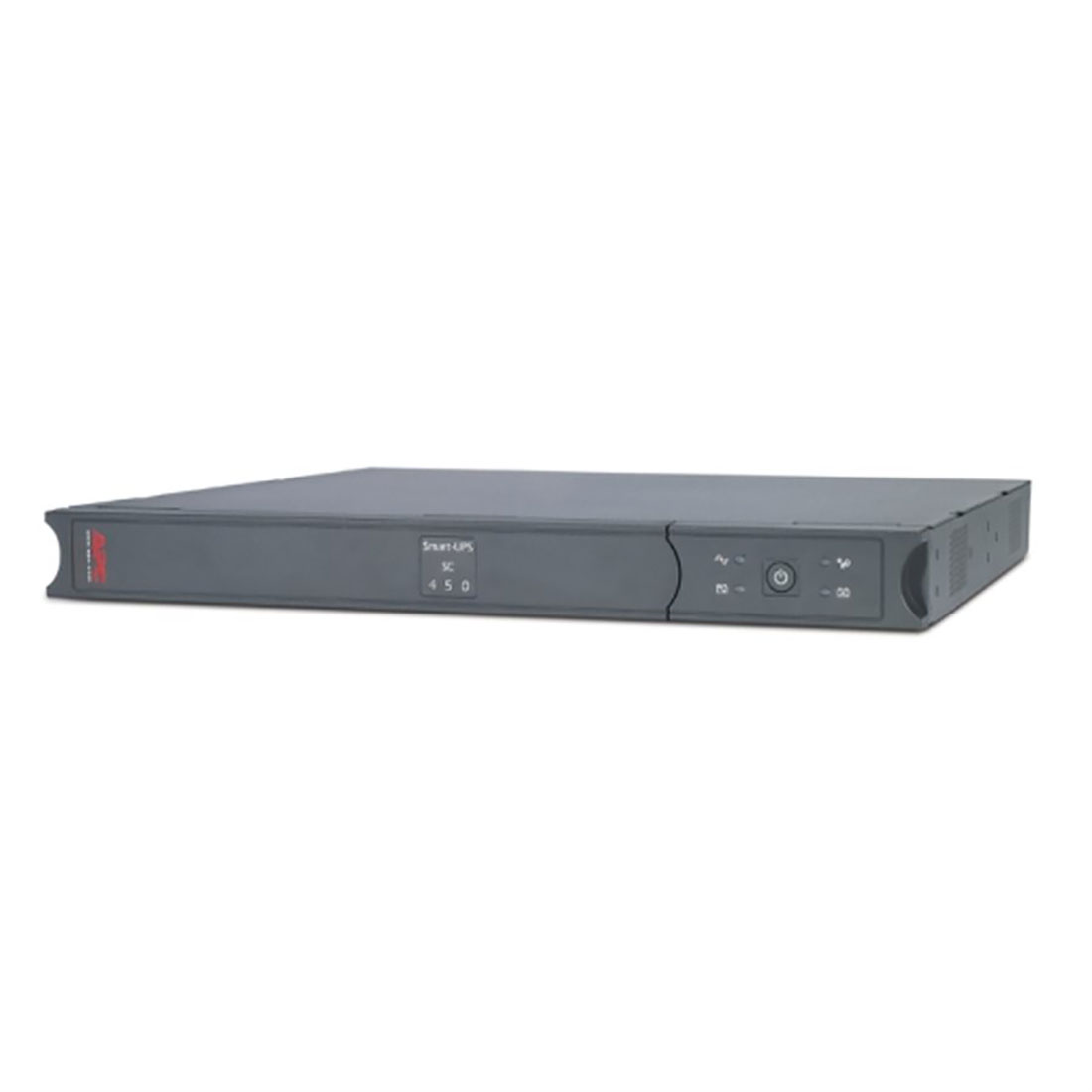

APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower

APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower
MSRP: $512.00
Manufacturer: APC
SKU: SC450RMI1U
Features
  • Network grade protection
  • Hot swap batteries
  • Multiple mounting methods
  • Automatic restart of loads after UPS shutdown
  • Disconnected battery notification
Specs
  • Output power capacity: 280 Watts / 450VA
  • Output Voltage Distortion: Less than 5 % at full load
  • Output Connections: (2) IEC Jumpers (Battery Backup), (4) IEC 320 C13 (Battery Backup)
  • Output Frequency (sync to mains): 47 - 53 Hz For 50 Hz nominal Sync to mains, 57 - 63 Hz For 60 Hz nominal Sync to mains
  • Nominal Output Voltage: 230V
  • Nominal Input Voltage: 230V
  • Input Connections: IEC 320 C14
  • Transfer Time: 4 ms typical : 8 ms maximum
  • Expected Battery Life (years): 3 – 5
  • Typical recharge time: 5 hours
  • Battery Charge Power: 22 Watts
  • Rack Height: 1U
Dimensions
  • Size (H x W x D): 1.73” x 17” x 15.1”
  • Weight: 22.44 lb.
  • Shipping Size (H x W x D): 6.5” x 18.7” x 23.2”
  • Shipping Weight: 25.9 lb.
What’s in the box
  • APC Smart-UPS SC 450VA 230V
  • CD with software
  • Rack mounting brackets
  • Smart UPS signaling RS-232 cable
  • User manual
