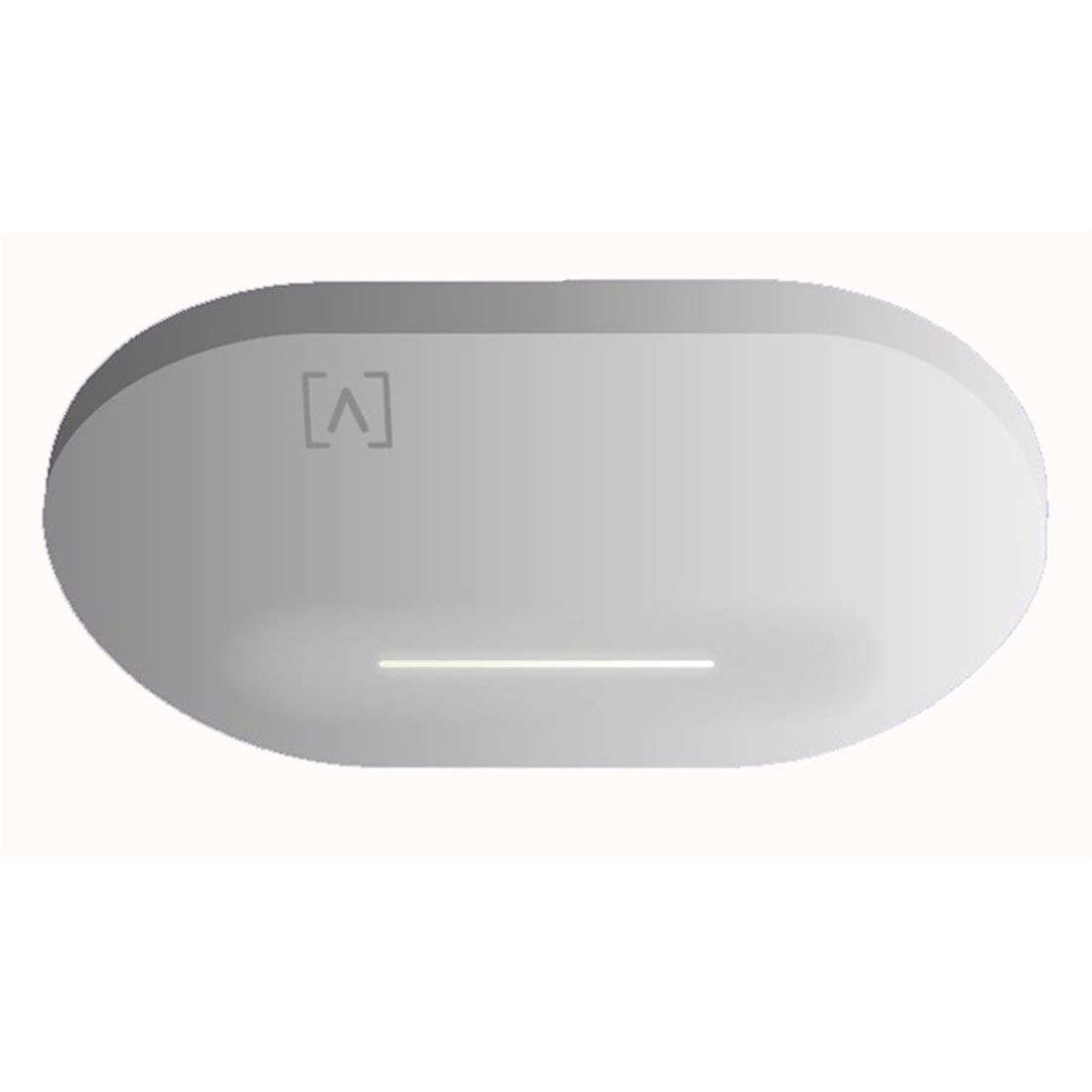

Alta Labs WiFi 6, 2x2, Cloud Managed, Enterprise Access Point


MSRP: $164.00
Manufacturer: ALTA LABS
SKU: AP6
Related Products
Picture of Ethereal 8-Pin Cat 6 RJ45 Crimp Connector (50 pk)

Ethereal 8-Pin Cat 6 RJ45 Crimp Connector (50 pk)

C6T
Ethereal 8-Pin Cat 6 RJ45 Crimp Connector (50 pk)
MSRP: $46.99
Picture of Ethereal Dual Modular Crimping Tool

Ethereal Dual Modular Crimping Tool

CS-CRIMPTOOL
Ethereal Dual Modular Crimping Tool
MSRP: $42.99
Picture of Quest 3' Cat 6 Patch Cable Booted (blue)

Quest 3' Cat 6 Patch Cable Booted (blue)

NPC-6203
Quest 3' Cat 6 Patch Cable Booted (blue)
MSRP: $3.43
Features
  • Superior range and performance
  • Scalable cloud-based management
  • Mobile app
  • High performance WiFi 6
  • Multi-password authentication
  • DPI engine
  • Hotspot functionality
  • Quick changes and scanning
  • Wireless network color coding
  • SSID broadcasting flexibility
  • Customizable dashboard
  • Status snapshots
  • Device cards
What’s in the Box
  • (1) Alta Labs AP6

Special Order Only

Specs

Network interfaceEthernet, WiFi, Bluetooth
Management Interface(1) GbE RJ45 Port
ButtonsReset/Factory Reset
LEDBlue/White
Power MethodPoE+
Power SupplyPoE+ enabled network switch or 48V, 0.5A PoE Adapter (optional)
Supported Voltage Range42.5-57V DC
Max. Power Consumption20W
Max. Transmit Power2.4 GHz23 dBm @2NSS, 5 GHz23 dBm @2NSS
MIMO5 GHz2 x 2, DL MU-MIMO, DL/UL MU-OFDMA / 2.4 GHz2 x 2, DL/UL MU-OFDMA / Explicit TX beam-forming
Throughput Rate2.4 GHzUp to 573 Mbps, 5 GHzUp to 2.4 Gbps
Antenna Gain2.4 GHzUp to 4.0 dBi, 5 GHzUp to 4.1 dBi
MountingWall, ceiling, drop-ceiling, table top
WiFi Standards802.11a/b/g/n/ac/ax (WiFi4/WiFi5/WiFi6)
Roaming802.11r/k/v
Wireless SecurityWPA-PSK, WPA-Enterprise (WPA2/WPA3)
Multi-BSSIDSupported
Concurrent Clients300+



Dimensions

Size7.5” x 4.9” x 1.25”
Weight0.9 lbs.



Features
  • Superior range and performance
  • Scalable cloud-based management
  • Mobile app
  • High performance WiFi 6
  • Multi-password authentication
  • DPI engine
  • Hotspot functionality
  • Quick changes and scanning
  • Wireless network color coding
  • SSID broadcasting flexibility
  • Customizable dashboard
  • Status snapshots
  • Device cards
What’s in the Box
  • (1) Alta Labs AP6

Special Order Only
