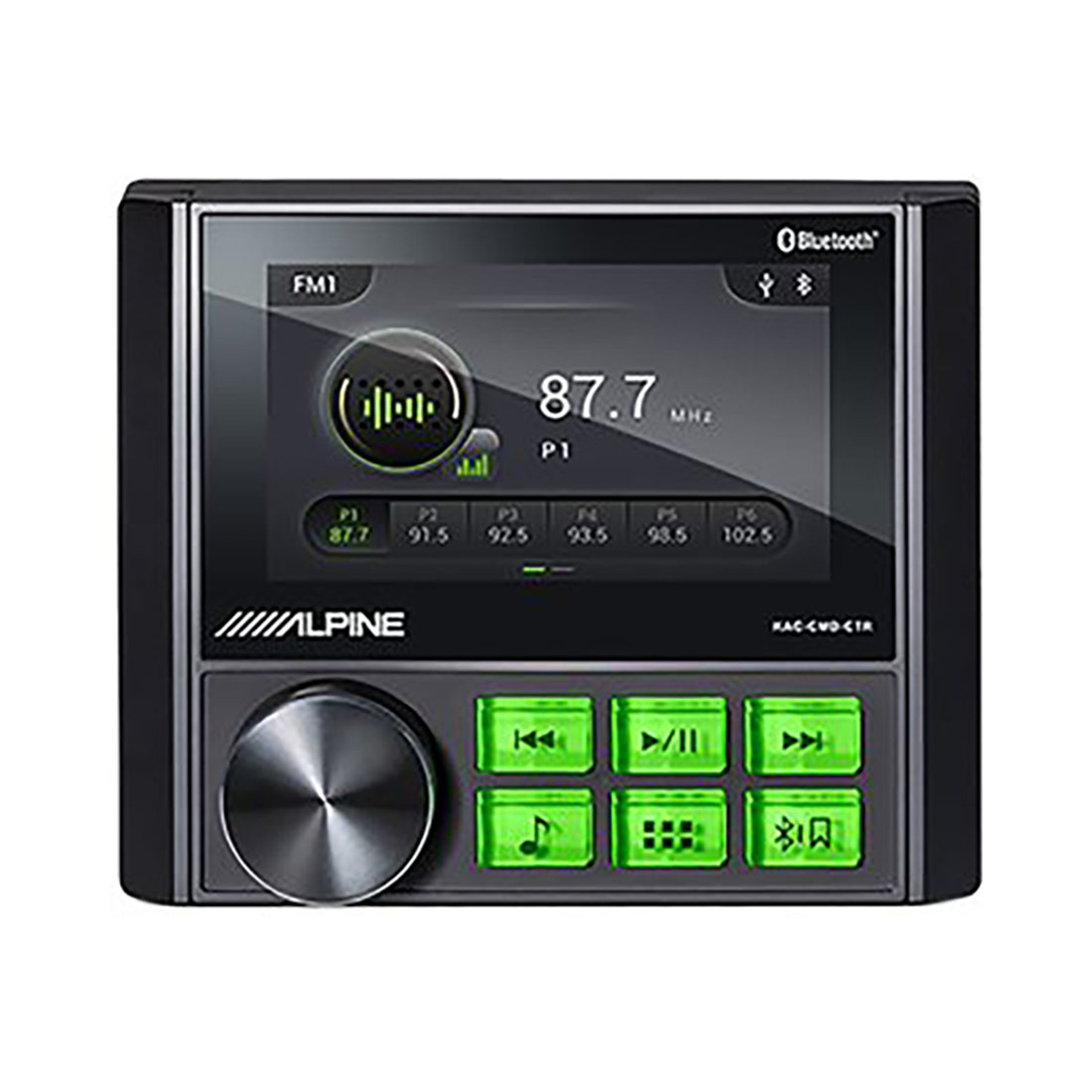

Alpine Weather-Resistant Digital Media Receiver w/4.3" Display for UTV & Powersports Applications

The KAC-CMD-CTR offers Bluetooth® streaming, IP66-rated weather resistance, and a built-in amplifier for UTV and powersports audio systems, all on a large, full-color 4.3" display.
MSRP: $840.00
Manufacturer: Alpine
SKU: KAC-CMD-CTR

Features

  • 4.3-inch square full-color display with a retro-inspired design (non-touchscreen)
  • Universal compatibility with UTVs, ATVs, and other powersports and recreational vehicles
  • Intuitive, easy-to-use controls with premium design and button feel
  • Large buttons and rotary knob designed for glove-friendly use
  • IP66-rated weather resistance protects against dust, water, and UV rays
  • Superior screen finish with high brightness designed for ultimate visibility and clarity even in the sun
  • Bluetooth® Hands-Free and Audio Streaming for wireless connectivity
  • Made for iPhone® and iPod® & works with Android (via Bluetooth® streaming)
  • USB and AUX inputs for versatile music playback
  • Built-in 17W RMS x 4-channel amplifier for powerful sound output
  • 7-band parametric EQ with HP/LP filters for optimal audio tuning
  • Three 4V RCA preouts (Front, Rear, Subwoofer) for system expandability
  • Subwoofer control for fine-tuned bass adjustments
  • Camera input for integration with a backup camera
  • Five-level dimmable illumination for varying light conditions
  • Universal rear U-bracket for easy installation in a 3” round gauge hole
  • Supports multiple audio formats: AAC, FLAC, MP3, WAV, and more
  • Operating temperature range: -20°C to 60°C

What's in the Box

  • KAC-CMD-CTR Multimedia Receiver
  • Power Harness
  • U-Bracket and Mounting Screws
  • Owner’s Manual
  • Registration Card
  • Warranty Information



Specs

  • Screen Size: 4.3 inches
  • Screen Resolution: 800 x 480 pixels
  • Inputs: 1 USB, 1 Aux, 1 Camera
  • Outputs: 3 RCA Preouts (Front, Rear, Subwoofer)
  • Built-in Amplifier: 17W RMS x 4 channels
  • EQ: 7-band parametric with HP/LP filters
  • Audio Playback Formats: AAC, FLAC, MP2, MP3, M4A, OGG, WAV, WMA
  • Bluetooth: 5.2
  • Voltage Range: 9.5V – 16.5V DC
  • Operating Temperature: -20°C to 60°C
  • Weather Rating: IP66
Product Files
OTHER FILES
