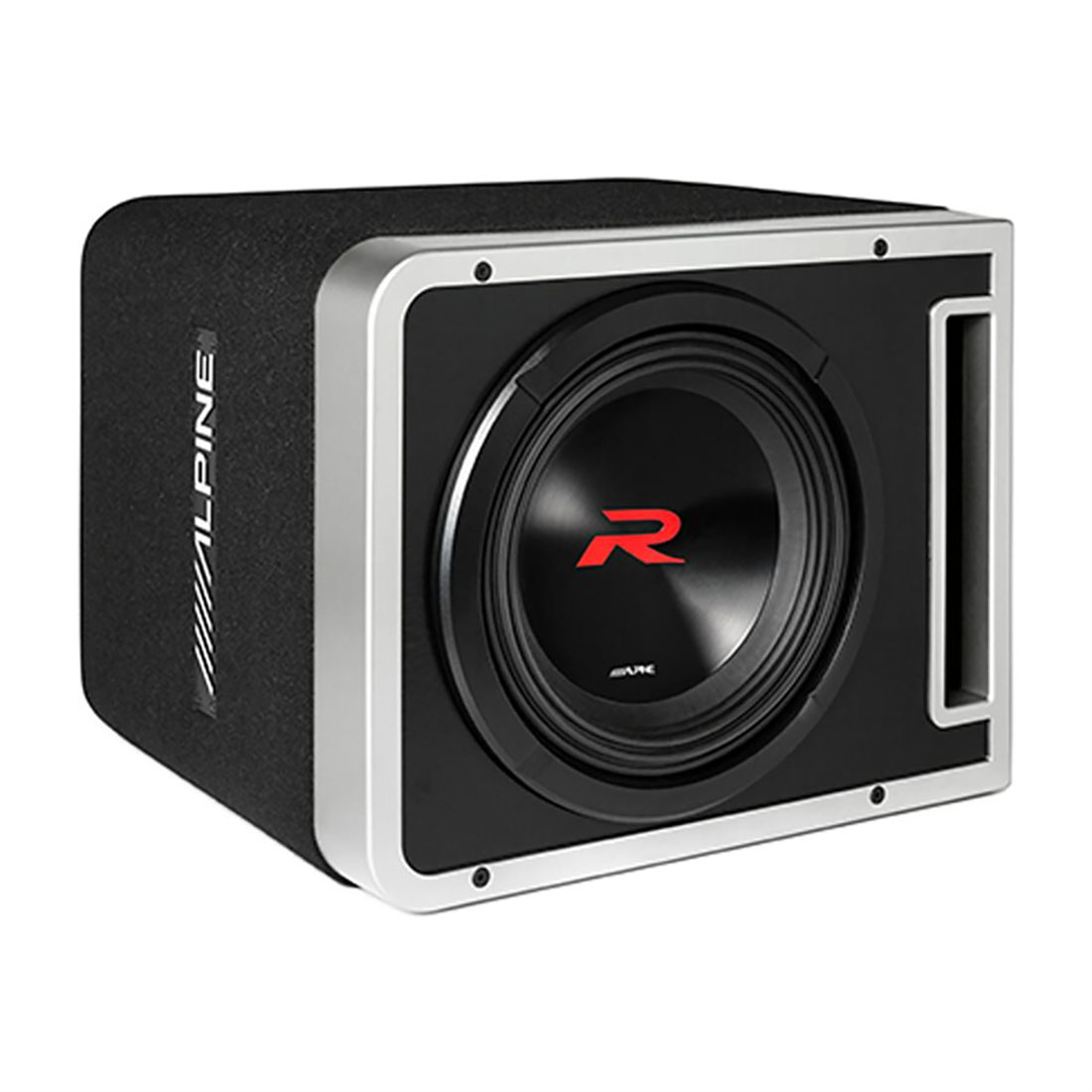

Alpine Single 10" Alpine Halo R-Series Preloaded Subwoofer Enclosure with ProLink

Groundbreaking Alpine Halo design with next-generation R-Series Subwoofers for more accurate and authoritative bass.
MSRP: $550.00
Manufacturer: Alpine
SKU: R2-SB10V
Features
  • Groundbreaking Alpine Halo Design
  • ProLink ported enclosure design
  • Polypropylene/Ceramic Composite Dust Cap
  • Kevlar Reinforced Pulp Cone High-Performance subwoofers
  • High-Amplitude Multi-Roll (H.A.M.R.) Surround
  • Large Double-Stacked Magnets
  • CARB compliant 3/4-inch MDF construction
  • Premium black carpet
  • Silver Alpine embossed side logo badge
  • Brushed aluminum finished metallic front baffle
  • Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)
What’s in the box
  • Vented Cabinet with preloaded R2-W10D4 10” R-Series subwoofer
  • Warranty Information
  • Online product registration information

Get a 2025 Alpine Product Catalog — Add it to your order now

Specs

750W RMS
2250W Peak Power Handling
Frequency Response26Hz-200Hz
Sensitivity (1W/1m)82.3dB
Dual 4 ohms Voice Coils Wired in Parallel for a 2 ohms Load (Compatible with R-A75M)
Voice Coil65mm
X-Max20mm
Magnet Weight123oz
12 Gauge OFC Speaker Box Wire
CTA-2031 Compliant



Dimensions

Size (W x H x D)16” x 12.6825” x 14.5”
