Alpine Multi-Camera Touchscreen Selector

Name: Alpine Multi-Camera Touchscreen Selector
SKU: KCX-C250MC
Availability: InStock

Enables connection of up to three Alpine direct connection cameras. Alpine front, rear and side cameras can be controlled from the head unit screen thanks to the KCX-C250MC.

MSRP: $230.00

Manufacturer: Alpine

SKU: KCX-C250MC

Overview
Attachments

Overview

Multi-camera selector interface for use with select Alpine receivers
3 proprietary inputs: compatible with up to three select Alpine Direct cameras
Select camera view from receiver's touchscreen
Includes required video and power cables
NOTE: The KCX-C250MC is not compatible with Alpine's DVR dash-cams.

Camera Compatibility:

Choose from the Alpine HCE-C1100, HCE-C125, HCE-C2100RD, HCE-C252RD, HCE-C257FD, HCE-C2600FD, or HCE-TCAM1-WRA (all sold separately).

Proprietary Connectors:

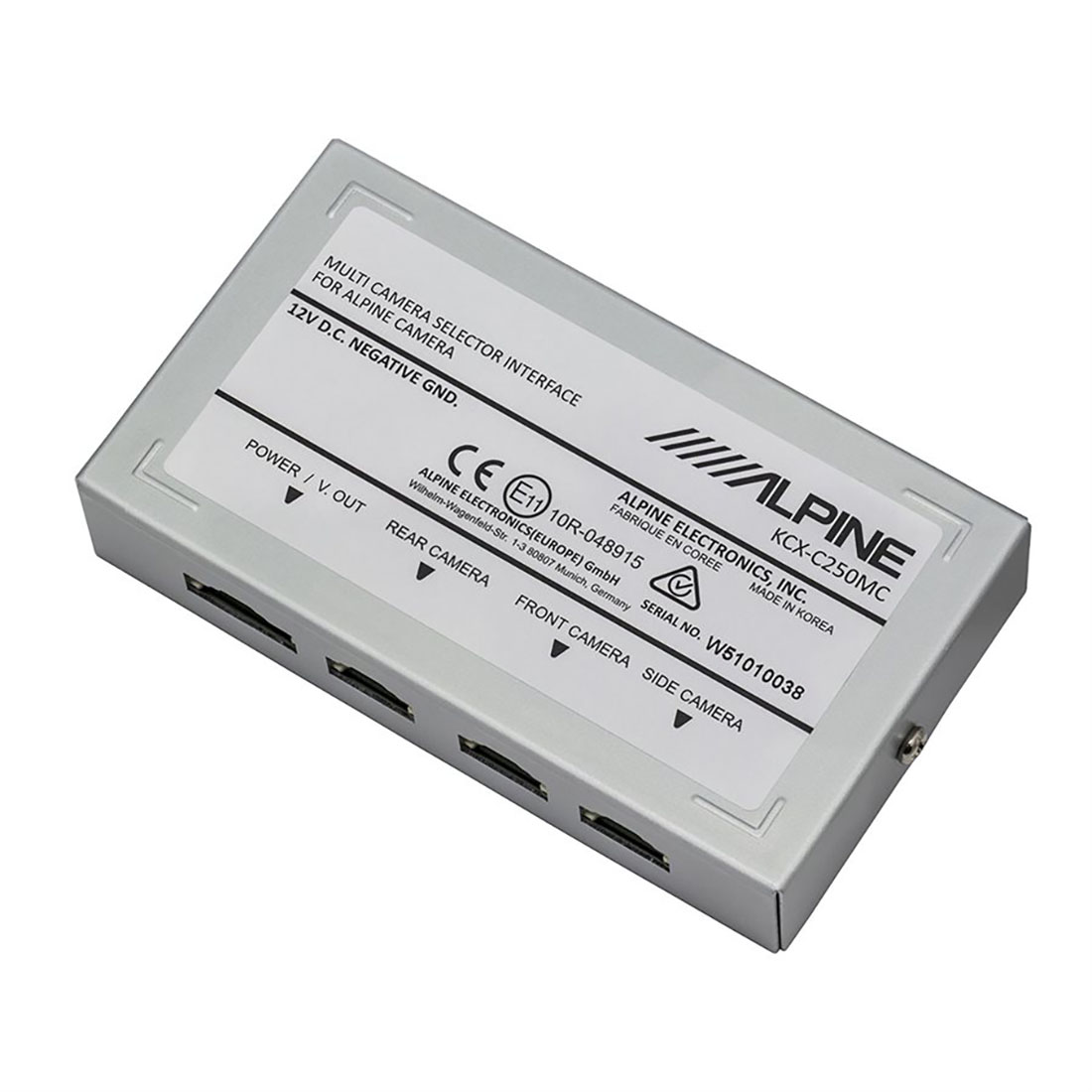

The KCX-C250MC is fitted with 3 proprietary camera inputs (labeled "Rear Camera", "Front Camera", and "Side Camera") which will be used to plug in your compatible Alpine camera system's proprietary harness. The KCX-C250MC is also fitted with a proprietary video output connectors (labeled "Power/V.Out") which is used to connect the multi-camera selector interface to your compatible Alpine navigation receiver's proprietary camera input, using the included wiring harness.

Head Unit Compatibility:

The Multi-Camera Selector Interface is compatible with 2016-up Alpine 10" Restyle navigation receivers (X110-SLV for 2014-up Chevrolet Silverado / X110-SRA for 2014-up GMC Sierra), 9" Restyle navigation receivers (X109D for various trucks and SUVs), 8" navigation receivers (X108U for various trucks and SUVs), and 7" navigation receivers (INE-W967HD, INE-W977HD, or INE-W987HD for universal applications).

Product Files

MANUALS

KCX-C250MC Manual

OTHER FILES

Alpine 2026 Catalog
