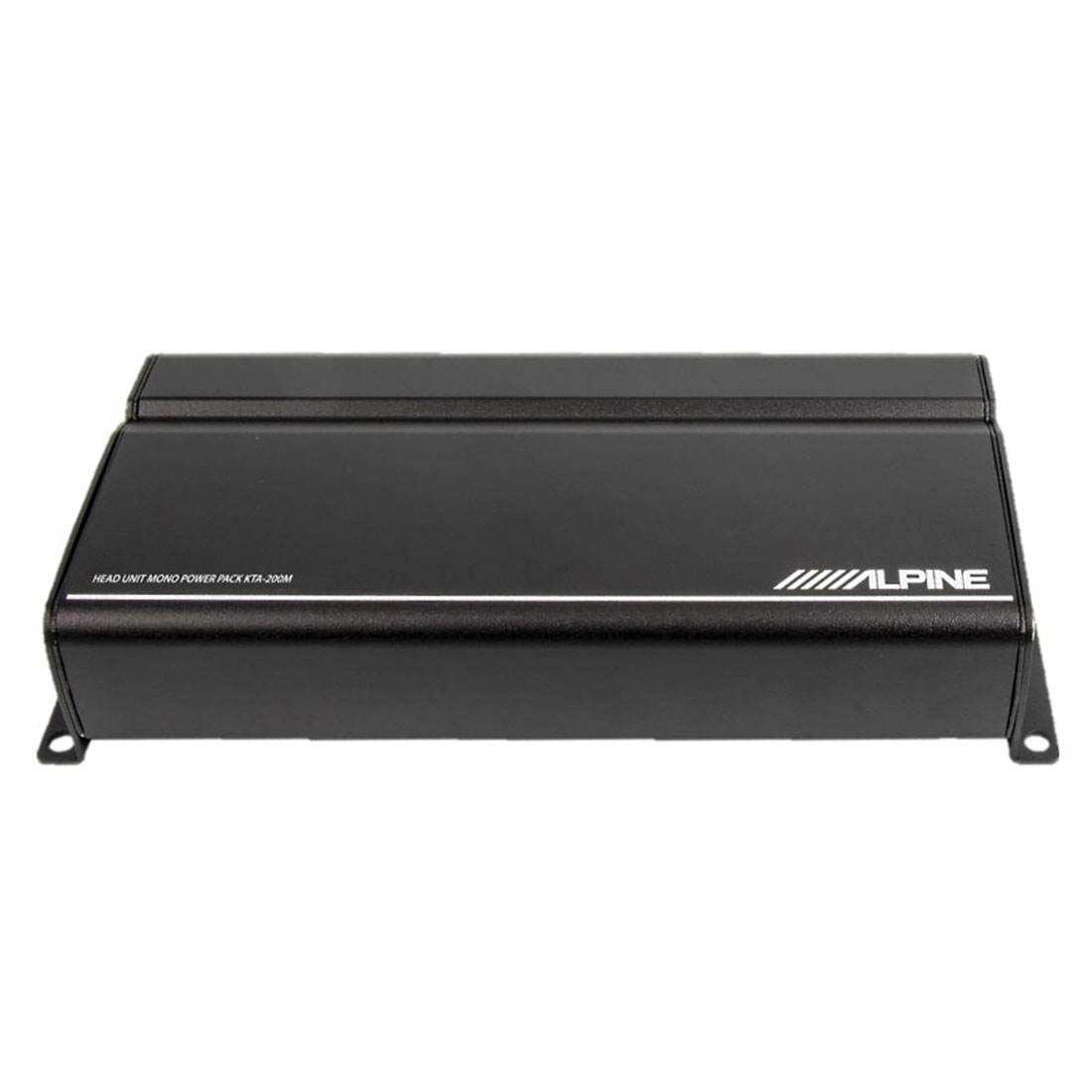

Alpine Mono Power Pack Amplifier with PowerStack Capability

The KTA-200M Mono Power Pack Amplifier produces 400-watts of Alpine’s Exclusive Dynamic Peak Power for big subwoofer power in a small space.
MSRP: $300.00
Manufacturer: Alpine
SKU: KTA-200M

Overview

  • CTA-2006
  • PowerStack capable with the Alpine iLX-W650
  • Alpine’s Class D Amplifier Circuit w/ Dynamic Peak Power (DPP)
  • 100W x 1 RMS (4?, 14.4V, =1% THD+N)
  • 200W x 1 RMS (2?, 14.4V, =1% THD+N)
  • 400W x 1 DPP (2?, 14.4V, =1% THD+N)
  • >85dB S/N (ref. 1W into 4?)
  • =0.1% THD+N (ref. 10W into 2?)
  • Single-side 22-pin connector
  • RCA inputs (selectable, Low range=0.2-4V)
  • Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)
