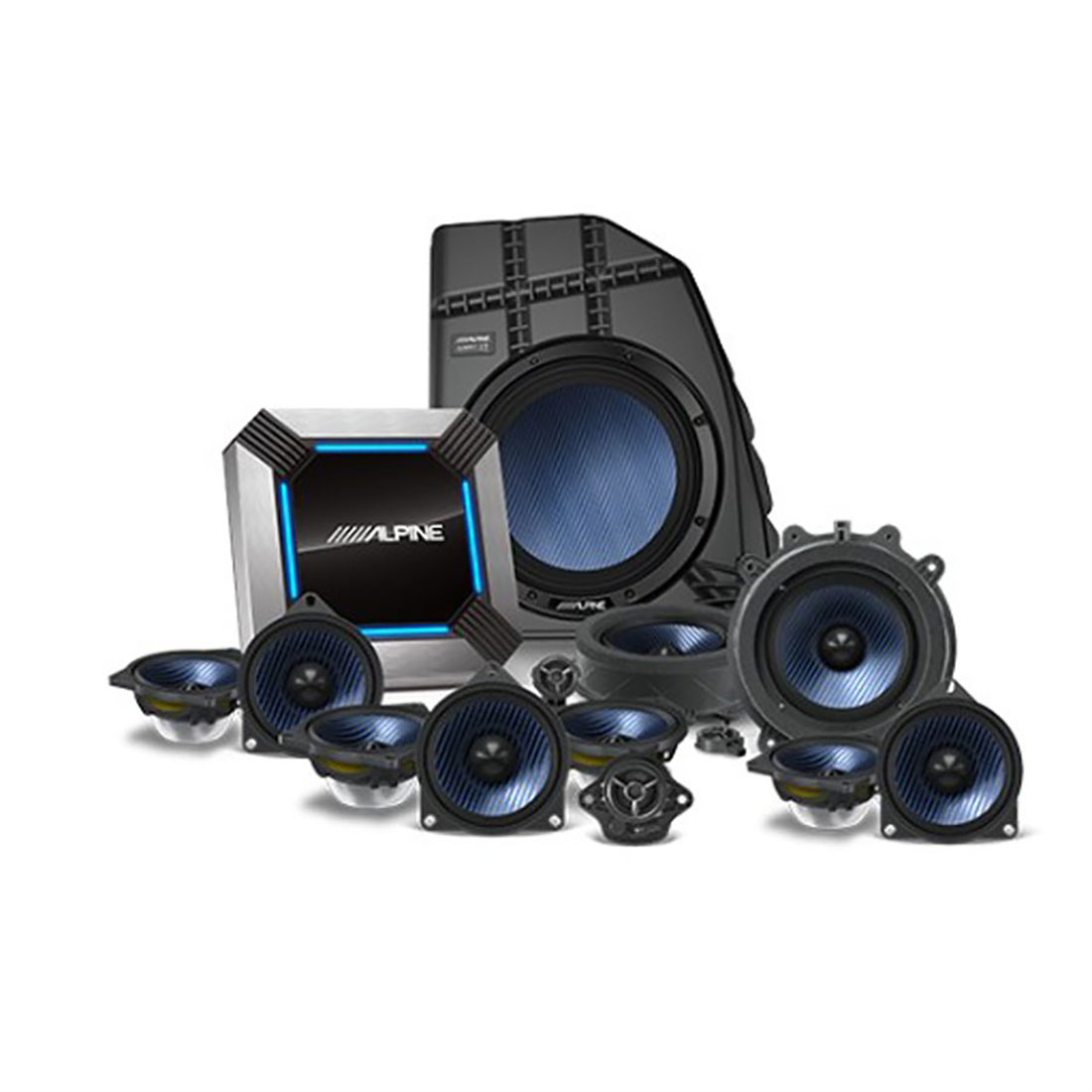

Alpine 13-Speaker Sound System, 2022 Tesla Model Y

Unleash the full power and potential of your audio experience with the industry's first complete sound system kit designed to fit Tesla Model Y.
MSRP: $2999.95
Manufacturer: Alpine
SKU: PSS-TSLA-22Y/KIT

Features

  • Tesla Model Y Sound System with H-Res Audio Certified Speakers
  • Adds 12 Hi-Res Speakers, a 10” Sealed Subwoofer, and 12-Channel DSP/Amplifier
  • Direct-Fit installation in 2022-23 Tesla Model Y
  • Replaces the factory Tesla speakers with little to no cutting or modification required
  • Lightweight and rigid hybrid blue carbon fiber speaker cone material
  • Alpine proprietary high amplitude multi-roll surround (HAMR surround) technology
  • Sound system pre-tuned and optimized for the Tesla cabin environment
  • Ultra-efficient amplifier (uses 1 mile of range per hour at full volume)
  • Optimized for EV low voltage battery range (12V-16V)
  • 10” EV-Series Subwoofer for Tesla Model Y
  • Cone Material: Woven Carbon Fiber Hybrid
  • Magnet Material: Strontium Ferrite
  • Surround: HAMR Multi-Roll
  • Terminals: Gold Plated

What’s in the Box

  • (2) 6.5” Midrange Component Front Door Speakers with 1” Tweeters
  • (2) 4” Midrange Rear Door Speakers
  • (2) 4” Midrange Rear Deck Speakers (some modification may be required to rear deck)
  • (3) 4” Midrange Center Dash Speakers with 1” Center Dash Tweeter
  • (1) 10” Sealed Subwoofer
  • (1) 12-Channel Digital Sound Processor with Built-in 12-Channel Amplifier
  • (1) Vehicle-Specific Harness for 2022 Tesla Model Y

Please note: item is not compatible with 2023 and 2024 Tesla Model Y vehicles equipped with the factory premium audio system

Specs

10" Sealed Subwoofer 200W RMS
12-Channel Amplifier/DSP 50W RMS x 6, 25W RMS x 4, 100W RMS x 2 or 200W RMS x 1 Bridged
6.5” Midrange Component Front Door Speakers 50W RMS / 200W Peak
4” Midrange Center Dash Speakers 40W RMS / 160W Peak
4” Midrange Rear Door/Rear Deck Speakers 40W RMS / 160W Peak
Subwoofer Peak Power Handling 500W
Subwoofer RMS Power Handling 100W
Nominal Impedance 4O + 4O
Frequency Response 25Hz-300Hz
Sensitivity 86dB
