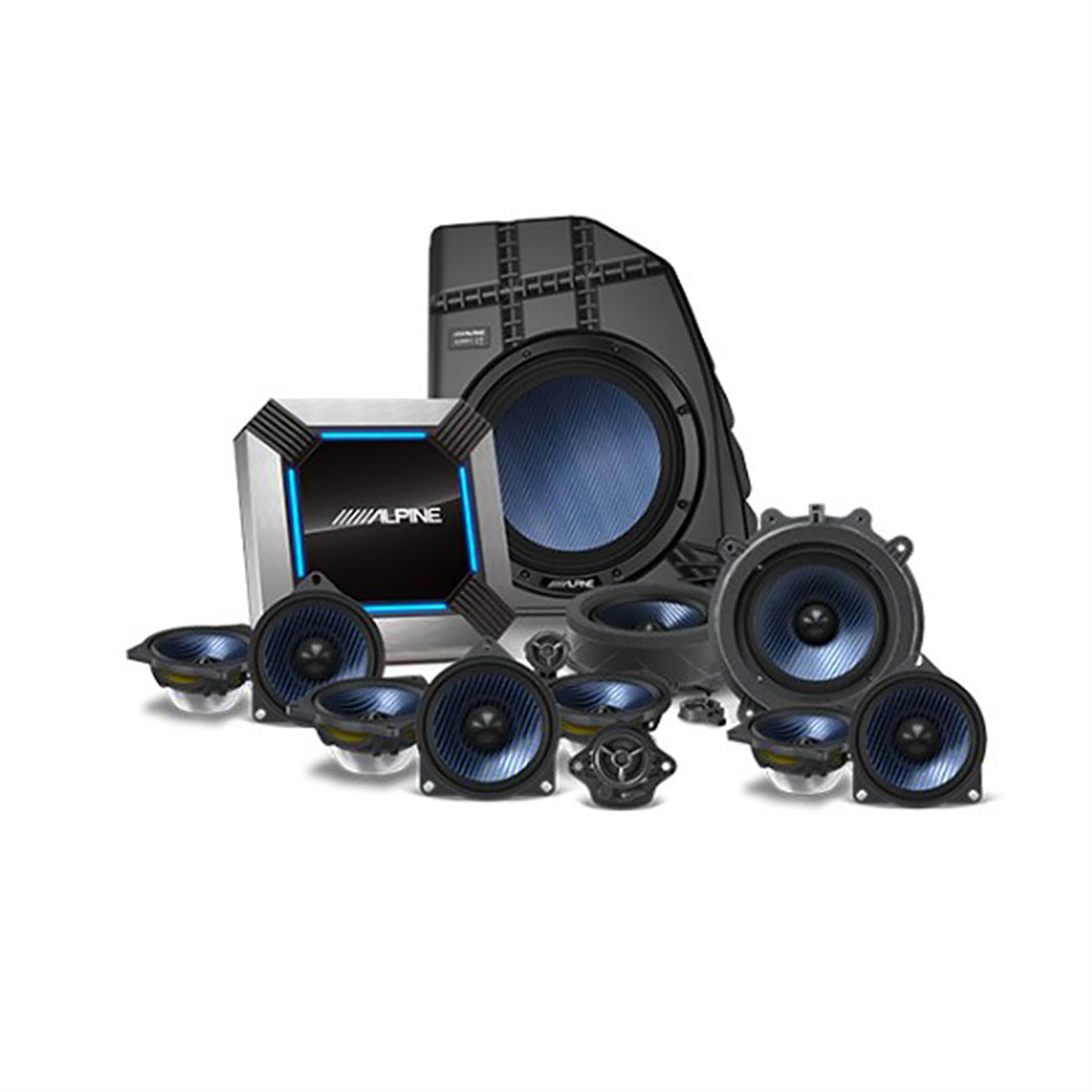

Alpine 13-Speaker Sound System, 2020-21 Tesla Model Y

Designed specifically to fit 2020-21 Tesla Model Y, the PSS-TSLA-21Y/KIT is a complete plug-and-play sound system that boasts the perfect combination of power and efficiency. Designed with the Tesla driver in mind, this kit elevates the performance of your sound system while maintaining the integrity of your interior.
MSRP: $2999.95
Manufacturer: Alpine
SKU: PSS-TSLA-21Y/KIT

Features

  • Tesla Model Y Sound System with Hi-Res Audio Certified Speakers
  • Adds 12 Hi-Res Speakers, a 10” Sealed Subwoofer, and 12-Channel DSP/Amplifier
  • Direct-fit Installation in 2020-21 Tesla Model Y
  • Replaces the Factory Tesla Speakers with Little to No Cutting or Modification Required
  • Lightweight and Rigid Hybrid Blue Carbon Fiber Speaker Cone Material
  • Alpine Proprietary High Amplitude Multi-Roll Surround (HAMR Surround) Technology
  • Sound System Pre-Tuned and Optimized for the Tesla Cabin Environment
  • Ultra-efficient Amplifier (Uses 1 Mile of Range per Hour at Full Volume)
  • Optimized for EV Low Voltage Battery Range (12V-16V)
  • 10” EV-Series Subwoofer for Tesla Model Y
  • Cone Material: Woven Carbon Fiber Hybrid
  • Magnet Material: Strontium Ferrite
  • Surround: HAMR Multi-Roll
  • Terminals: Gold Plated

What’s in the Box

  • (2) 6.5” Midrange Component Front Door Speakers with 1” Tweeters
  • (2) 4” Midrange Rear Door Speakers
  • (2) 4” Midrange Rear Deck Speakers (some modification may be required to rear deck)
  • (3) 4” Midrange Center Dash Speakers with 1” Center Dash Tweeter
  • (1) 10” Sealed Subwoofer
  • (1) 12-Channel Digital Sound Processor with Built-in 12-Channel Amplifier
  • (1) Vehicle-Specific Harness for 2020-21 Tesla Model Y



Specs

10" Sealed Subwoofer 200W RMS
12-Channel Amplifier/DSP 50W RMS x 6, 25W RMS x 4, 100W RMS x 2 or 200W RMS x 1 Bridged
6.5” Midrange Component Front Door Speakers 50W RMS / 200W Peak
4” Midrange Center Dash Speakers 40W RMS / 160W Peak
4” Midrange Rear Door/Rear Deck Speakers 40W RMS / 160W Peak
Subwoofer Peak Power Handling 500W
Subwoofer RMS Power Handling 100W
Nominal Impedance 4O + 4O
Frequency Response 25Hz-300Hz
Sensitivity 86dB
