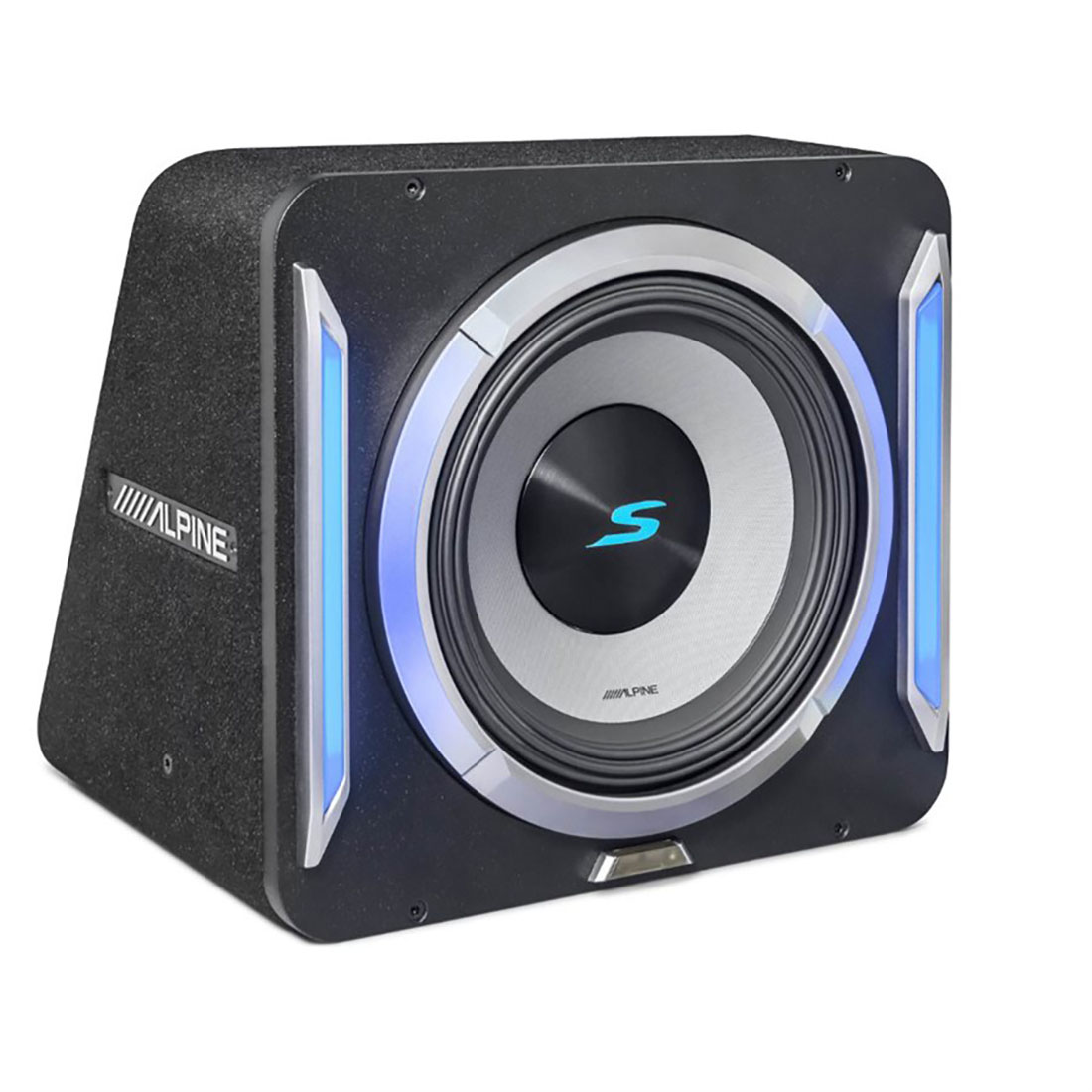

Alpine 12" Wedge Subwoofer Design Sealed Halo with RGB Lighting

This 12-inch wedge style subwoofer enclosure seamlessly blends style, performance, and expandability, delivering powerful bass with a visual RGB lighting experience.
MSRP: $450.00
Manufacturer: Alpine
SKU: S2-SB12
Features
  • S-Series pre-loaded subwoofer wedge enclosures that feature an integrated RGB lighting system and multi-link capable design
  • With the linking feature you can build a bass system for your vehicle step by step
  • Subwoofer features an optimized wedge shape
  • Enclosure has multi-link capabilities and a visual lighting experience
  • Preloaded subwoofer wedge enclosure feature a 12” S2-SB12 option that are pre-loaded with the Next-Generation S-series subwoofers
  • Subwoofers have a carbon fiber poly propylene cone with a ceramic/polypropylene composite dust cap that contributes to a lightweight but rigid subwoofer that produces high output and low distortion during play
  • High-Amplitude Multi-Roll  surround is included in the subwoofer for maximum output
  • Designed for optimal playback
  • Pre-wired RGB light integration located in the enclosure trim bars
  • Array of color options controlled with an RF remote
  • The enclosures feature dual 4 voice coils wired in parallel for a 2? load and are optimized for Alpine’s S-Series or R-Series Mono-Powered Amplifiers

Specs

Preloaded 12” S-Series Subwoofer (S2-W12D2)
Sealed wedge enclosure design
Twist-lock surround ring
RGB trim bars
Plug-and-play lighting system
RF Remote included
Carbon Fiber Poly Propylene Cone (CFPP) with cubic etch top layer
High-Amplitude Multi-Roll (HAMR) Surround
Metal mesh grille
Nominal Impedance2
Dual 4 voice coils wired in parallel for a 2 load
Compatible with S-Series or R-Series Mono-Powered Amplifiers
Optional 12” Linking Bracket for multi-link application (compatible with KTX-LK12)
Frequency response23-215Hz
600W RMS Power Handling
